Front Fender: Service and Repair

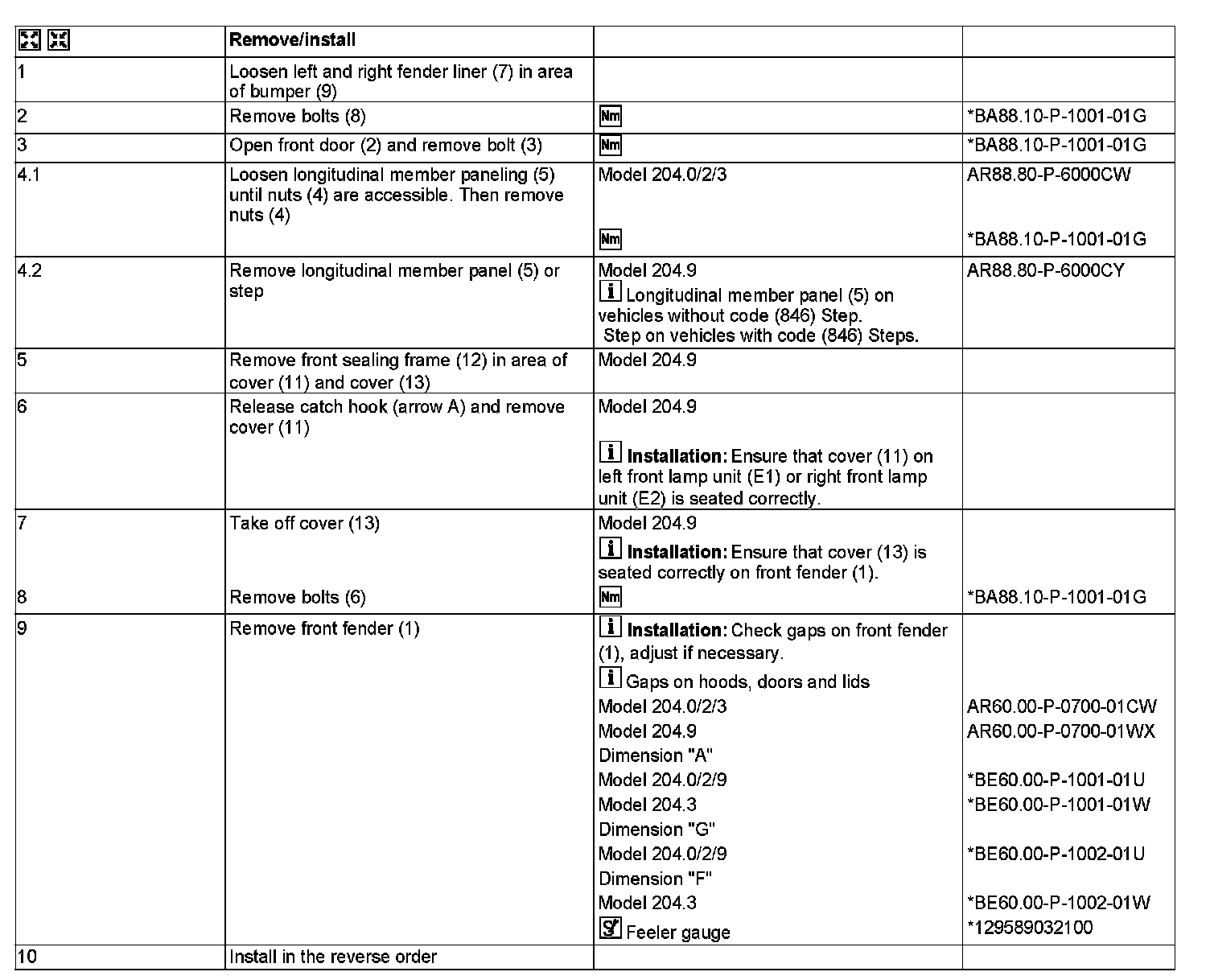

AR88.10-P-1000CW Remove/Install Front Fenders
MODEL 204.0 /2 /3 /9





Shown on model 204.0

1 Front fender
2 Front door
3 Screw
4 Nut
5 Longitudinal member paneling
6 Screw
7 Fender liner
8 Bolts
9 Bumper
10 Guide pin

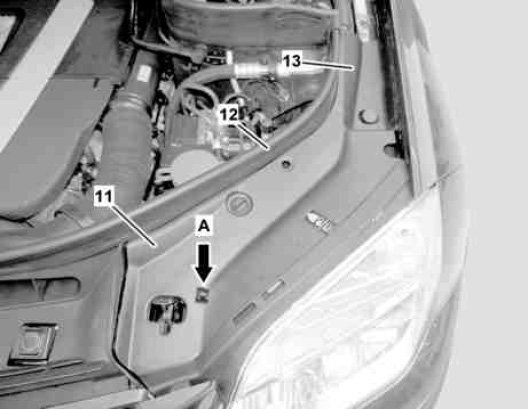

Shown on model 204.9

11 Cover
12 Front sealing frame
13 Cover

























129 589 03 21 00
Feeler gauge
