Home >> Mercedes Benz >> 2012 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Hood >> Hood Hinge >> Service and Repair

Hood Hinge: Service and Repair



AR88.40-P-3060CW Remove/Install hood hinge

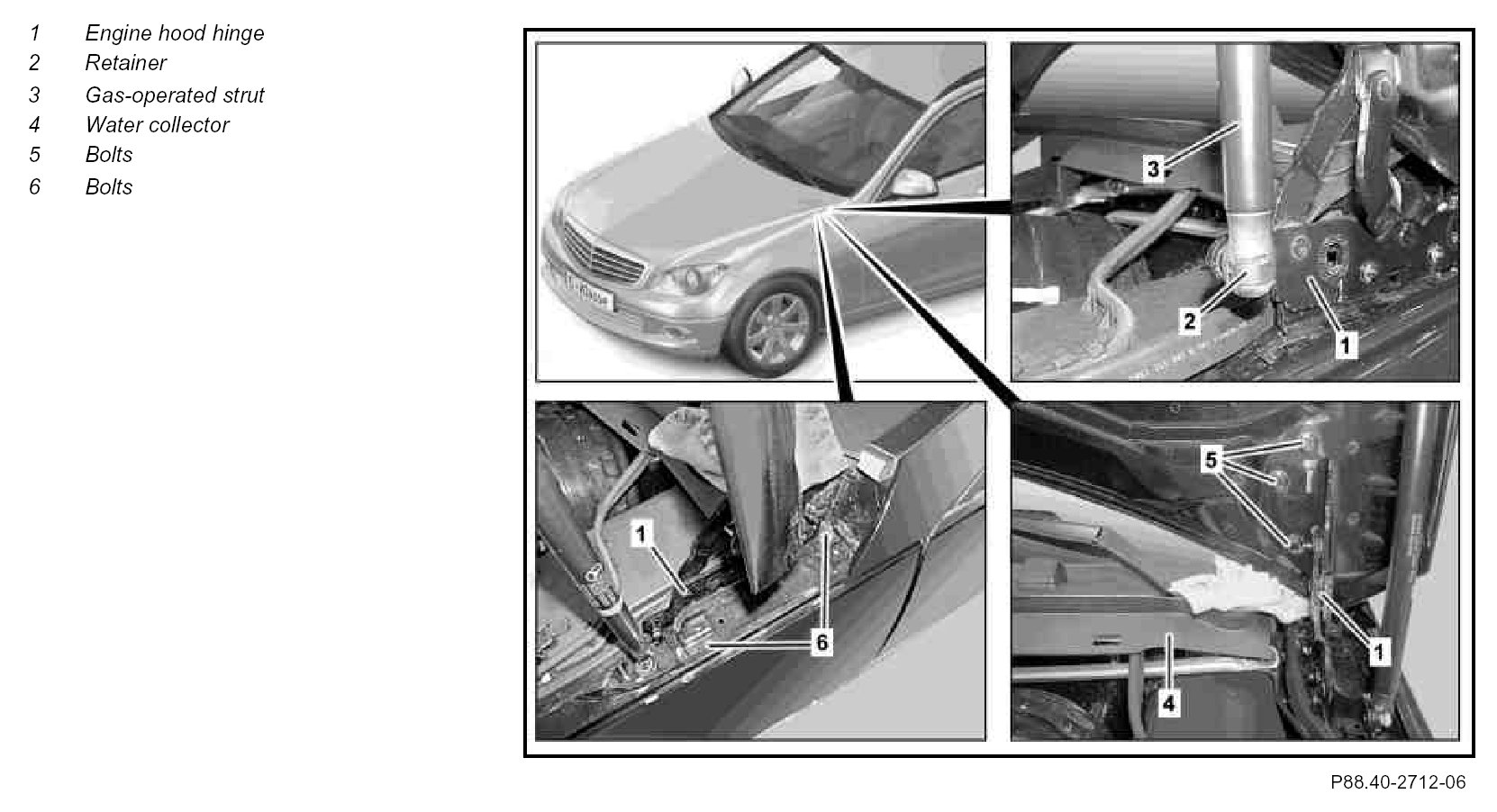

Component Identification:

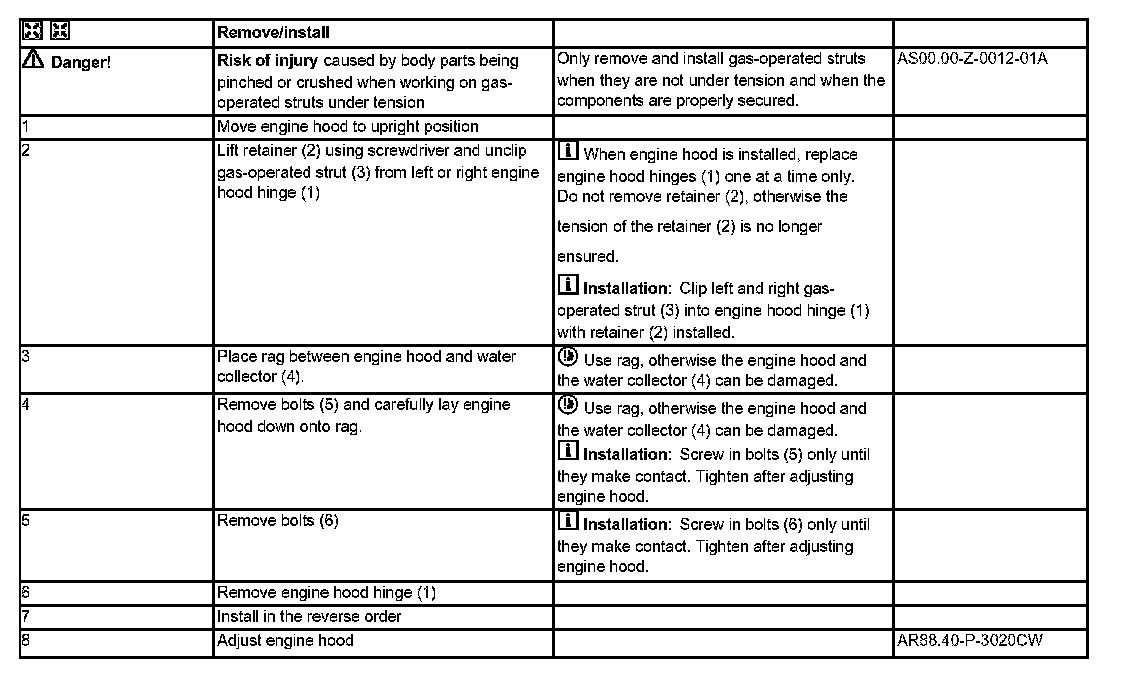

Steps 1 - 8:
