Rear Door Latch: Service and Repair
AR72.12-P-2510CW Remove/Install Rear Door Lock
- except CODE (Z04) Light armoring [models 212.0]

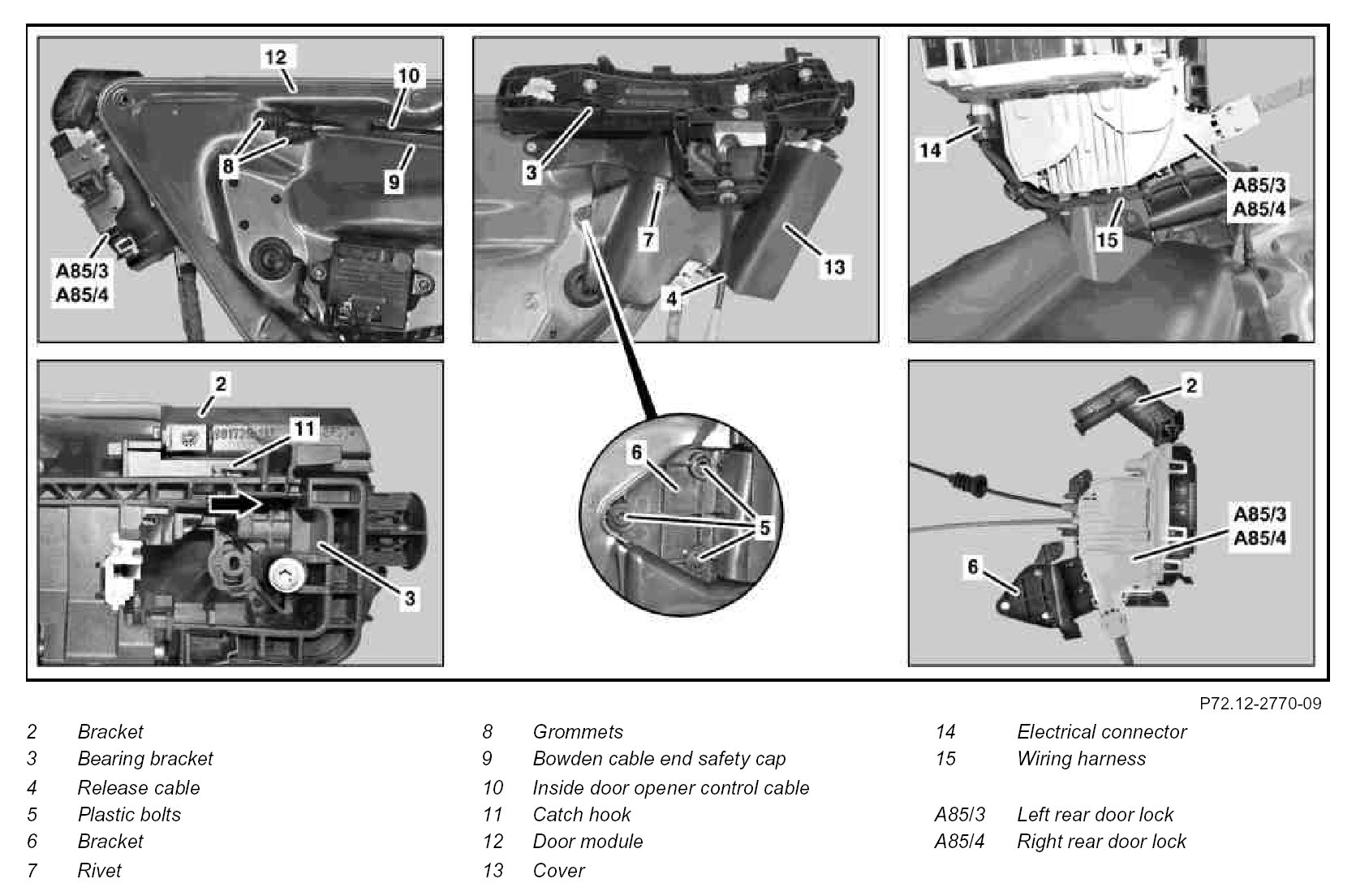

Component Identification:

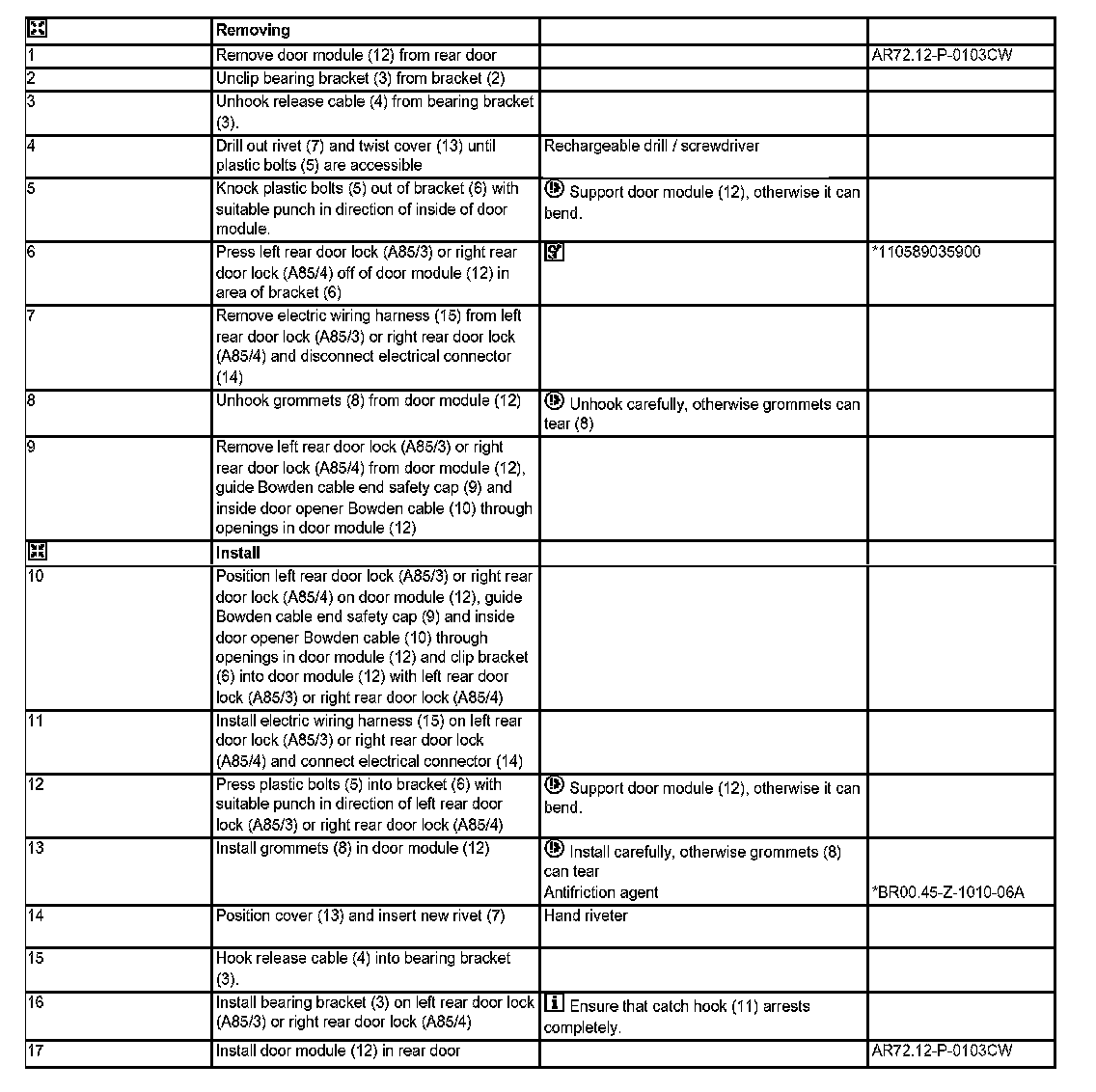

Steps 1 - 17:
Special Tools:

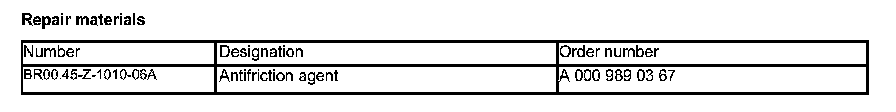

Repair Materials:
AR72.12-P-2510CW Remove/Install Rear Door Lock
- except CODE (Z04) Light armoring [models 212.0]
