AZ88.30-P-0020CW Retrofit Rear Diffuser



AZ88.30-P-0020CW Retrofit rear diffuser
- except CODE (550) Trailer hitch
- except CODE (772) AMG styling package - front spoiler, side skirts and rear apron
- except CODE (950) EVOLUTION AMG sport package
- except AMG vehicles

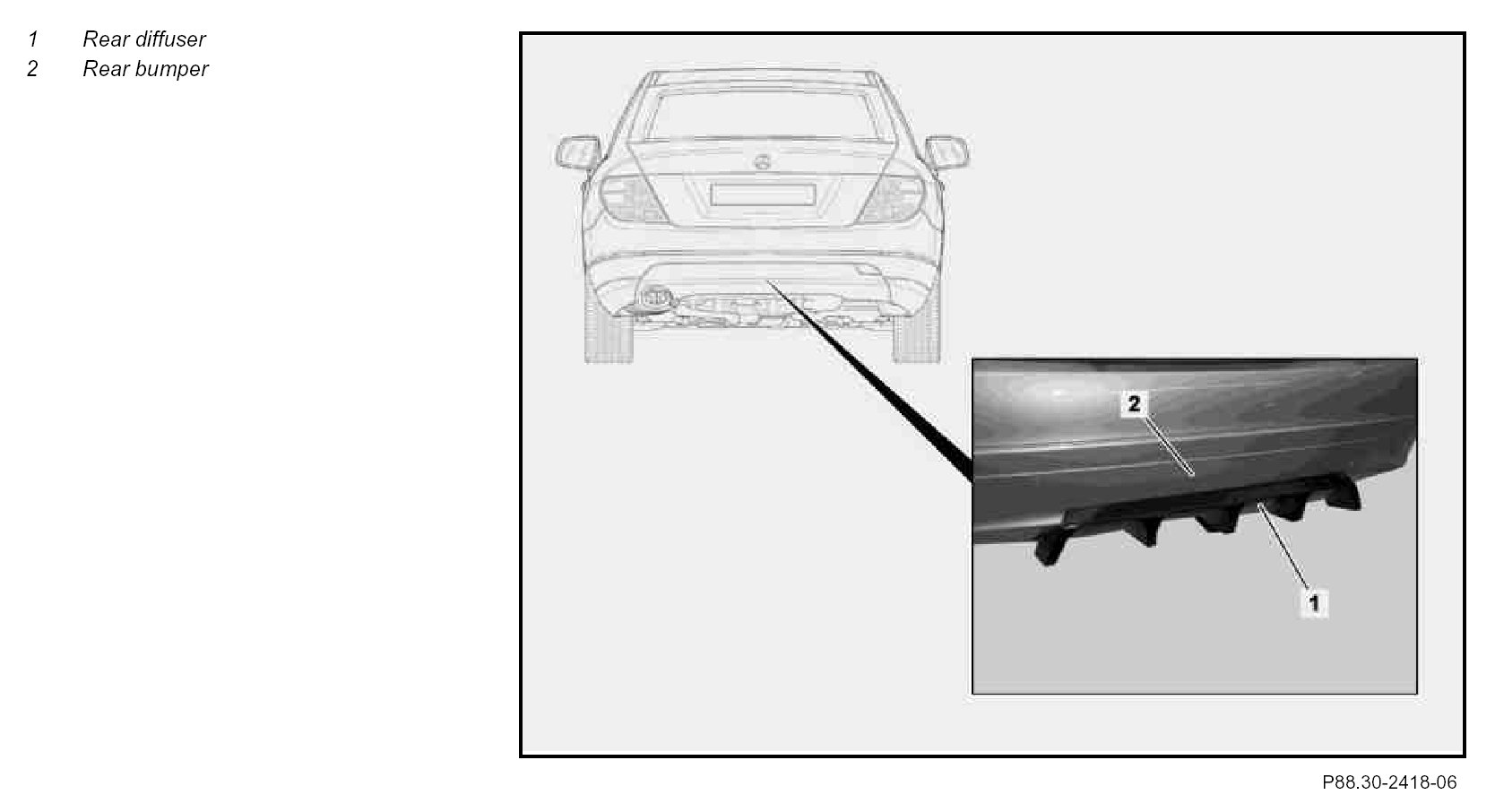

Component Identification:

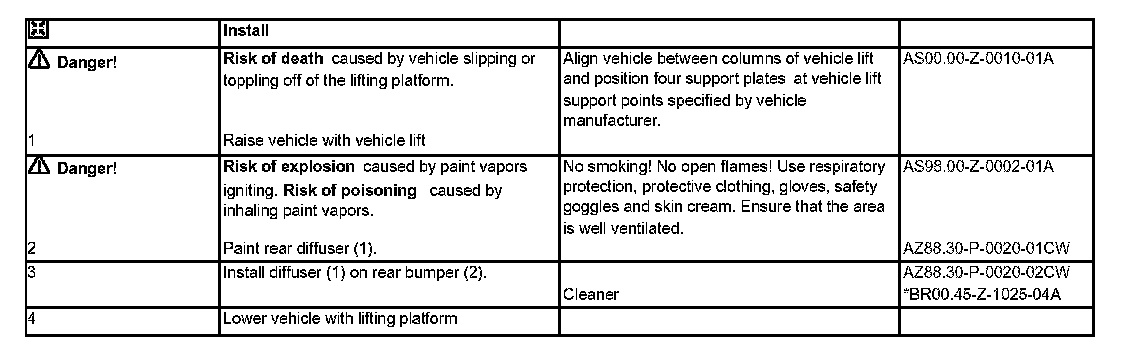

Steps 1 - 4:

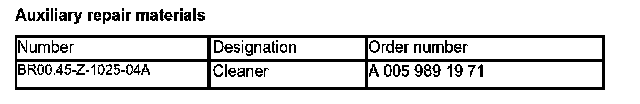

Auxiliary Repair Materials:

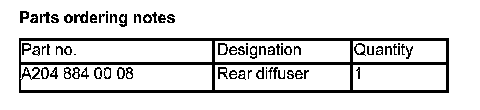

Parts Ordering Notes:
