AZ88.20-P-0015CW Retrofit Spoiler on Rear Bumper



AZ88.20-P-0015CW Retrofit Spoiler On Rear Bumper
- except CODE (772) AMG styling package - front spoiler, side skirts and rear apron
- except CODE (950) EVOLUTION AMG sport package
- except AMG vehicles

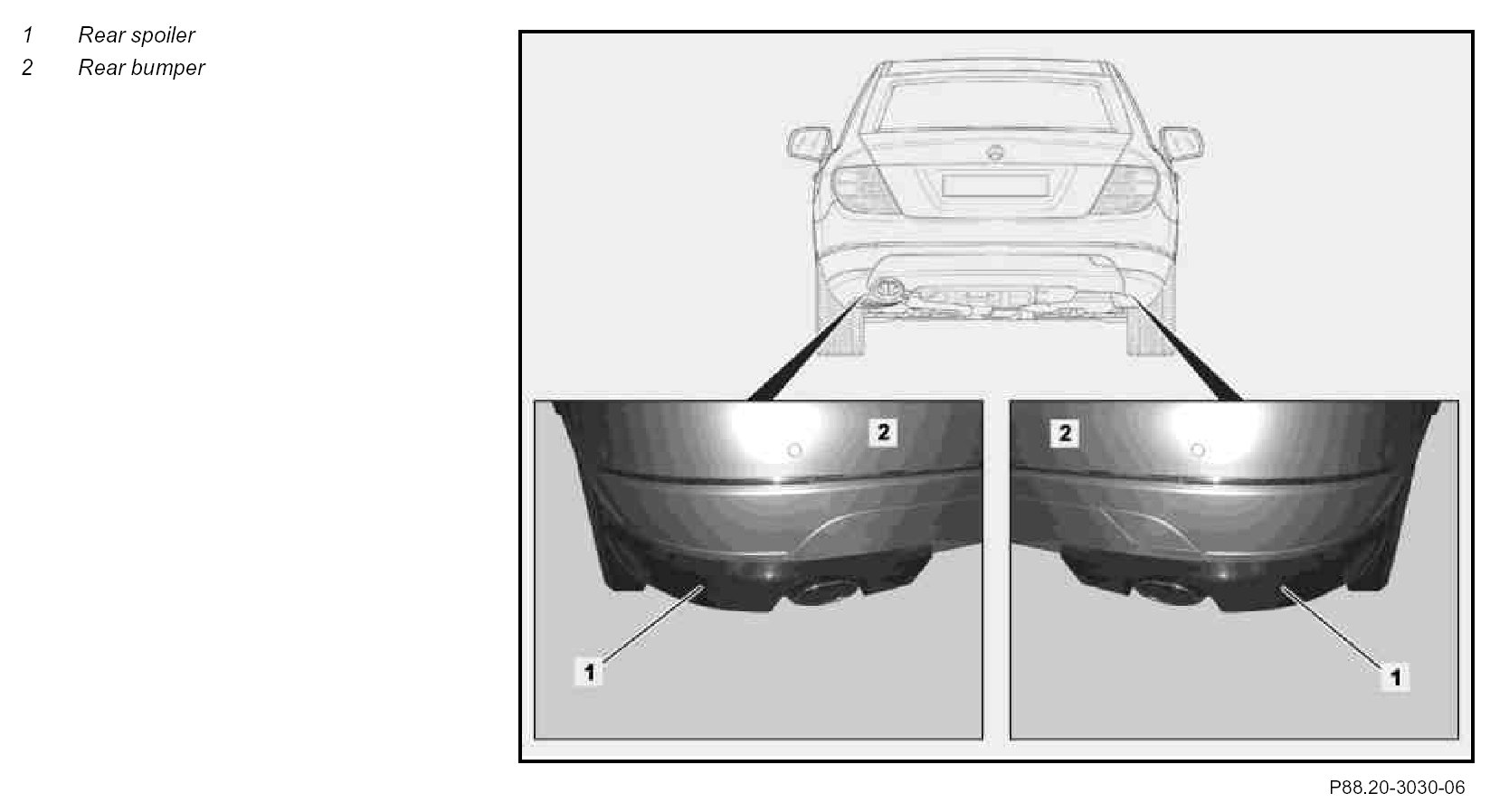

Component Identification:

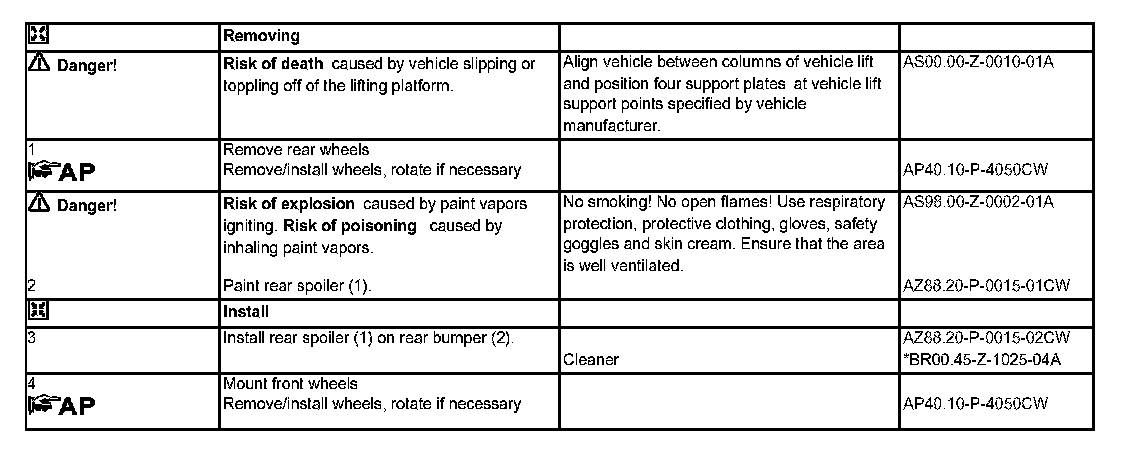

Steps 1 - 4:

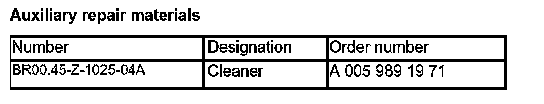

Auxiliary Repair Materials:

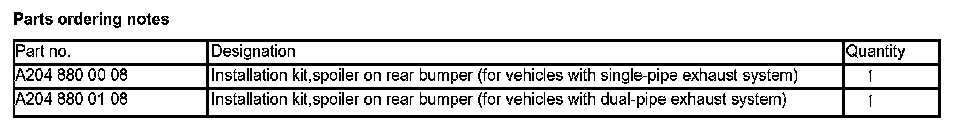

Parts Ordering Notes:
