AR88.20-P-2000CW Remove/Install Front Bumper
AR88.20-P-2000CW Remove/Install Front Bumper
AR88.20-P-2000CW Remove/Install front
bumper

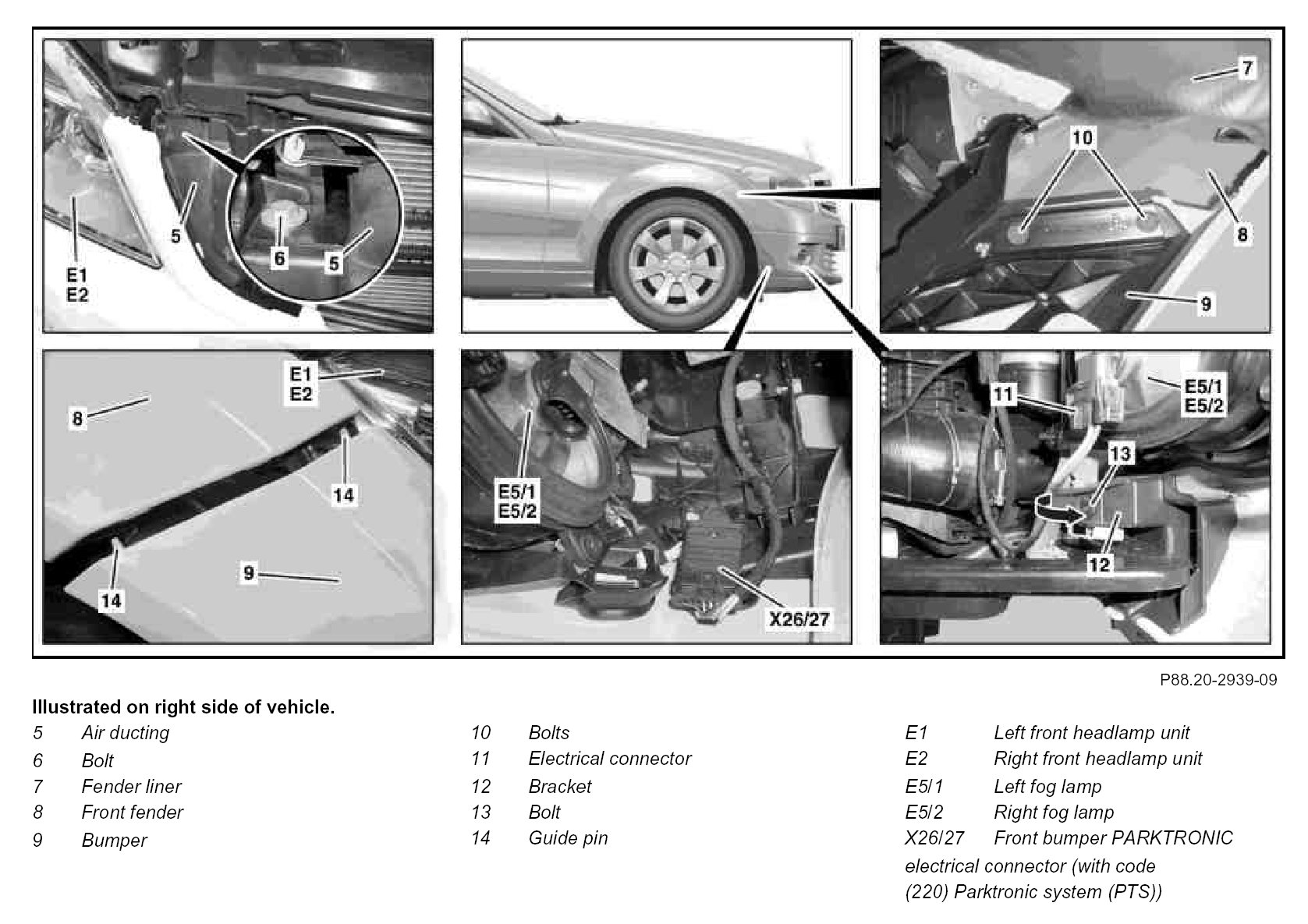

Component Identification:

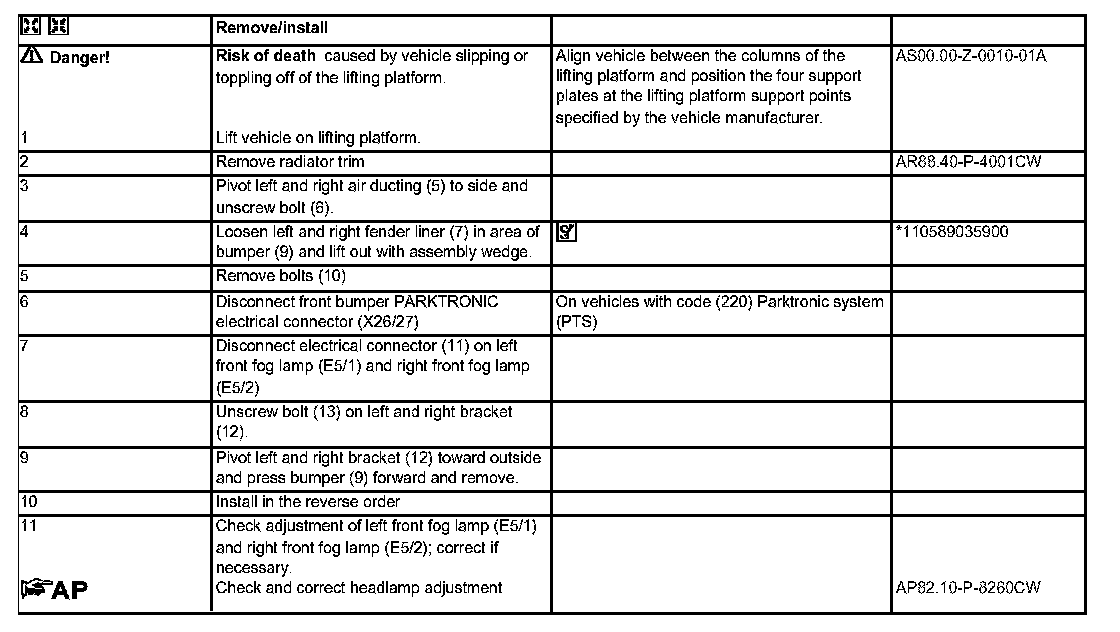

Steps 1 - 11:
Special Tools:
