Removal and Replacement



AR82.60-P-7545CW Remove/Install Satellite Radio Control Unit
- with CODE (536) SIRIUS satellite radio


Component Identification:

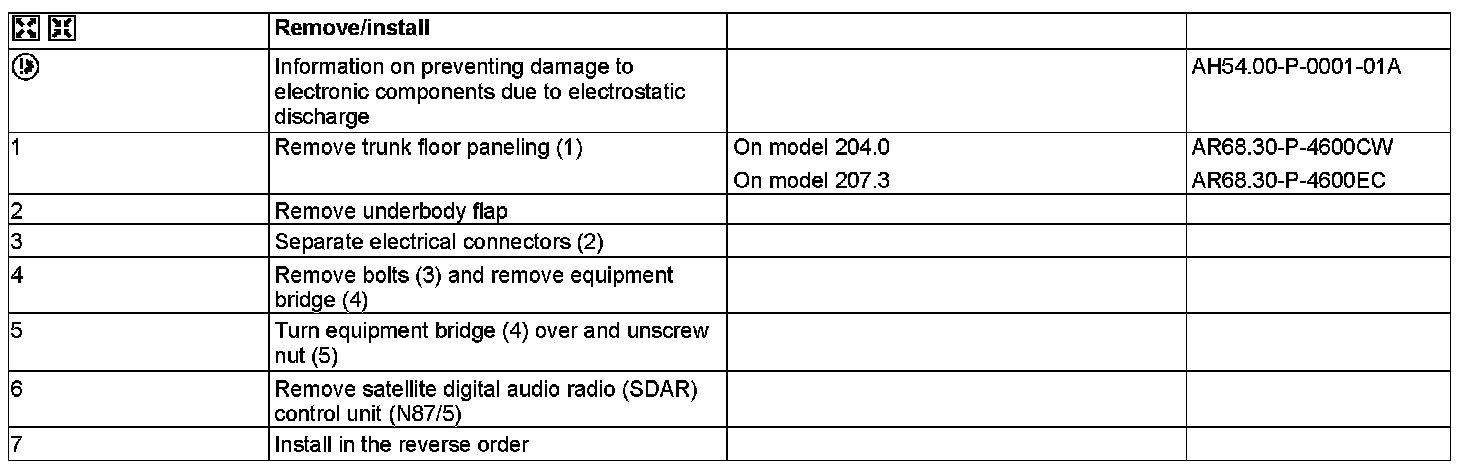

Steps 1 - 7:
