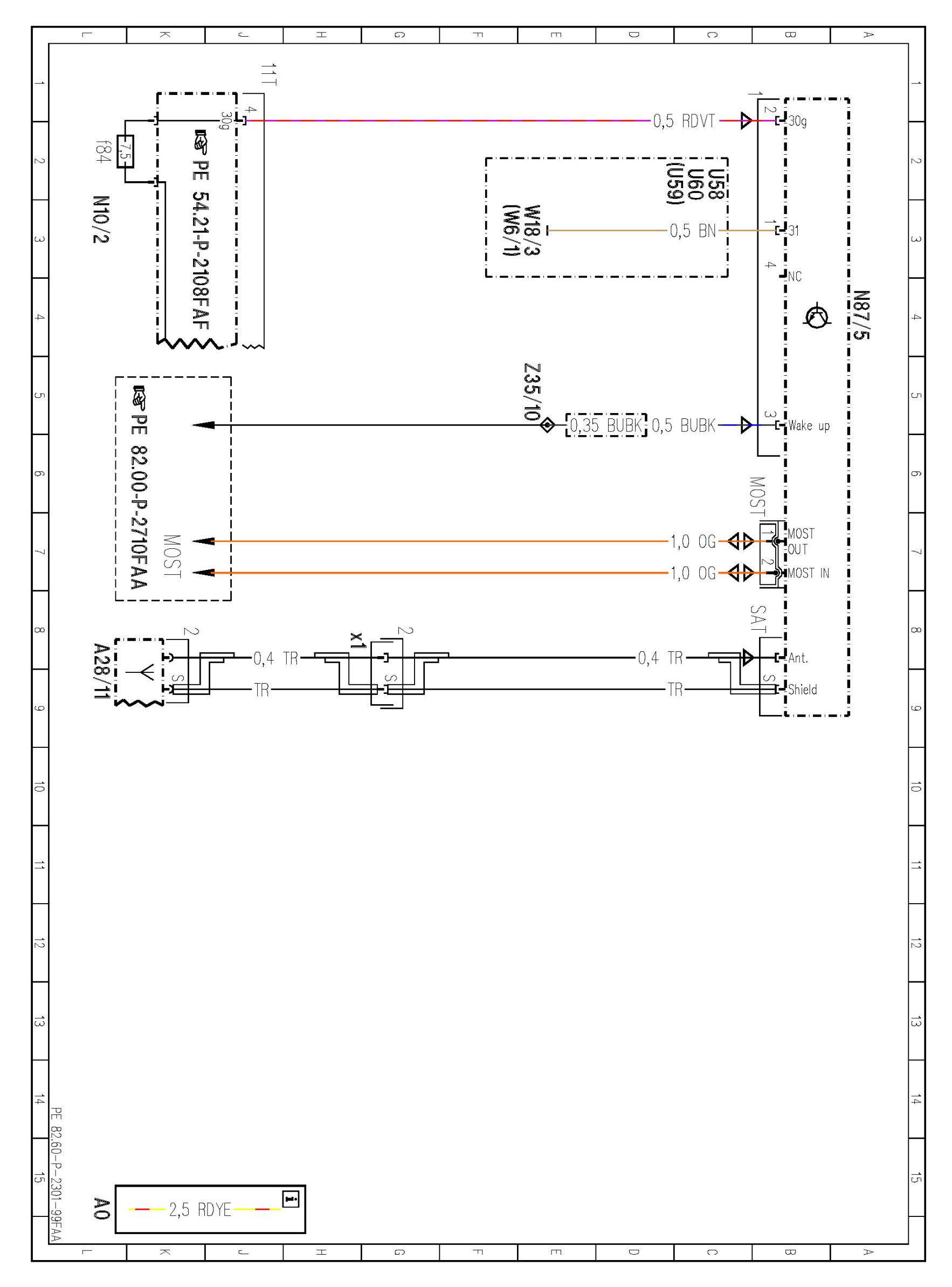

PE82.60-P-2301FAA Satellite Digital Audio Radio System Control Unit (SDAR)

PE82.60-P-2301FAA Satellite Digital Audio Radio System Control Unit (SDAR)

MODEL 204.0 /9
- with CODE (536) SIRIUS satellite radio
- with CODE (494) USA version
- up to model year 2010 /YoM 09,

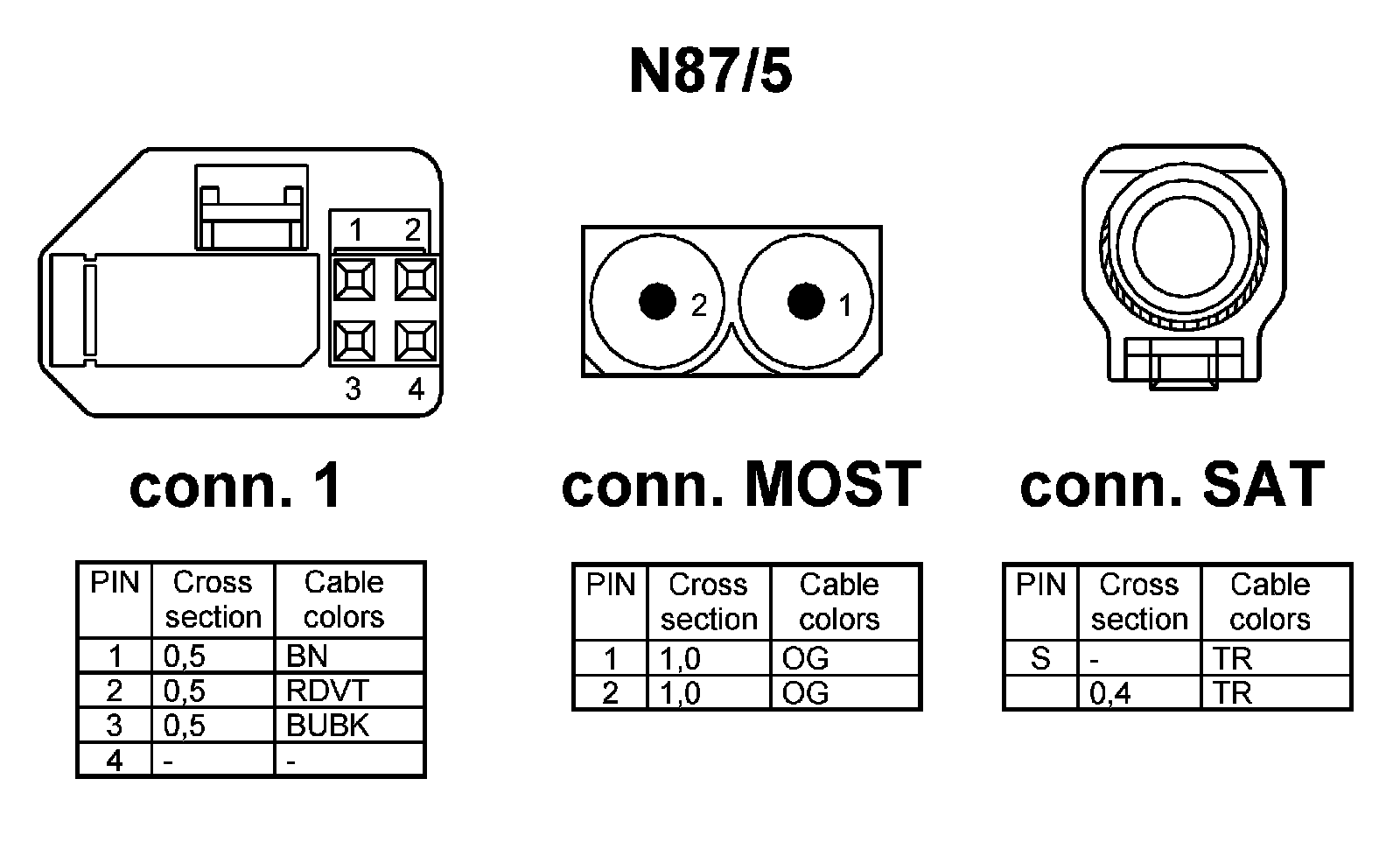

- control unit N87/5

MODEL 204.0 /3 /9
- with CODE (536) SIRIUS satellite radio
- with CODE (494) USA version
- as of model year 2011 /YoM 10,
- control unit N87/5























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
