AN82.25-P-1000-11CW Retrofitting Emergency Alarm Activate Button

AN82.25-P-1000-11CW Retrofitting Emergency Alarm Activate Button
- except CODE (498) Japan version
- except CODE (494) USA version
- except CODE (990) AMG vehicles

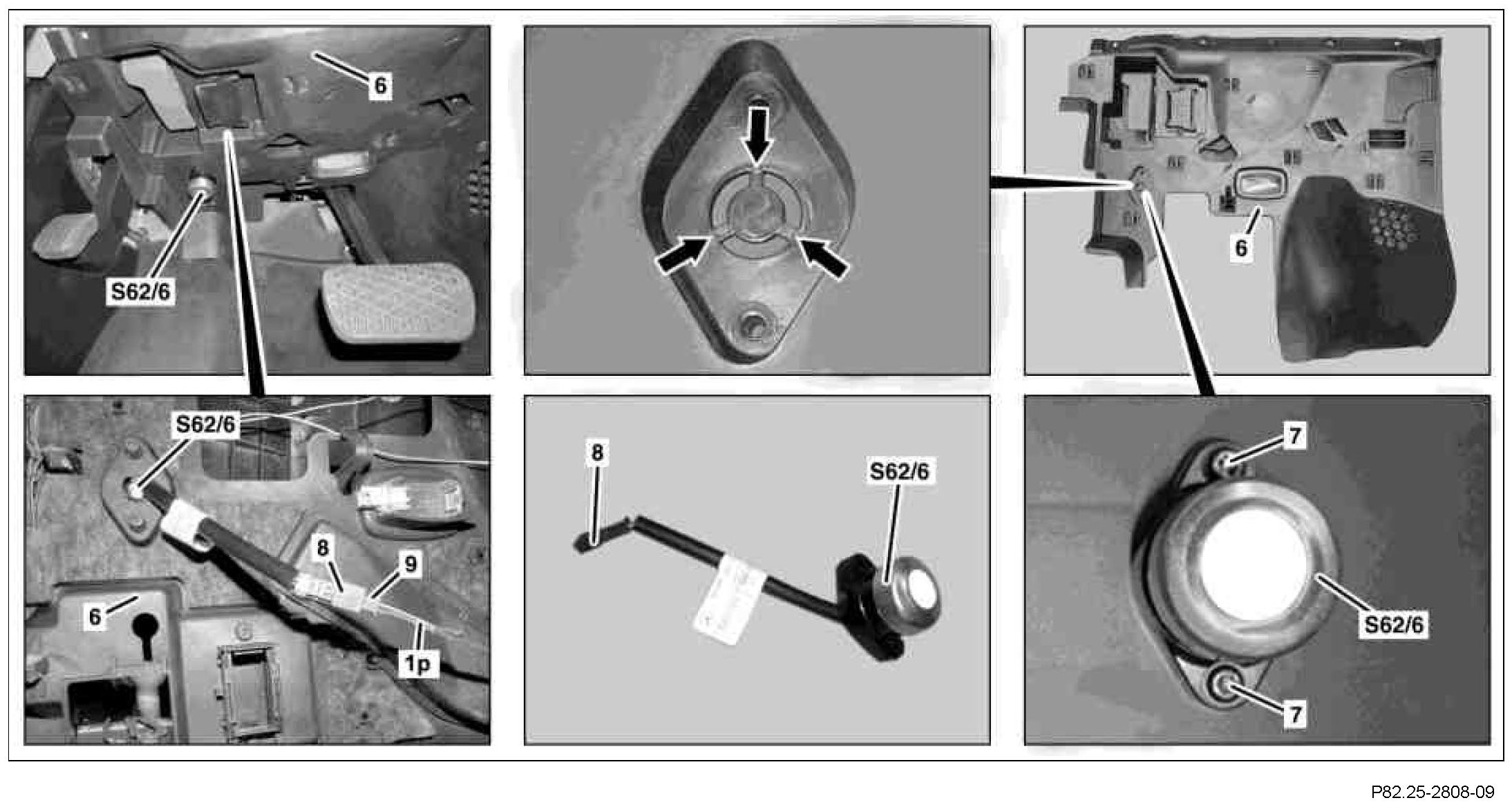

1 Break bars (arrows) out of left covering (6).
2 Fasten taxi emergency alarm system "Trigger" button (S62/6) using two sheet metal screws (7) into the left covering (6).

Use sheet metal screws (7) from parts kit.

3 Position left covering (6) under the instrument panel and join the connector (8) of the taxi emergency alarm system "Trigger" button (S62/6) to the connector (9) for the branch- off line (1p) of the rental vehicle wiring harness.
4 Install left covering (6).
