AN82.25-P-1000-10CW Retrofitting Emergency Alarm Cancel Button

AN82.25-P-1000-10CW Retrofitting Emergency Alarm Cancel Button
- except CODE (498) Japan version
- except CODE (494) USA version
- except CODE (990) AMG vehicles

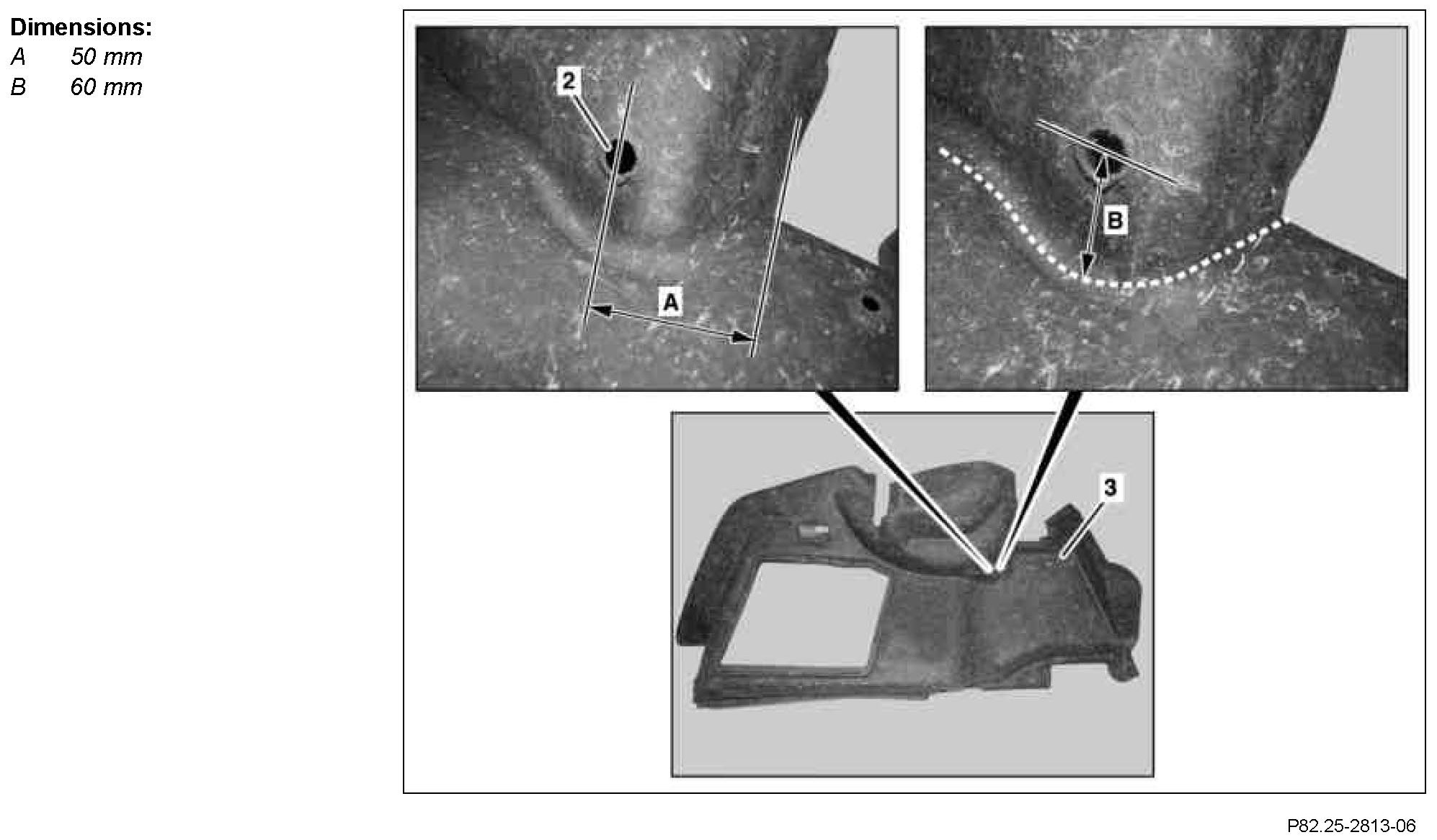

1 Drill hole (2) to diameter of 20 mm, to match shown dimension in the right luggage compartment lining (3).

Component Identification:

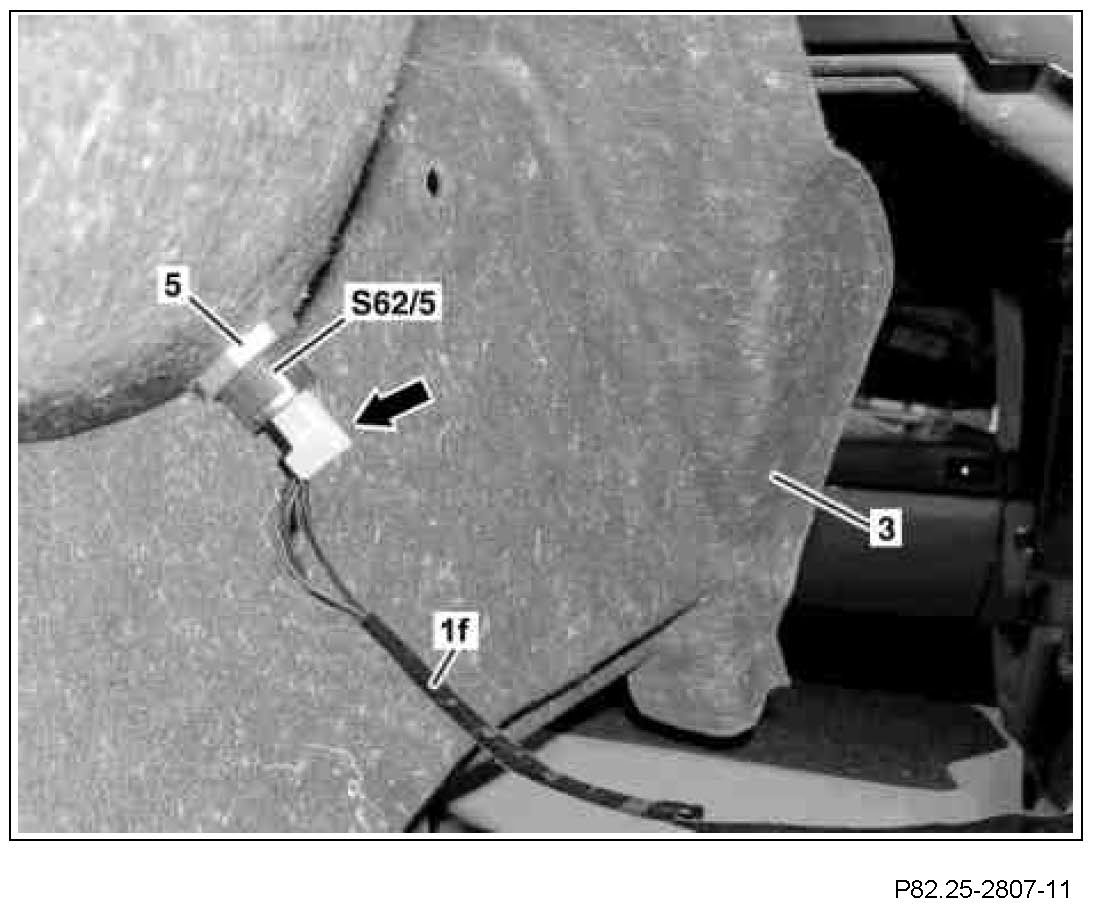

2 Fasten the taxi emergency alarm system "Delete" button (S62/5) using the nut (5) into the right luggage compartment lining (3) into place.
3 Place the right luggage compartment lining (3) into the luggage compartment and join the connectors (arrow) of the branch-off line (1f) to the taxi emergency alarm system "Delete" button (S62/5).
