AN82.25-P-1000-03CW Install Special Vehicle Multifunction Control Unit (MSS)

AN82.25-P-1000-03CW Install Special Vehicle Multifunction Control Unit (MSS)
- except CODE (498) Japan version
- except CODE (494) USA version
- except CODE (990) AMG vehicles

Shown with code (537) Digital radio

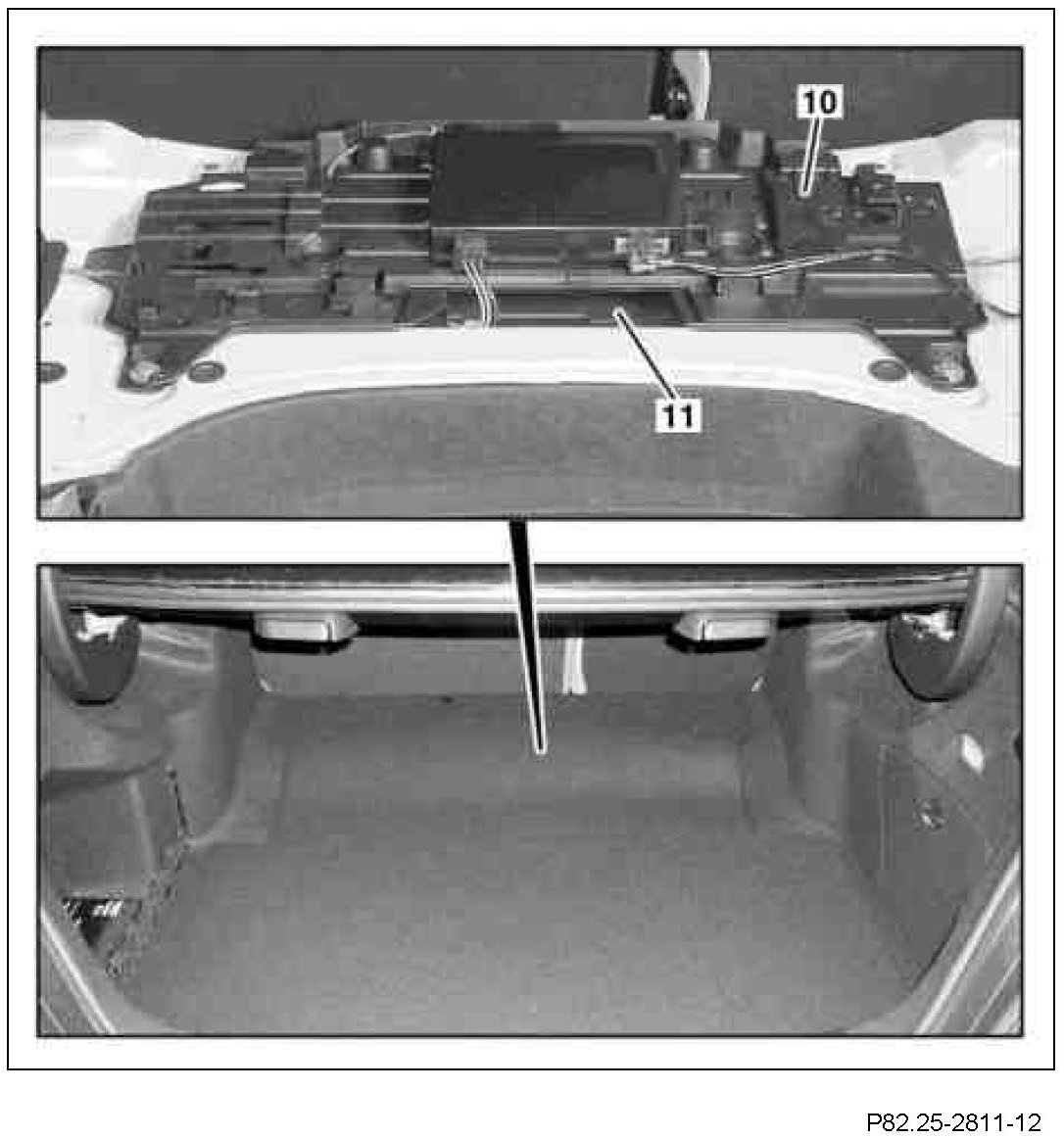

1.1 Remove cover (10) of implement carrier plate (11).

Only when an implement carrier plate (11) is installed. This is dependent on the vehicle equipment.

1.2 Remove support from installation location of implement carrier plate (11) and install the implement carrier plate (11).

Only when an implement carrier plate (11) is not installed.

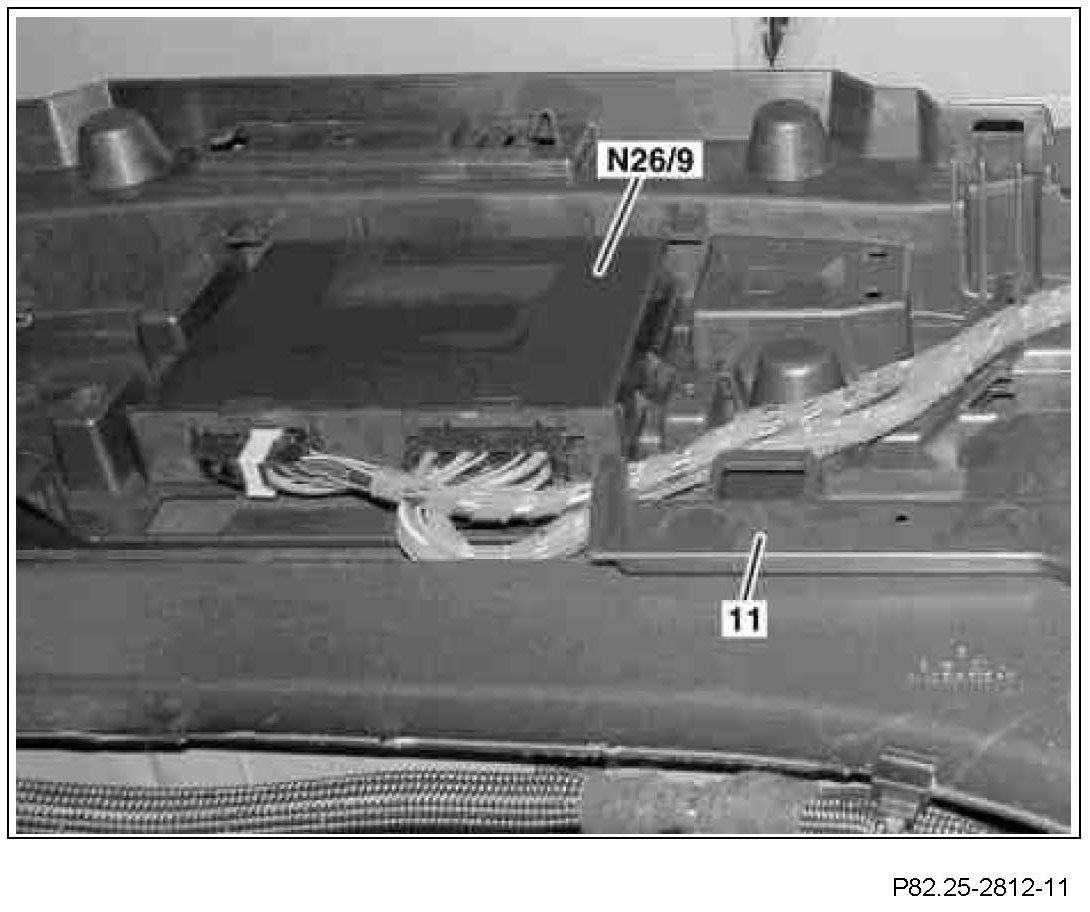

2 Place the special-purpose vehicle multifunction control unit (N26/9) into the implement carrier plate (11).

The connectors of the rental vehicle wiring harness are connected at a later stage to the special-purpose vehicle multifunction control unit (N26/9).
