AN82.61-P-0001-06FH Retrofit Most Fiber Optic Cable Wiring Harness

AN82.61-P-0001-06FH Retrofit MOST Fiber Optic Cable Wiring Harness
- MODEL 204.0## /2## 1# as of 1.3.11, 204.3## 1#
- except CODE (537) Digital radio except CODE (810) Sound system

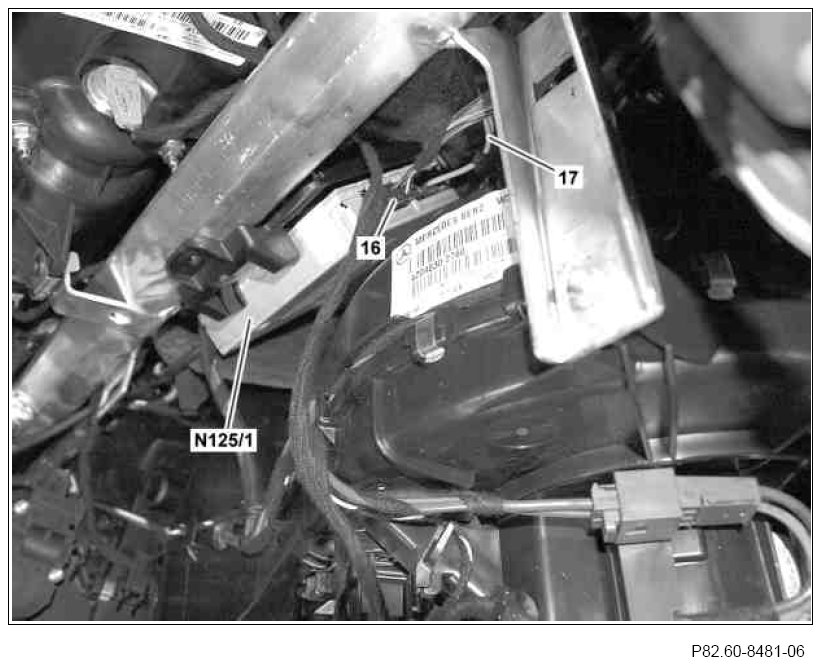

1 Connect black 2-pin coupling (16) of optical fiber wiring harness (17) to media interface control unit (N125/1).

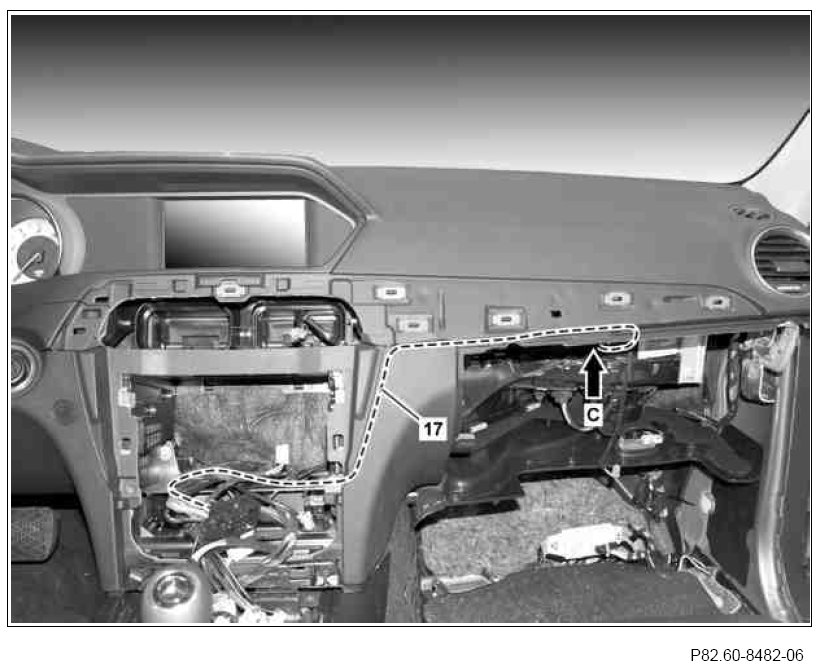

2 Route optical fiber wiring harness (17), as shown, from installation location (arrow C) of media interface control unit into slot of audio equipment.
3 Fasten optical fiber wiring harness (17) using cable ties to vehicle wiring harness.

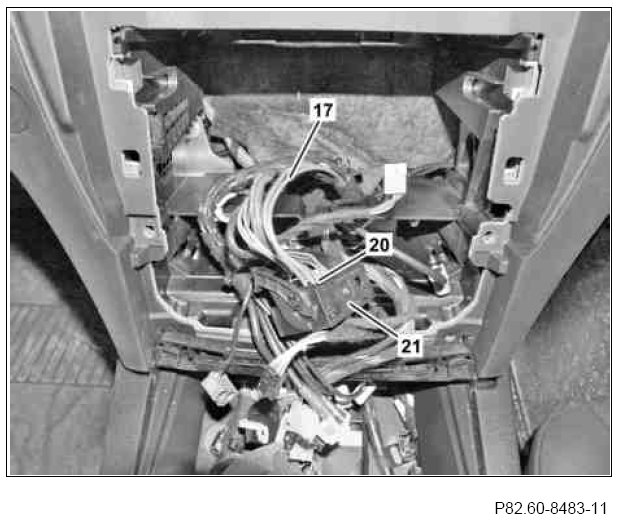

4 Install coupling (20) of optical fiber wiring harness (17), as shown, into the outer contact cavity on the black 44-pin coupling (21).
