AZ82.85-P-0005-02CW Retrofit Adapter Wiring Harness For Mercedes- Benz InCar Internet

AZ82.85-P-0005-02CW Retrofit Adapter Wiring Harness For Mercedes- Benz InCar Internet
- MODEL 204.0## /2## 1#

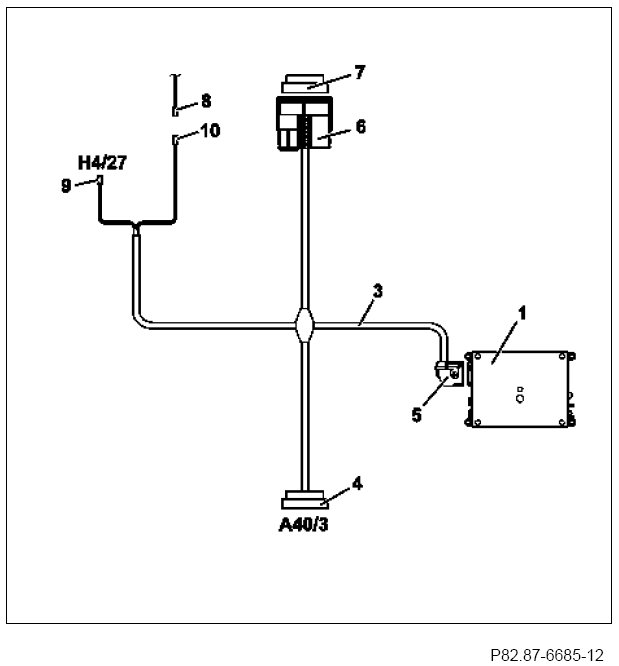

Connection scheme






1 InCar Internet control unit
3 InCar Internet adapter wiring harness
4 Black 44-pin coupling
5 Black 32-pin coupling
6 Black 44-pin plug
7 Black 44-pin coupling (COMAND controller unit vehicle wiring harness)
8 Black 2-pin coupling (standard connection to center instrument panel speaker) (with code (810) Sound system)
9 Black 2-pin coupling
10 Black 2-pin plug
A40/3 COMAND control unit
H4/27 Center instrument panel speaker

Routing diagram






1 InCar Internet control unit
3 InCar Internet adapter wiring harness
4 Black 44-pin coupling
5 Black 32-pin coupling
6 Black 44-pin plug
8 Black 2-pin coupling (standard connection to center instrument panel speaker) (with code (810) Sound system)
9 Black 2-pin coupling
10 Black 2-pin plug
A40/3 COMAND control unit
H4/27 Center instrument panel speaker

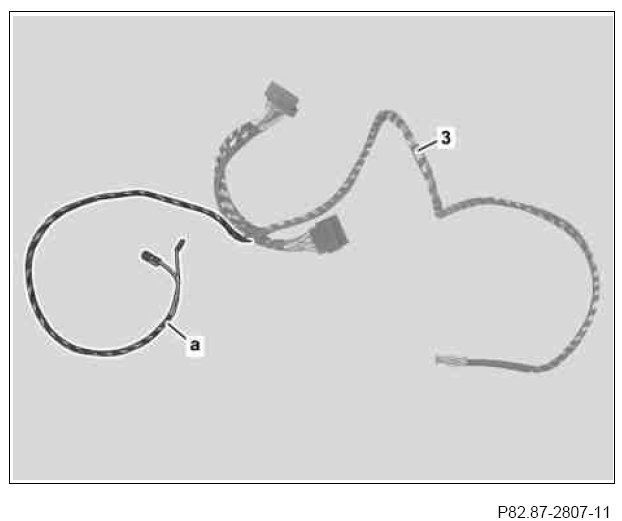

1 Wrap felt tape around branch-off line of center instrument panel speaker (a) of the InCar Internet adapter wiring harness (3).

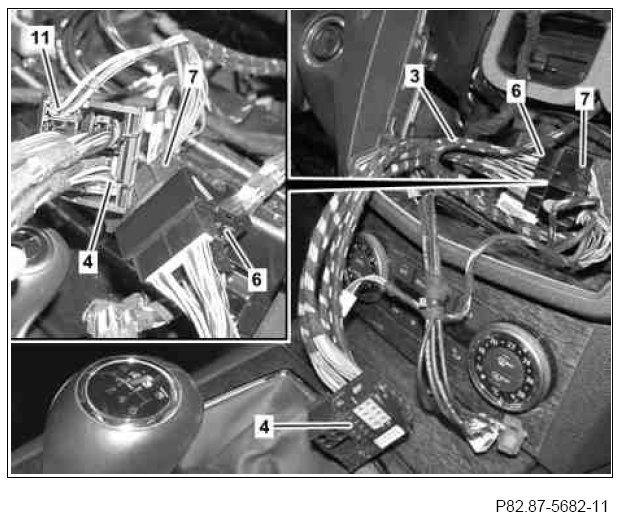

2 Connect black 44-pin plug (6) of InCar Internet adapter wiring harness (3) to black 44-pin coupling (7) of vehicle wiring harness.
3 Remove black, 2-pin coupling for optical fiber (11) from black, 44-pin coupling (7), and install in black, 44-pin coupling (4).
Only for vehicles with one of the following codes:
- Code (518) Media Interface
- Code (537) Digital radio
- Code (536) SIRIUS satellite radio

4 Route InCar Internet adapter wiring harness (3) into installation opening at bottom left.
The black 44-pin coupling (4) will be connected at a later stage to the COMAND controller unit. The InCar Internet adapter wiring harness (3) obstructs the installation of the COMAND controller unit because of its size.
The COMAND controller unit can only be installed if the InCar Internet adapter wiring harness (3) is as low down as possible in the rear area of the automatic air conditioning control and operating unit.






5 Route black, 32-pin coupling (5) of InCar Internet adapter wiring harness (3) into the front passenger footwell.
The black, 32-pin coupling (5) is connected to the InCar Internet control unit at a later stage.

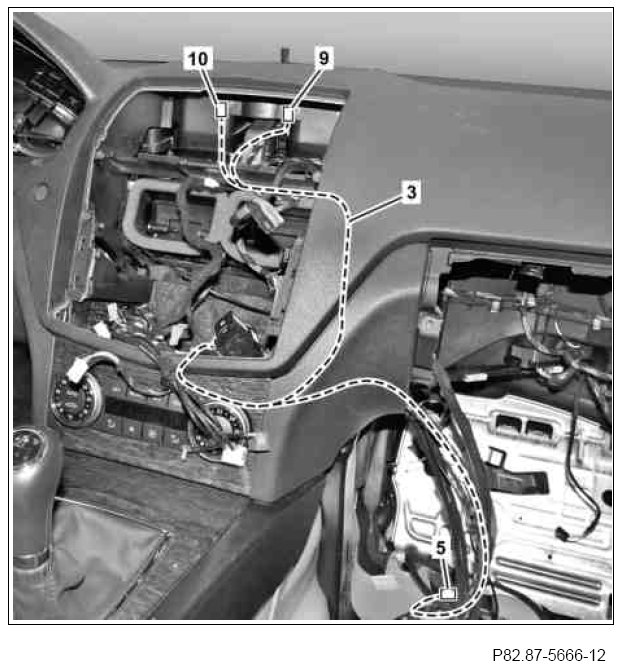

6 Route black, 2-pin plug (10) and black, 2-pin coupling (9) of InCar Internet adapter wiring harness (3), as shown, through the cable duct of the Low Voltage Differential Signal (LVDS) display wiring harness to the installation location of the center instrument panel speaker.
7 Detach center instrument panel speaker (H4/27)
Only on with vehicles code (810) Sound system.

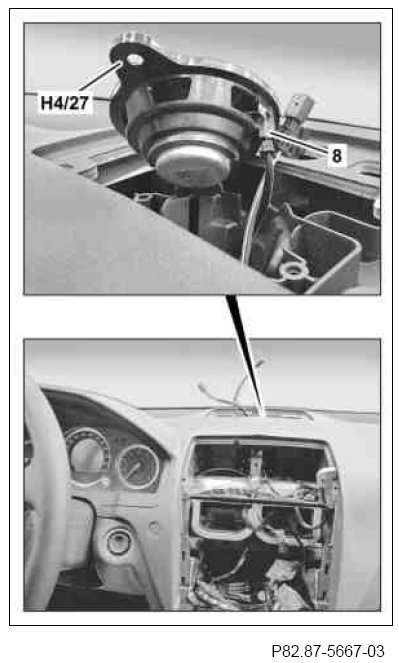

8 Detach black, 2-pin coupling (8) from center instrument panel speaker (H4/27).
Only on with vehicles code (810) Sound system.

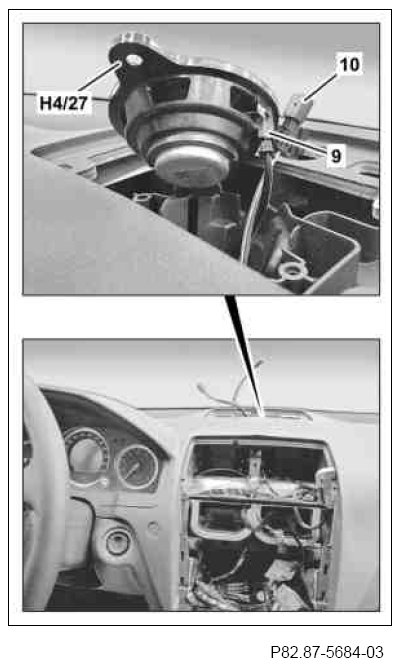

9.1 Connect black, 2-pin plug (10) of InCar Internet adapter wiring harness to black, 2-pin coupling of vehicle wiring harness.
On vehicles with code (810) Sound system.
The black 2-pin coupling was connected to the center instrument panel speaker (H4/27).

9.2 Strap down black, 2-pin plug (10) and fasten using felt tape into installation opening of center instrument panel speaker (H4/27).
In vehicles without code (810) Sound system.

10 Connect black 2-pin coupling (9) to center instrument panel speaker (H4/27).

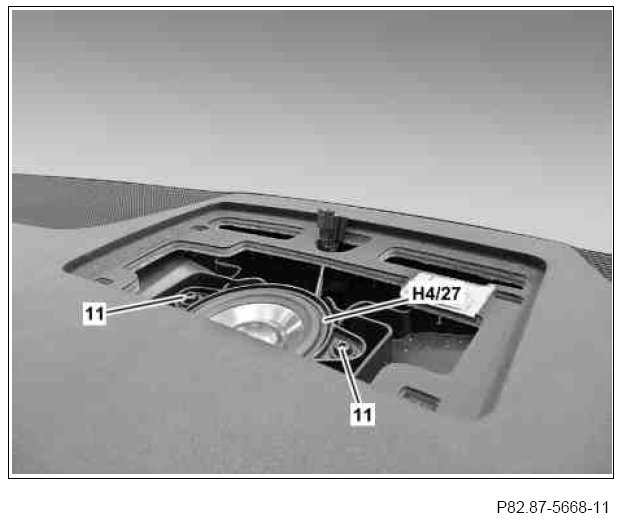

11 Insert center instrument panel speaker (H4/27) into support and tighten using bolts (11).
