AZ54.65-P-0001CW Retrofit Ultrasonic Backup Assist



AZ54.65-P-0001CW Retrofit Ultrasonic Backup Assist
- except CODE (220) Parktronic system (PTS)
- except CODE (772) AMG styling package - front spoiler, side skirts and rear apron
- except CODE (950) AMG sport package

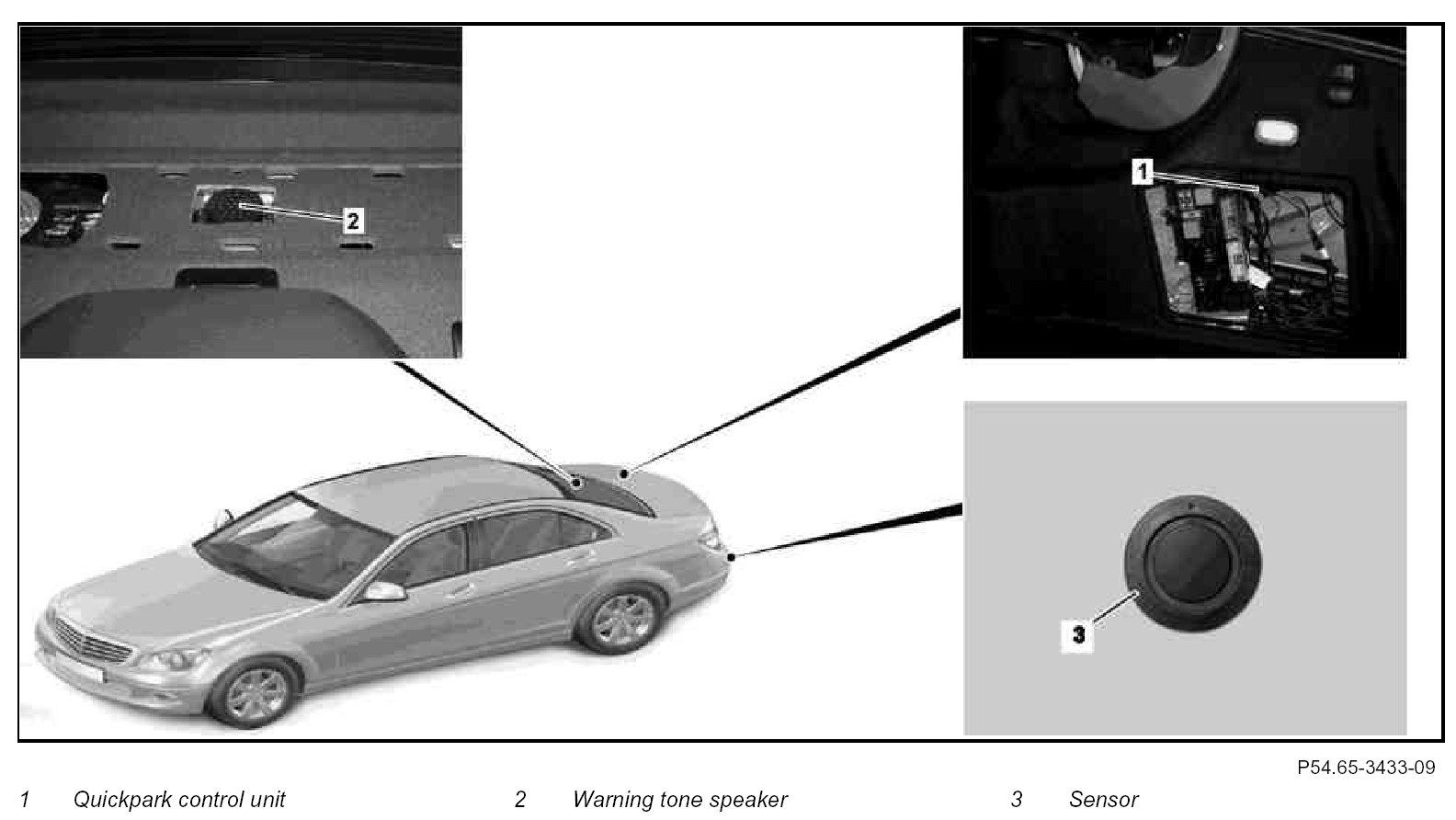

Component Identification:

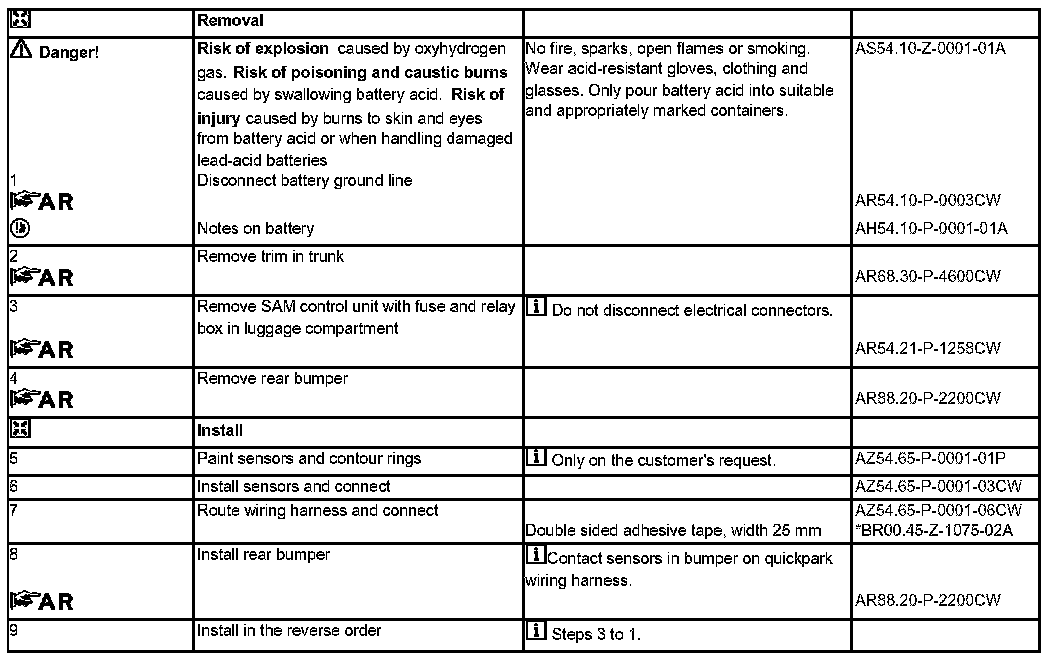

Steps 1 - 9:

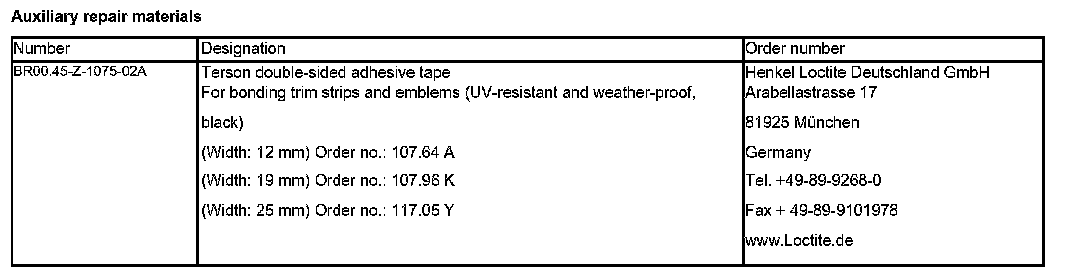

Auxiliary Repair Materials:




Parts Ordering Notes:
