AZ54.65-P-0001-06CWW Route Wiring Harness And Connect

AZ54.65-P-0001-06CWW Route Wiring Harness And Connect
- 204.### 1#

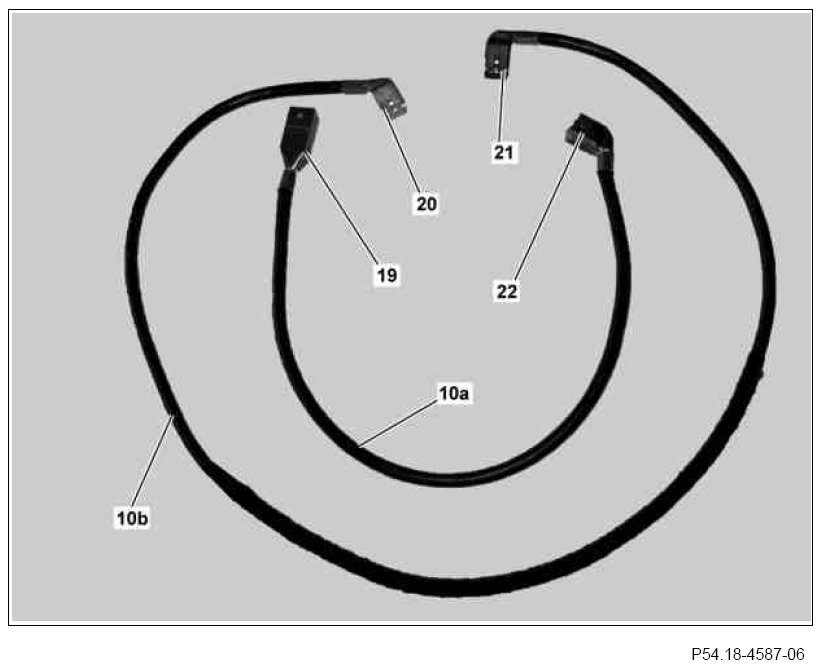

10a Wiring harness for low voltage differential signaling head unit
10b Wiring harness for low voltage differential signaling display
19 Control unit input coupling
20 Control unit output coupling
21 Connector on vehicle wiring harness
22 Coupling on radio

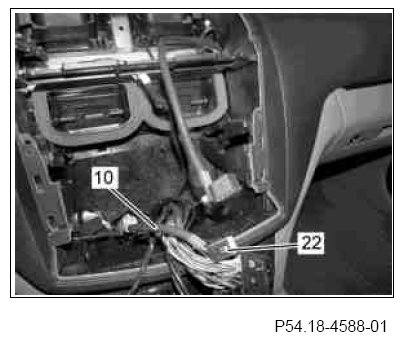

1 Route wiring harness of Head unit Low Voltage Differential Signal (LVDS) (10a) and wiring harness of LVDS display (10b) in the radio recess to the front passenger footwell. Contact connector on vehicle's own wiring harness (21) with the coupling of the vehicle's own wiring harness.
2 Fix the wiring harness of the head unit LVDS (10a) and wiring harness of the LVDS display (10b) in a space-saving manner in the radio recess.
Do not damage the wiring harness of the LVDS head unit (10a) and wiring harness of LVDS display (10b) by crushing or trapping.
Pay attention to adequate length for coupling on radio (22). The coupling (22) of the wiring harness of LVDS head unit (10a) are contacted with the control unit later on.
