GF54.65-P-5030CEJ Reversing Camera Control Unit Component Description

GF54.65-P-5030CEJ Reversing Camera Control Unit Component Description
- with CODE (218) Backup camera

Component Identification:

Location

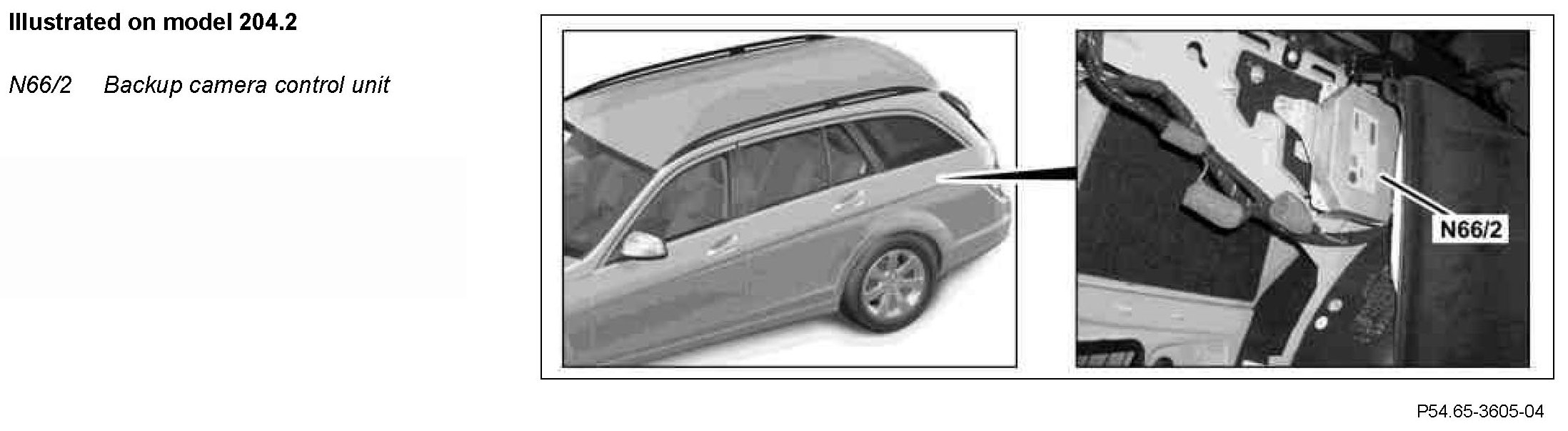

The reversing camera control unit is located on the left side of the trunk behind the panel.

Task
The reversing camera control unit has the following tasks:
^ Reading in of signals
^ Evaluation of input factors
^ Actuation of components

Reading in of signals
The input factors are read in with the following connections:
^ Direct line
^ Interior CAN (CAN B)

Direct line
The following components are read in via a direct line:
- Reversing camera (B84/3)
- Front passenger outside mirror camera (B84/5) (on model 204.9)

Interior CAN
The signals are read in by the reversing camera control unit over the interior CAN.
The functions resulting therefrom are described in the corresponding function descriptions (see block diagram or function schematic).

Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components
Components are actuated with the following connection:
^ Direct line

Direct line
The following components are actuated via a direct line:
- COMAND controller unit (A40/3)
- Backup camera
- Front passenger outside mirror camera (on model 204.9)
