AR54.65-P-0040EW Remove/Install Radar Sensors Control Unit



AR54.65-P-0040EW Remove/install Radar Sensors Control Unit
- with CODE (233) Distronic Plus
- with CODE (234) Blind Spot Assist

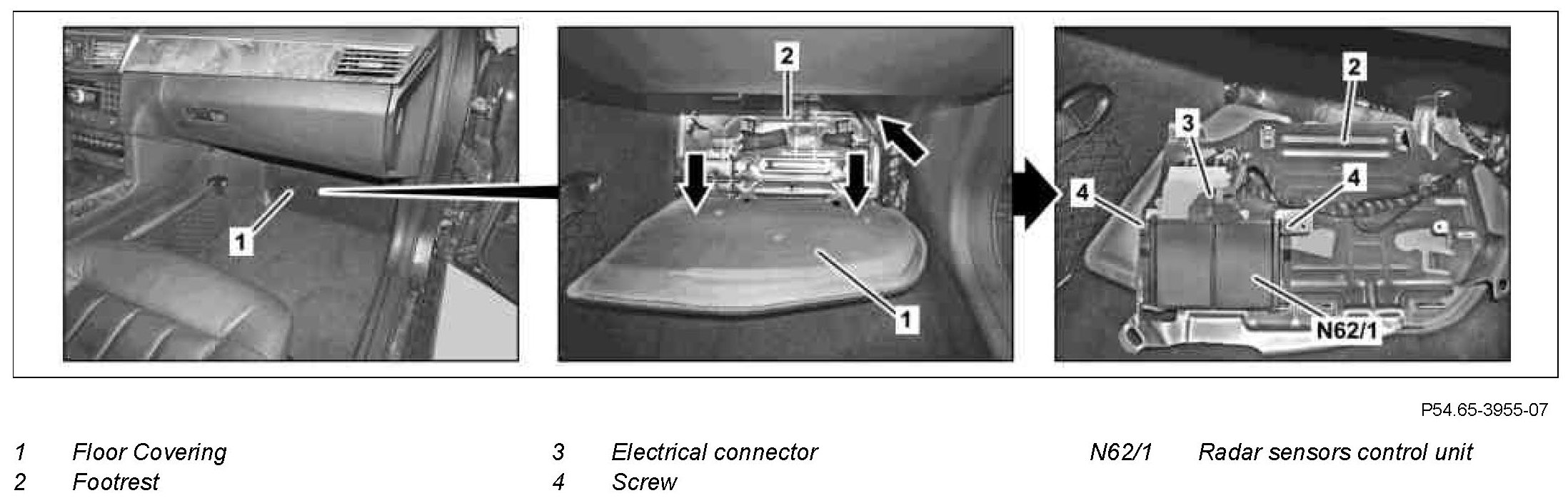

Component Identification:

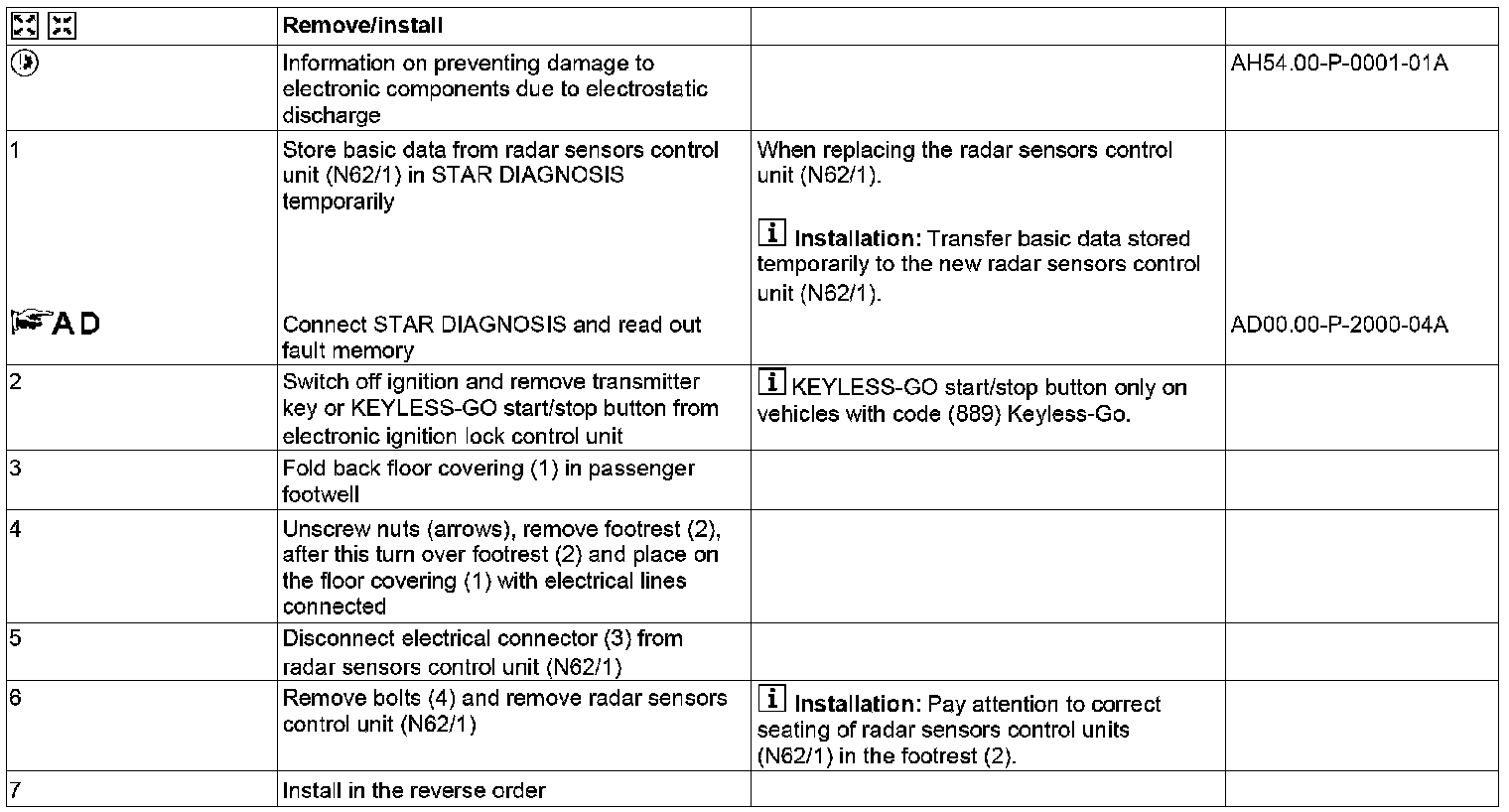

Steps 1-7:
