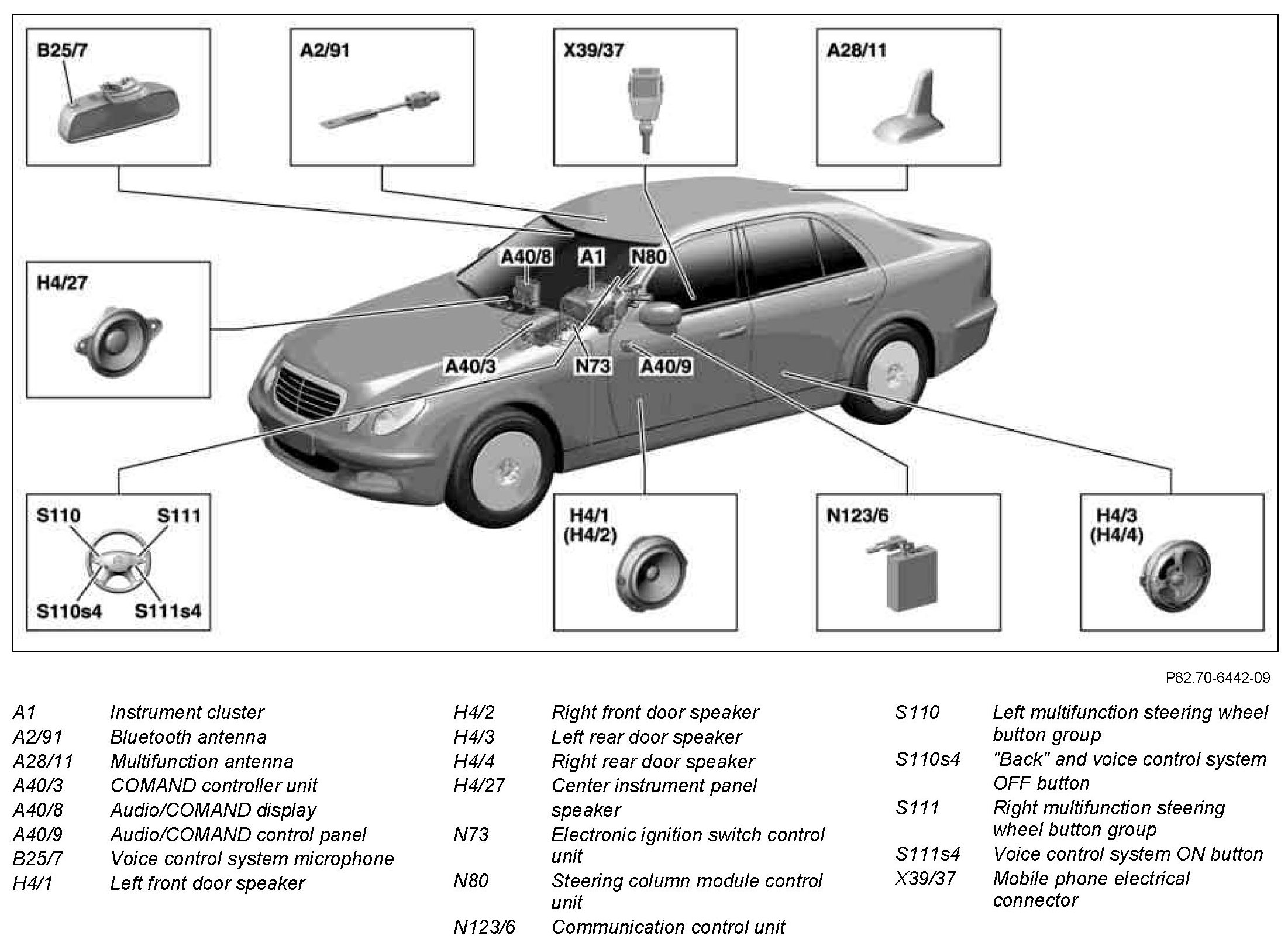

GF82.70-P-0007-01CWJ Mobile Phone System, Location of Components



GF82.70-P-0007-01CWJ Mobile Phone System, Location Of Components
- with CODE (498) Japan version

Component Identification:
