Antenna: Service and Repair



AR82.95-P-0017CW Remove/Install Emergency Call System Antenna
- with CODE (359) TELE AID emergency call system

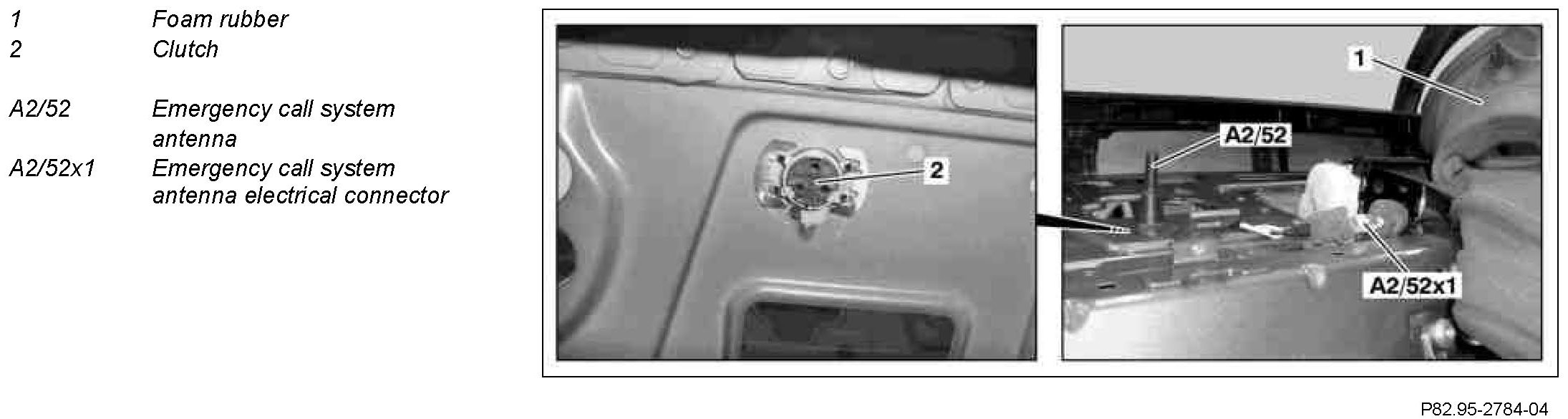

Component Identification:

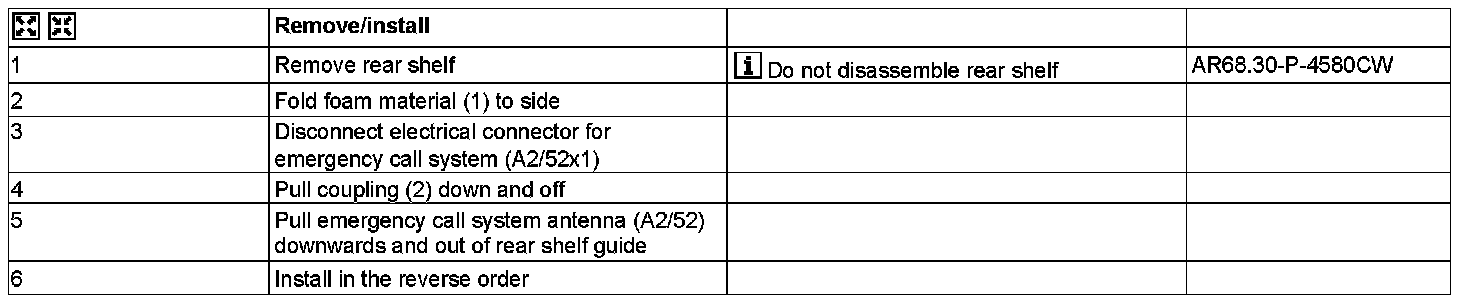

Steps 1 - 6:
