AR82.70-P-8951CW Remove/Install Antenna
AR82.70-P-8951CW Remove/Install Antenna
AR82.70-P-8951CW Remove/Install Antenna
- Roof antenna and dummy roof antenna

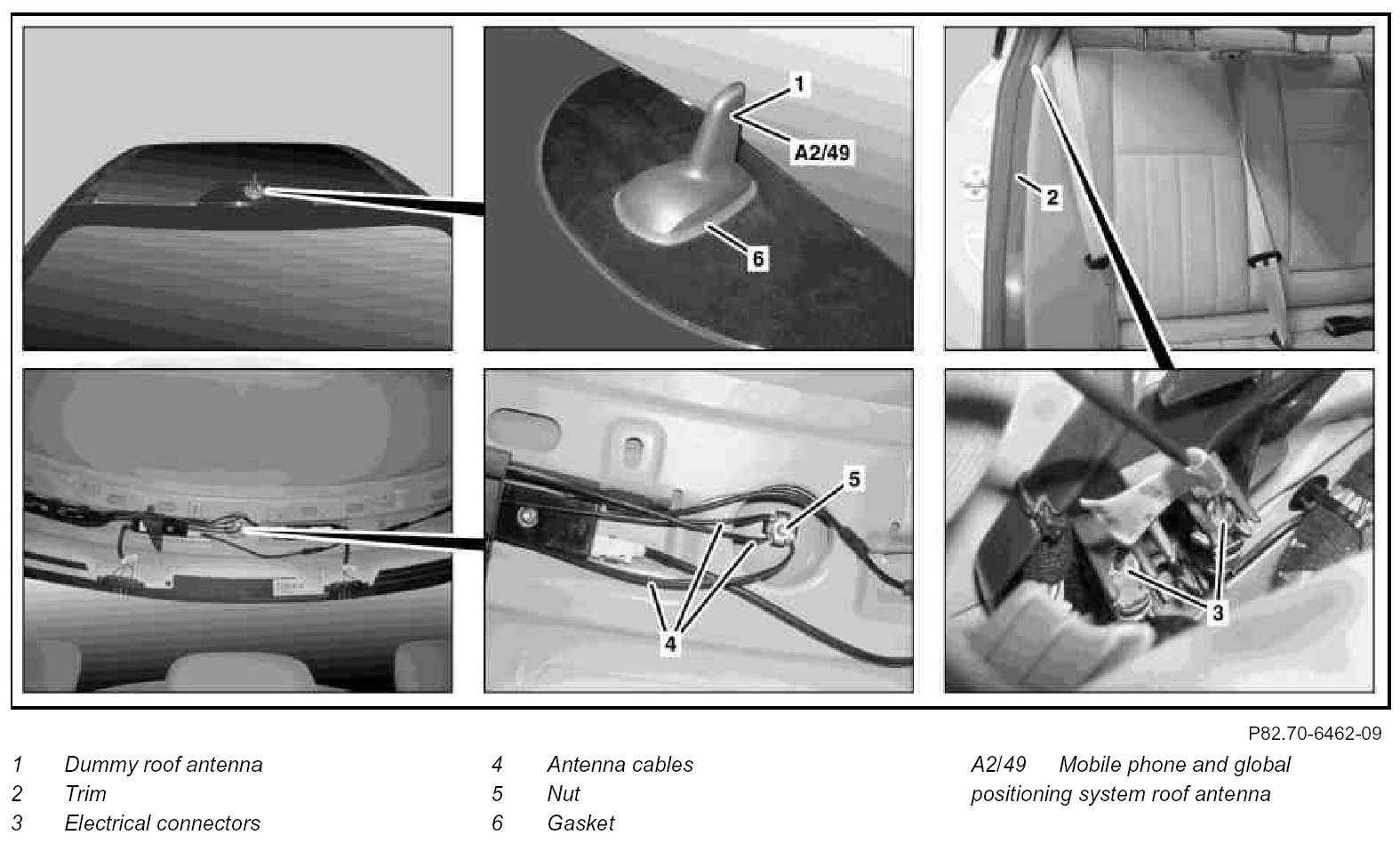

Component Identification:

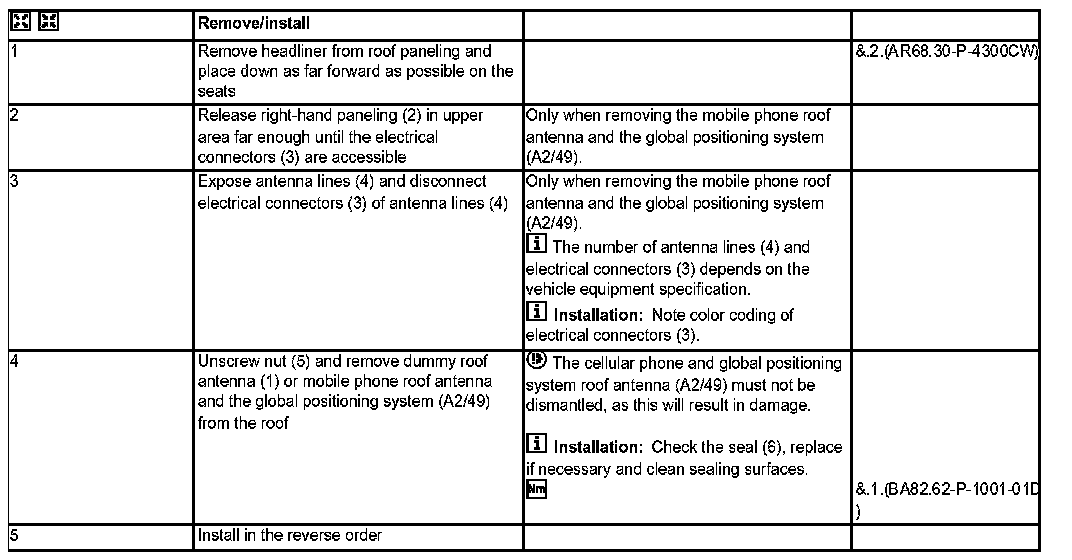

Steps 1 - 5:

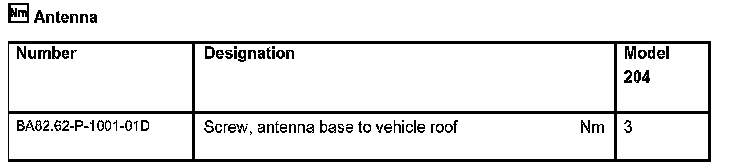

Antenna:
