Antenna, Navigation: Description and Operation

GF82.62-P-4118AZ GPS Antenna, Component Description
MODEL 204
Navigation 20 retrofit (Universal Media Interface)

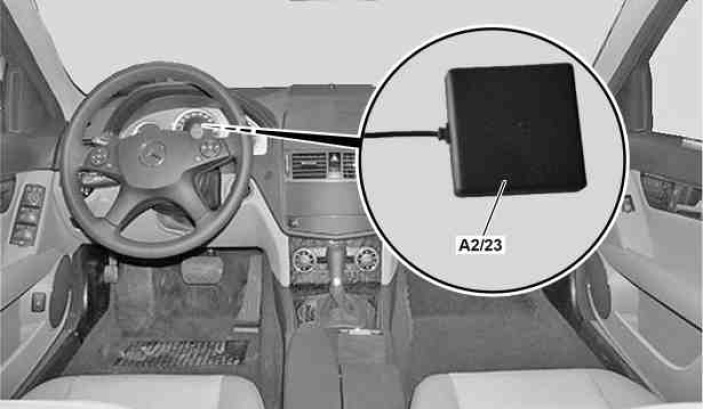

Shown on model 204.0
A2/23 GPS antenna (retrofit)

Location
In model 204.0/2/3, the GPS antenna is located in the instrument panel on the instrument cluster (A1).

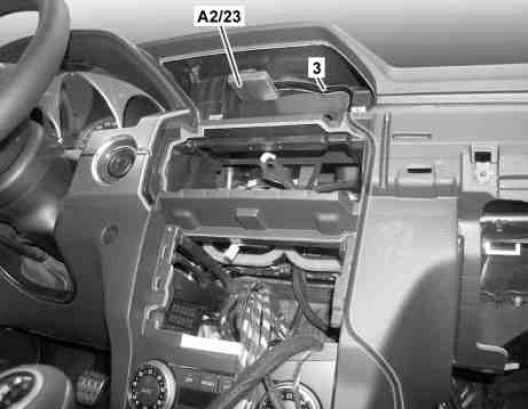

Illustrated on model 204.9
A2/23 GPS antenna (retrofit)

In model 204.9, the GPS antenna is located in the installation opening for the Audio/COMAND display (A40/8) in the rear in the upper left corner.

Task
The GPS antenna receives the signals in the microwave range of the navigation satellites and the FM signals of the Traffic Message Channel (TMC). The GPS antenna forwards the received signals via direct lines to the navigation 20 control unit (retrofit) (N125/2).
