Antenna Amplifier: Service and Repair
AR82.62-P-8300CW Remove/Install
Antenna Amplifier
Module

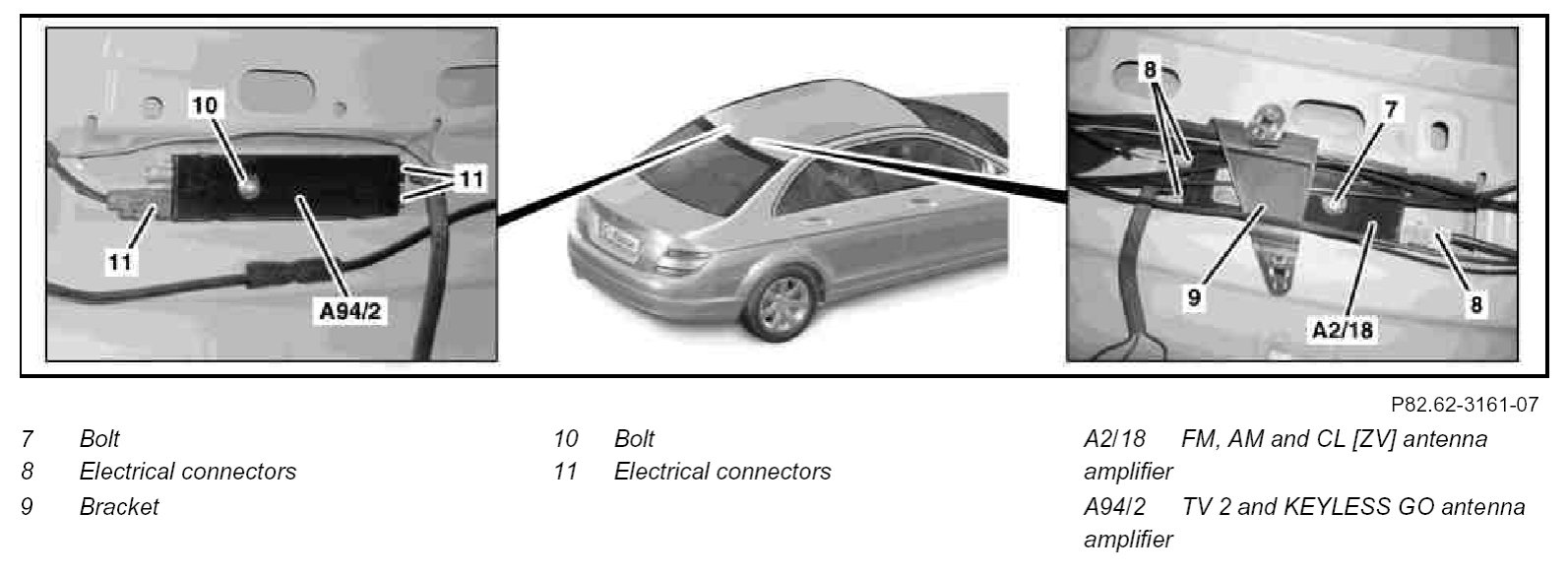

Component Identification:

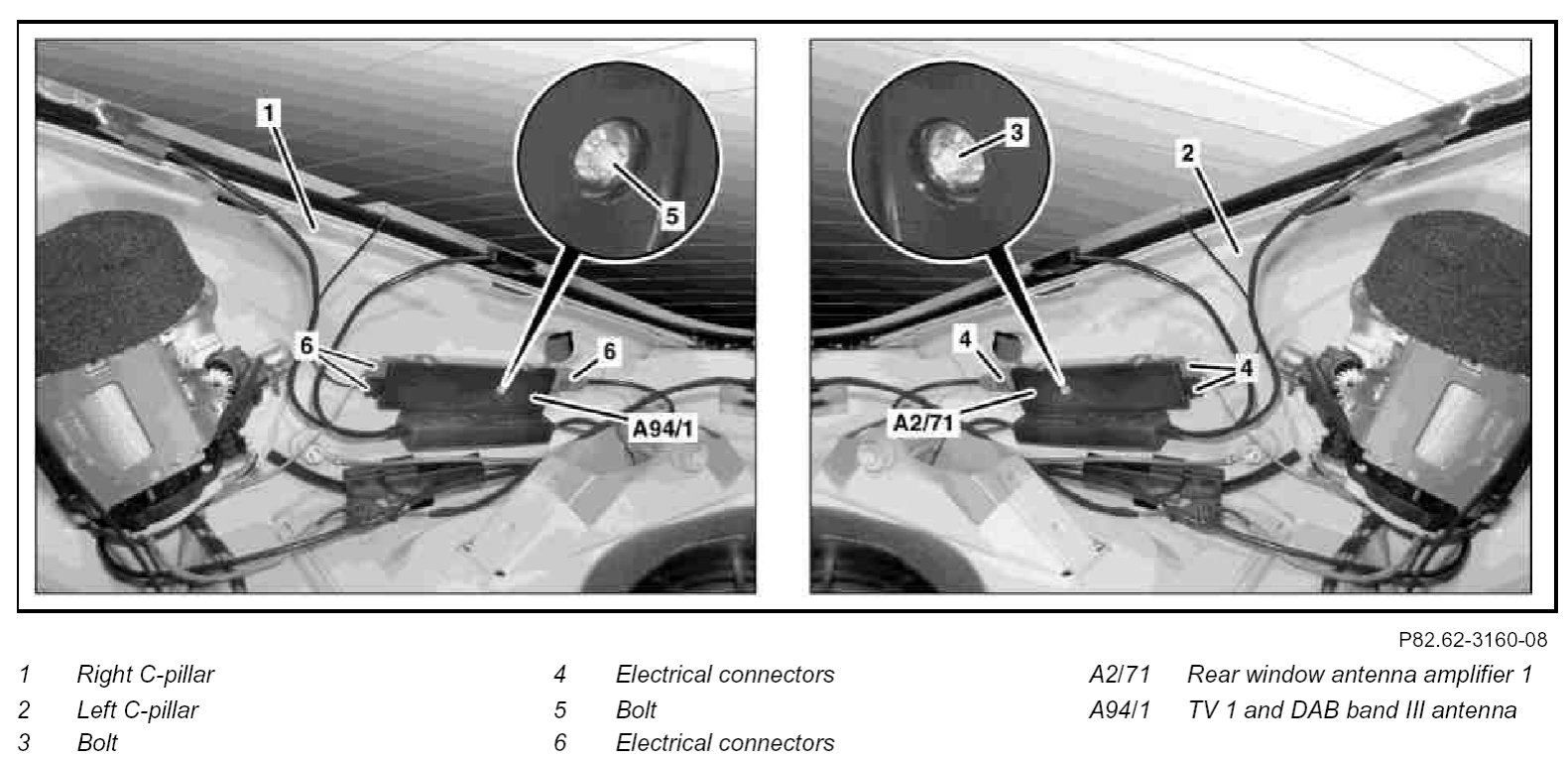

Component Identification:

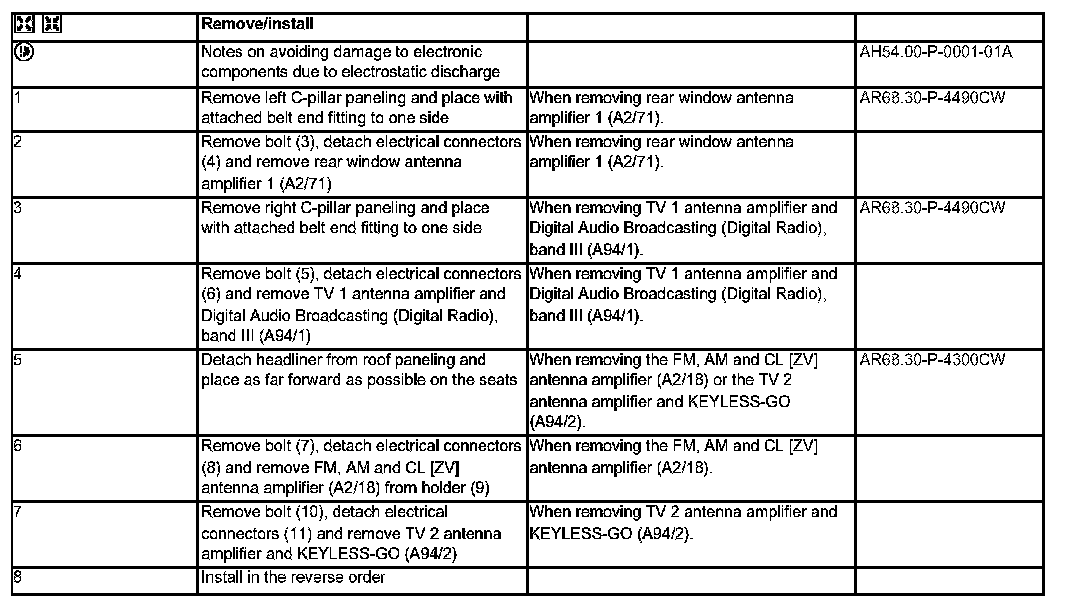

Steps 1 - 8:
