Removal and Replacement



AR82.85-P-0005CW Remove/Install Additional Fan For COMAND
- with CODE (527) COMAND APS with single DVD drive (with navgation)
- with CODE (512) COMAND APS with DVD changer

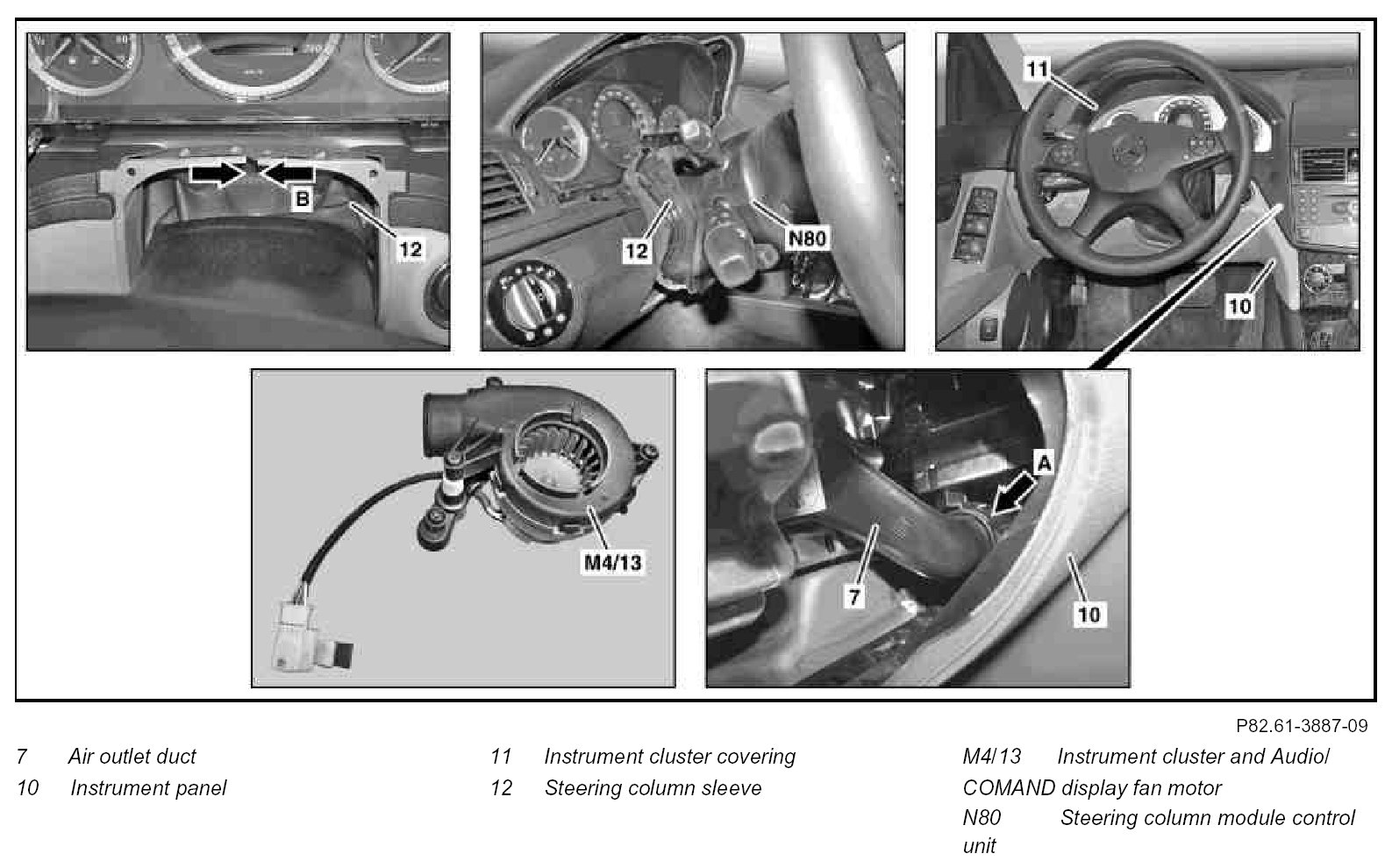

Component Identification:

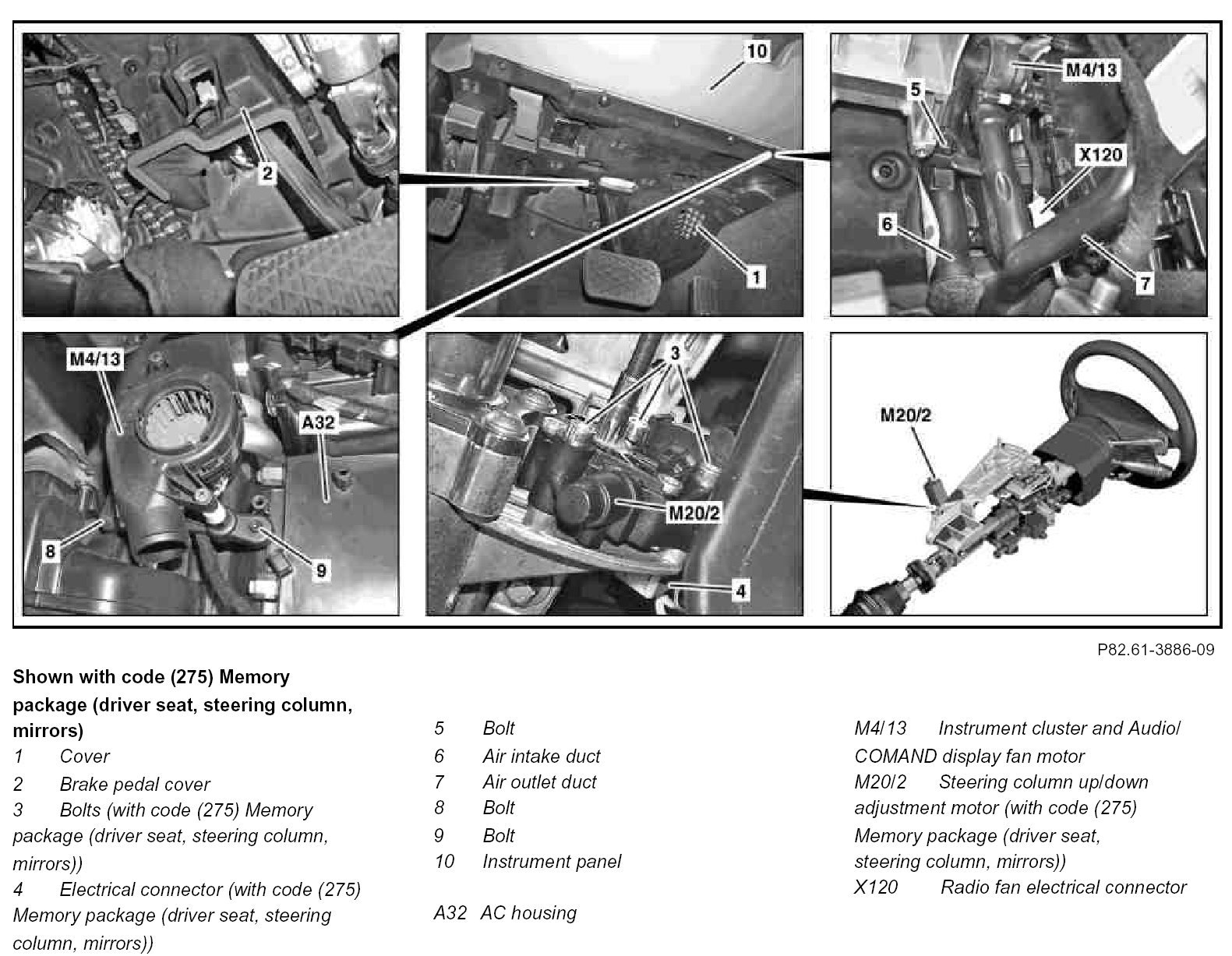

Component Identification:

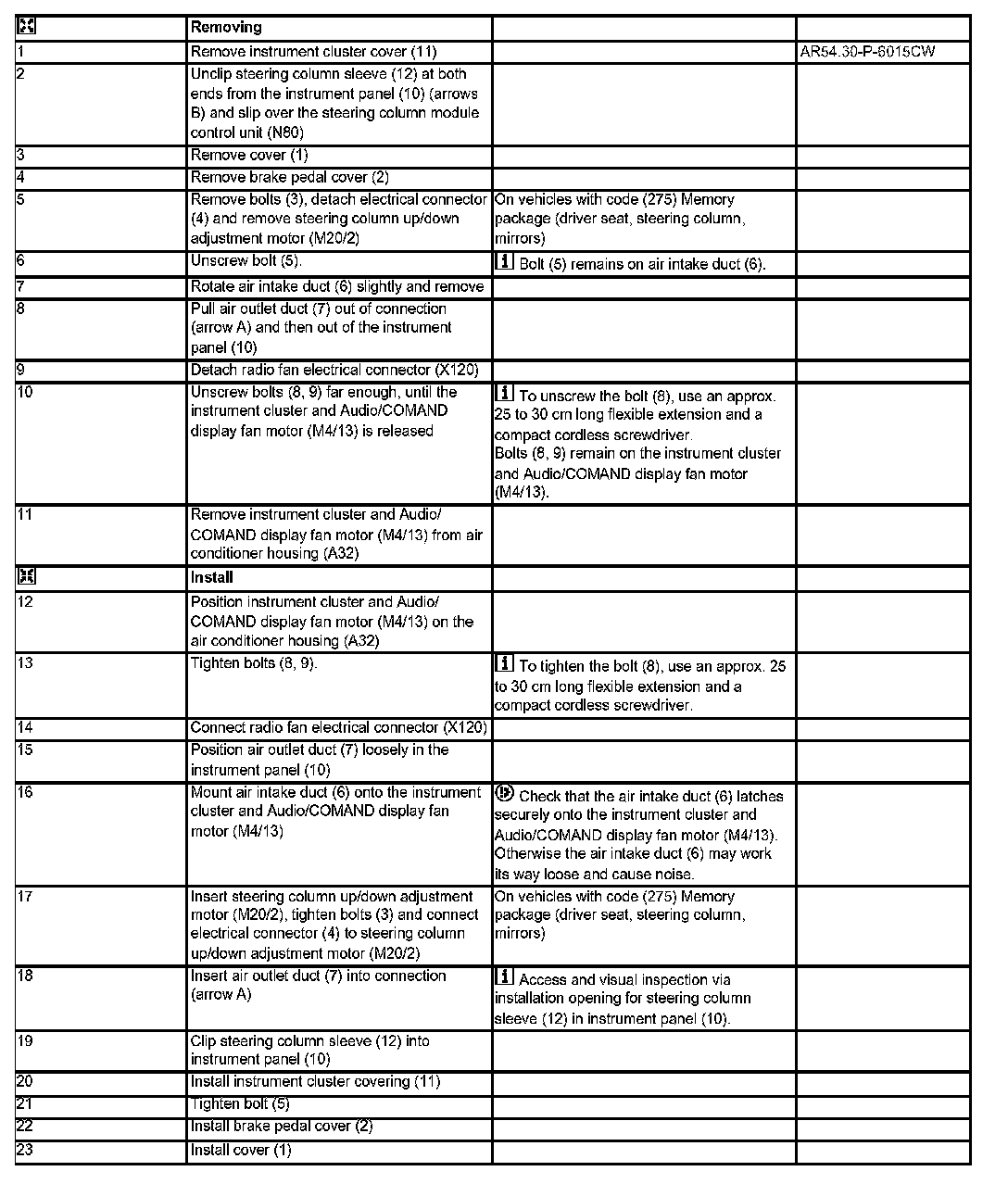

Steps 1 - 23:
