Electrical Diagrams

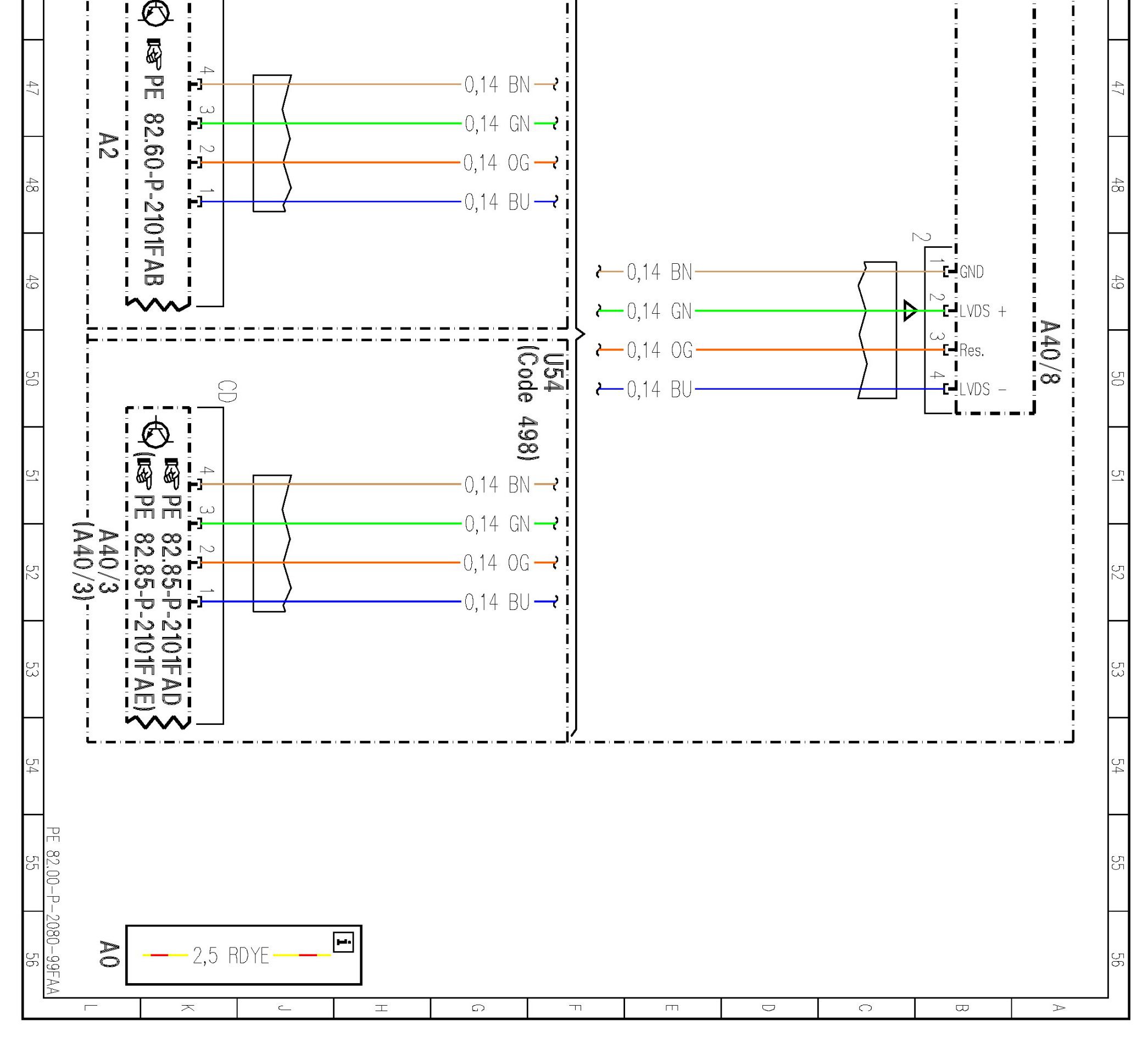

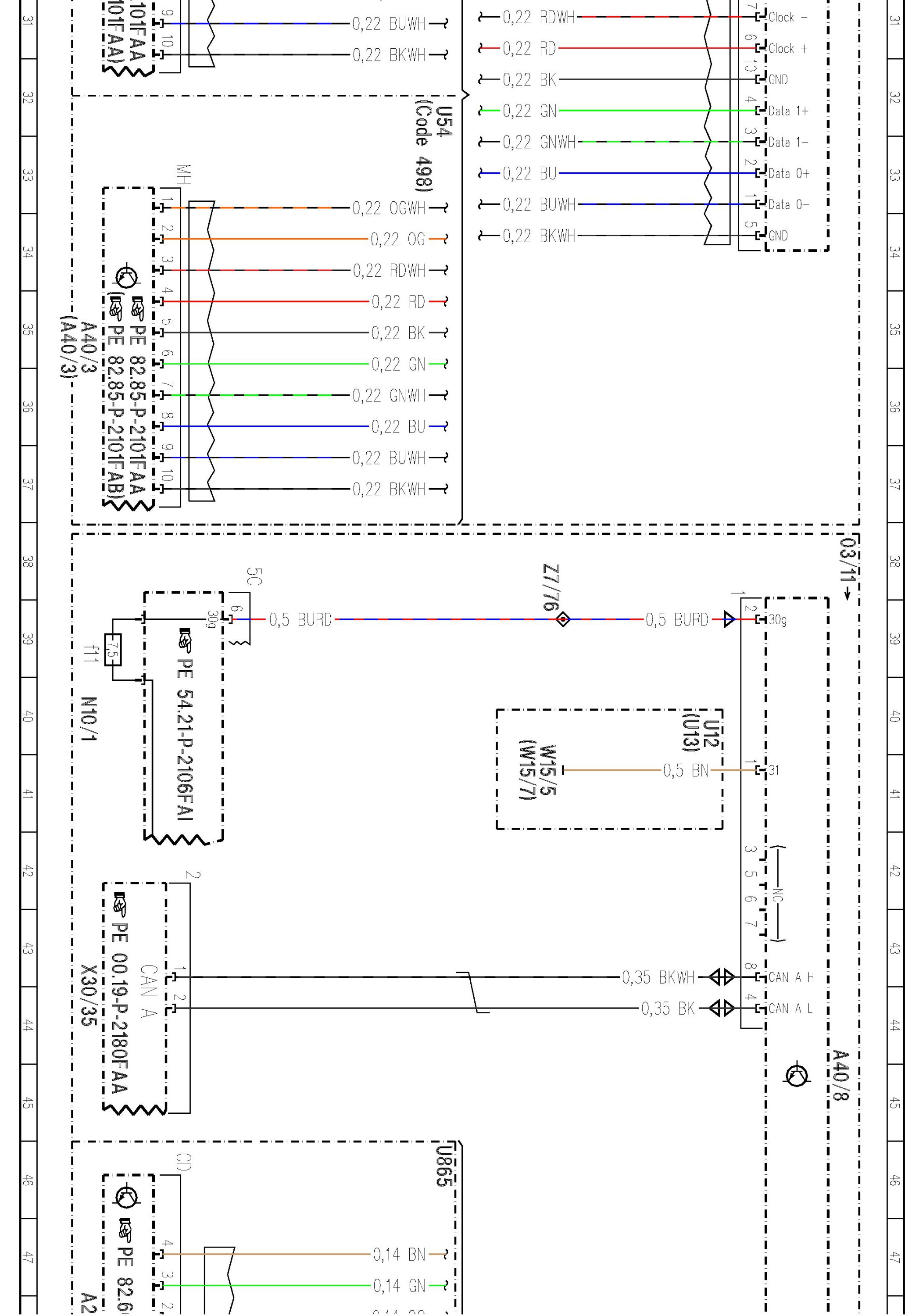

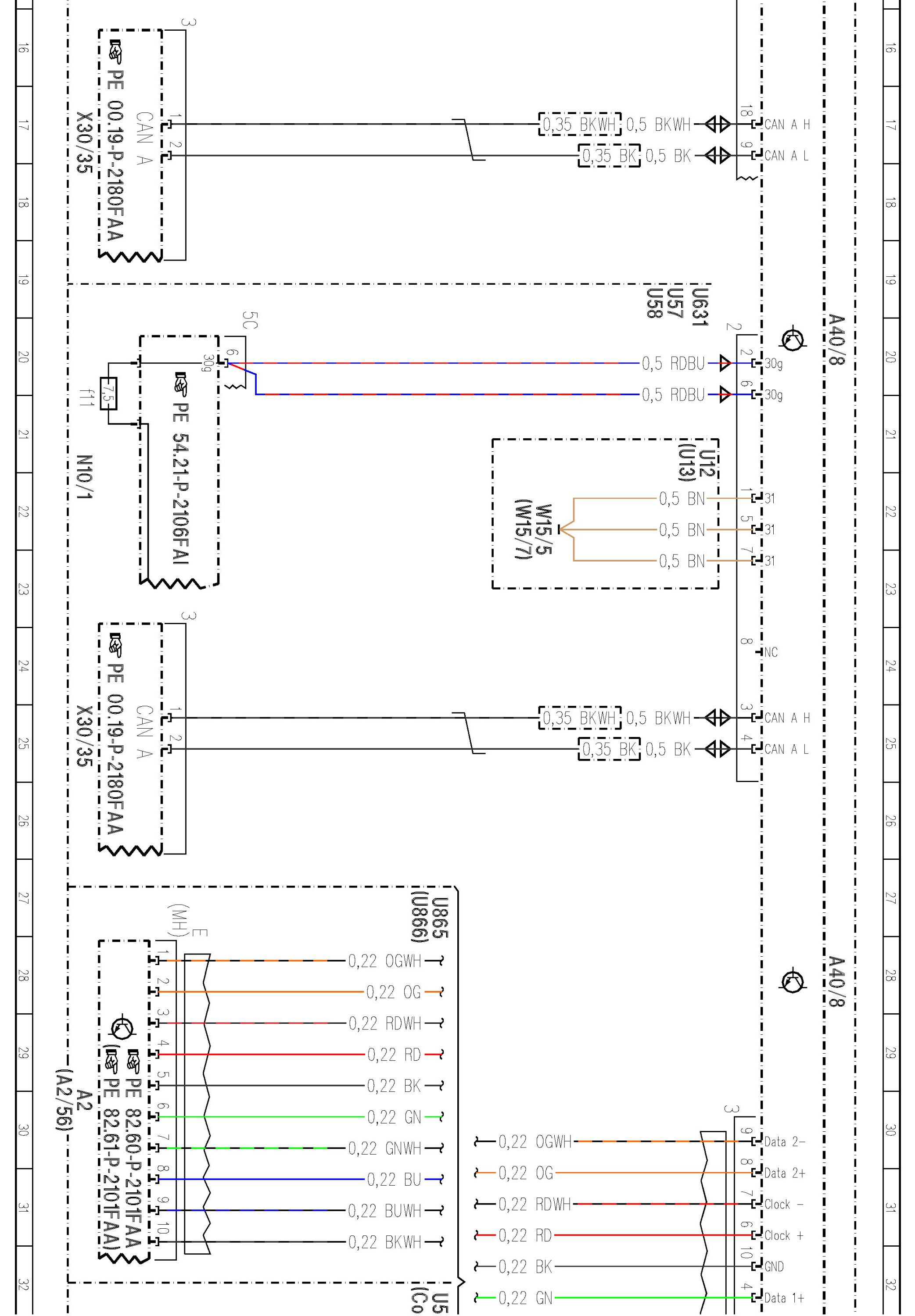

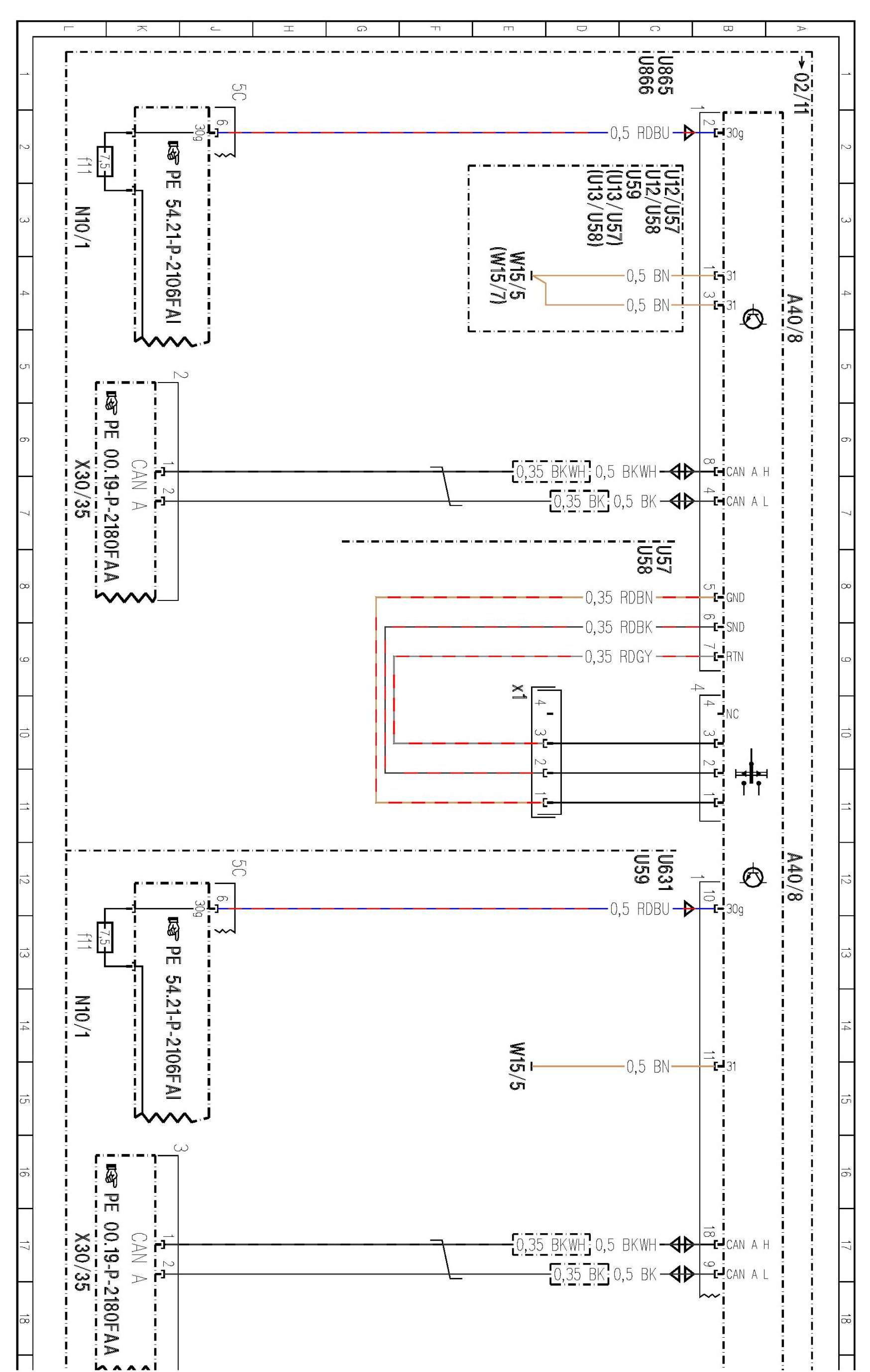

PE82.00-P-2080FAA Audio/COMAND Display

MODEL 204

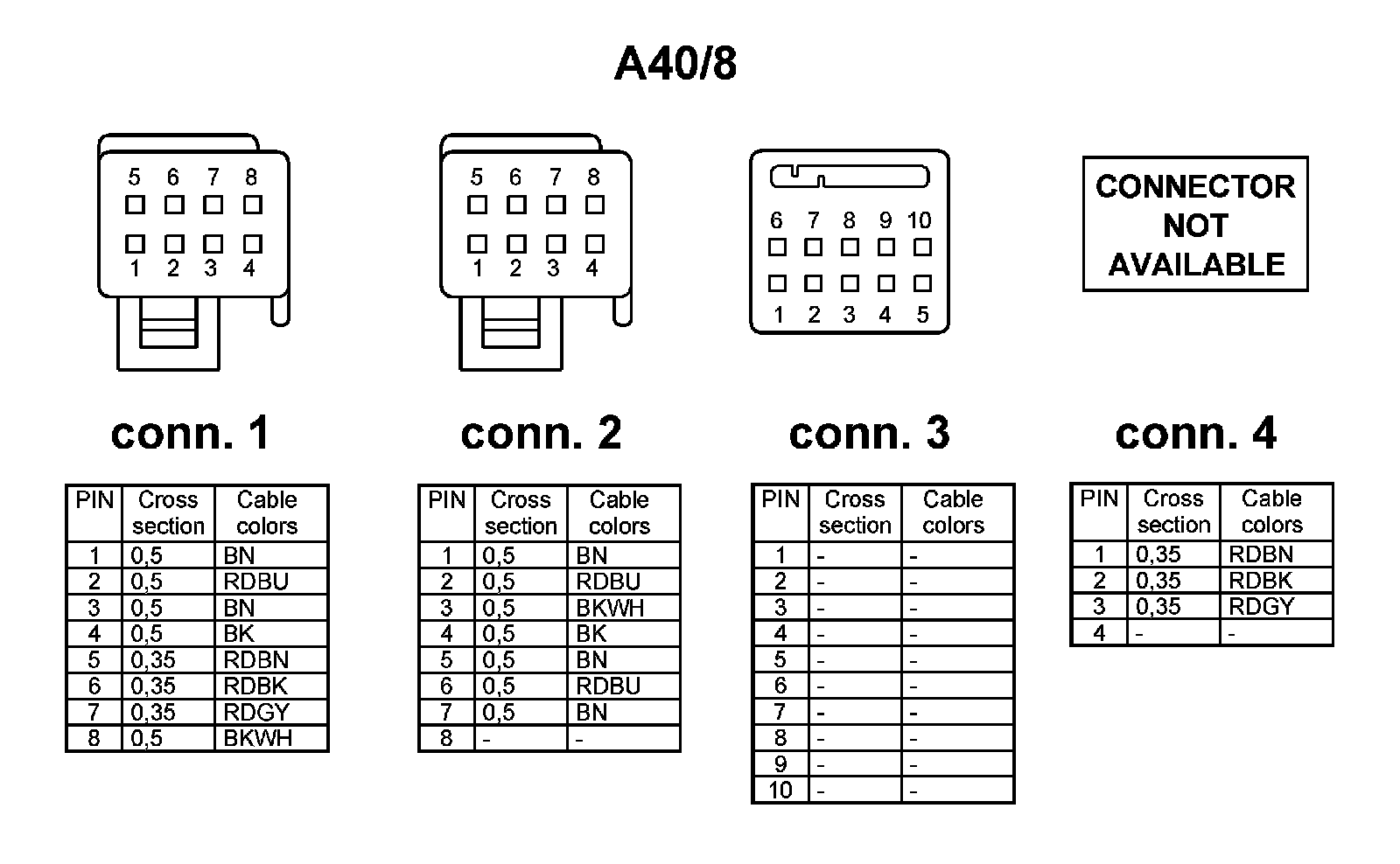

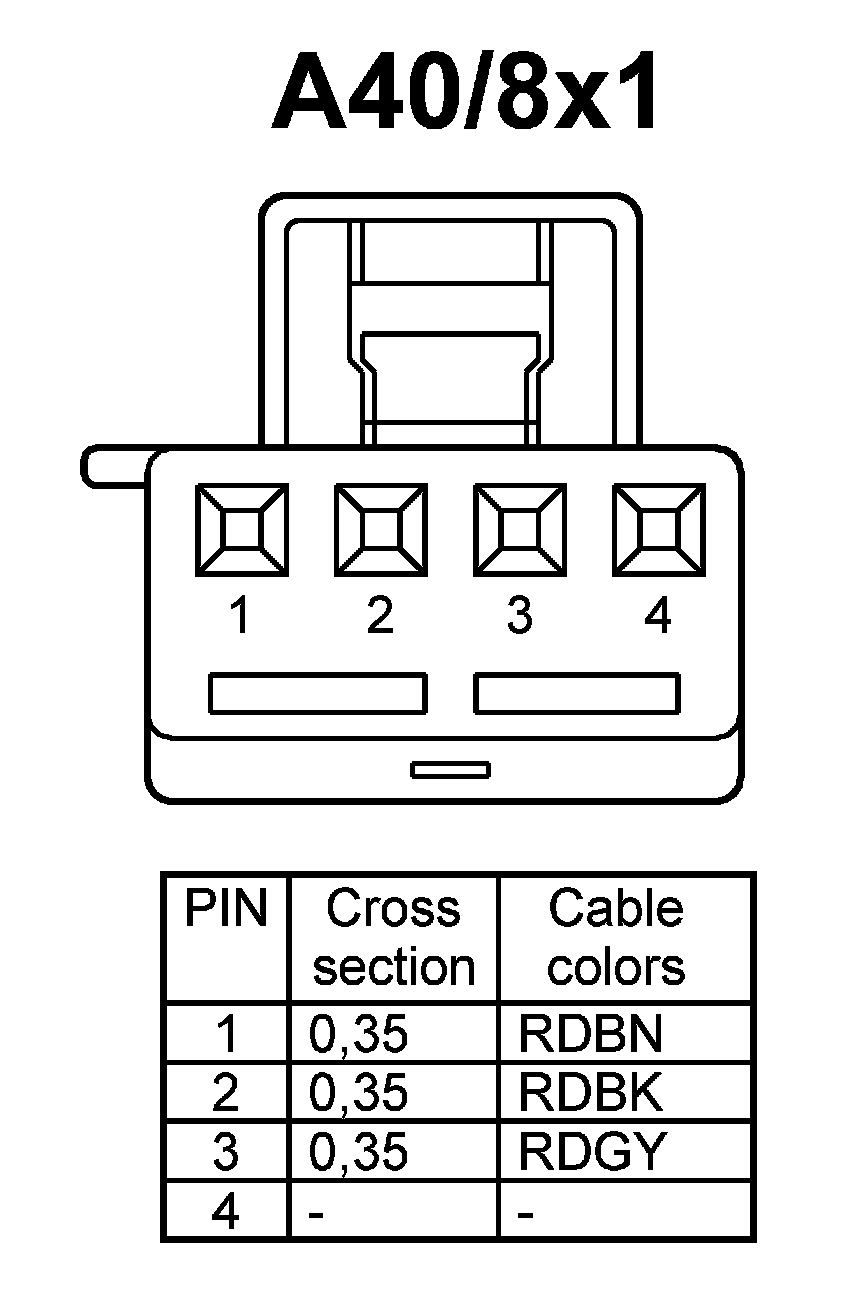

- Control unit A40/8



















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
