GF54.30-P-6150CE Component Description For Audio/Comand Display

GF54.30-P-6150CE Component Description For Audio/COMAND Display
- with CODE (510) Audio 20 with CD changer
- with CODE (511) Audio 50 APS with DVD changer
- with CODE (512) COMAND APS with DVD changer
- with CODE (523) MB Audio 20 radio
- with CODE (525) MB Audio 50 APS radio
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (528) COMAND with DVD changer

Component Identification:

Location

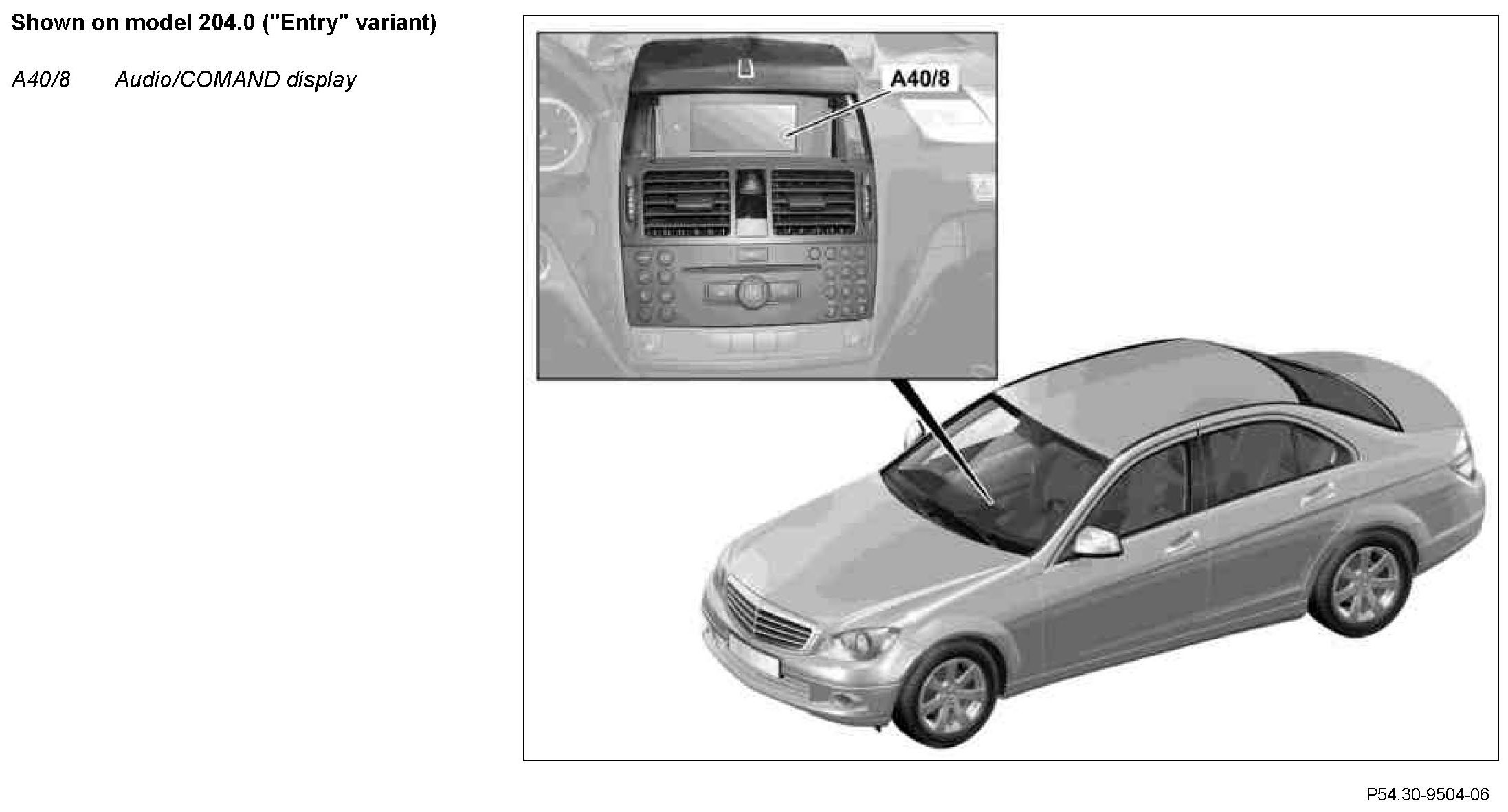

The Audio/COMAND display is fitted centrally on top of the dashboard.

Component Identification:

Location

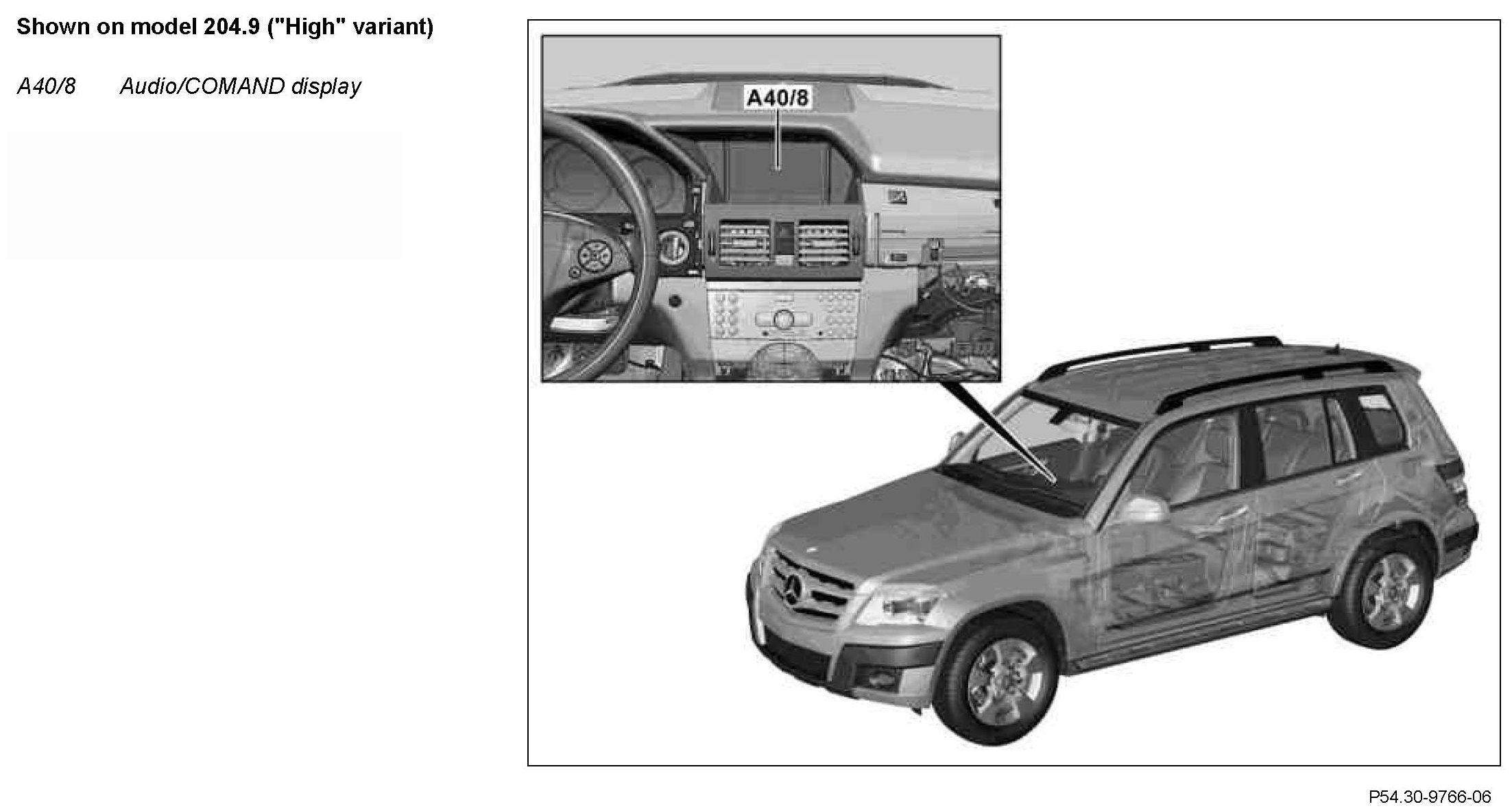

The Audio/COMAND display is fitted centrally on top of the dashboard.

Component Identification:

Location

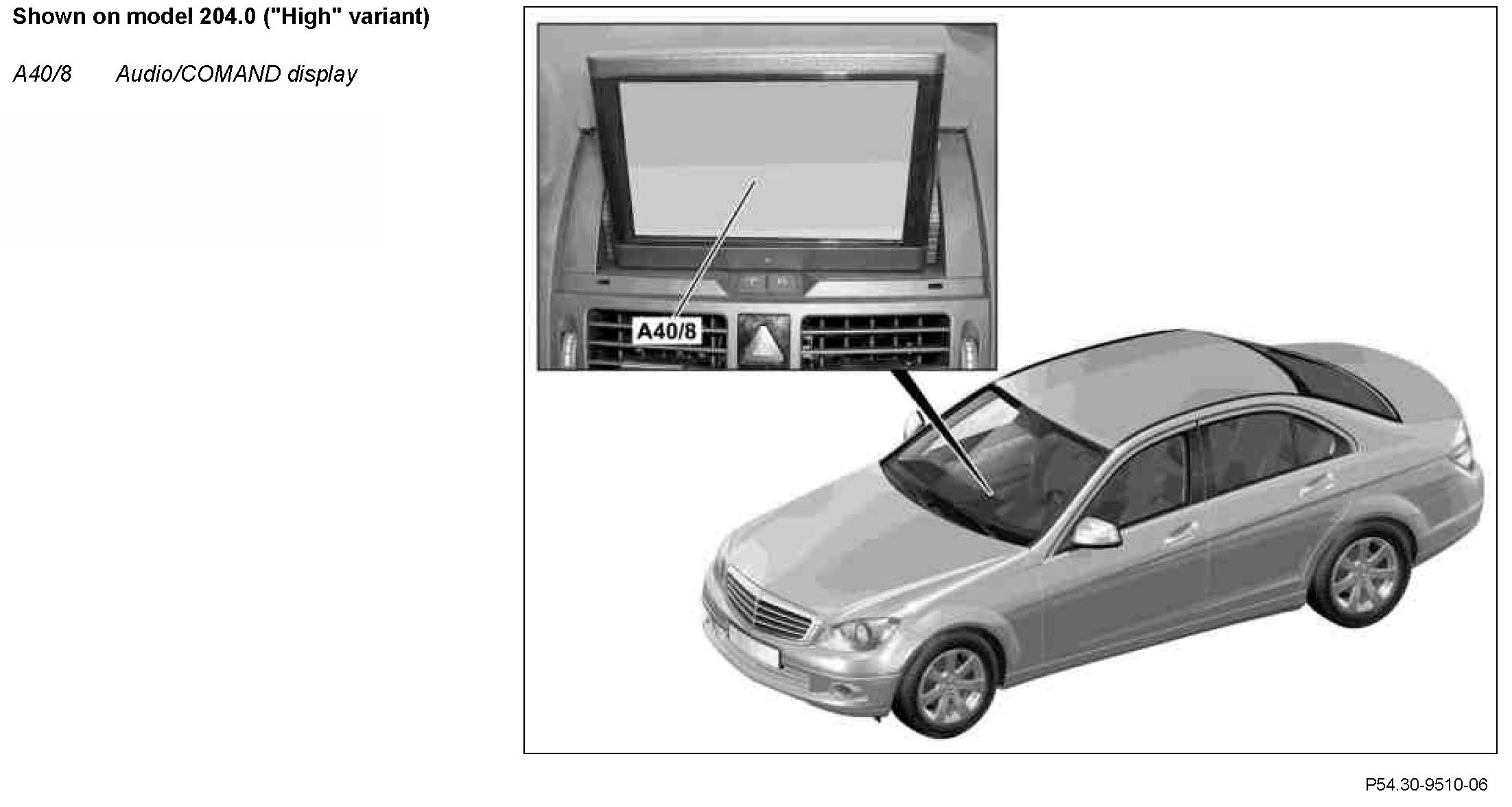

The Audio/COMAND display is fitted centrally on top of the dashboard.

Depending on the equipment installed one of the following control units will be installed, hereafter referred to as the "audio unit":
- Radio (A2), with code (510) Audio 20 with CD changer, with code (523) MB Audio 20 radio
- Radio with Auto-Pilot system (A2/56), with code (511) Audio 50 APS including DVD changer or with code (525) Radio MB Audio 50 APS
- Comand controller unit (A40/3), with code (512) COMAND APS incl. DVD changer, with code (527) COMAND APS with single DVD drive (with navigation) or with code (528) COMAND incl. DVD changer

Task
The Audio/COMAND display does the following:
^ Standard display of application-relevant navigation, control and information windows

Standard display of application-relevant navigation, control and information windows
The input factors are read in and displayed via the following connections:
^ Direct inputs
^ Controller Area Network (data bus/CAN bus) (CAN)
^ Low voltage differential signal (LVDS) connection

Direct inputs
The Audio/COMAND display has the following connections:
- Circuit 30g
- Circuit 31

CAN
The exchange of control data with the individual components as well as diagnosis takes place via telematics CAN (CAN A).

LVDS connection
This standardized digital interface is used to receive picture and video information from the "audio equipment".

The Audio/COMAND display is also equipped with an additional short LVDS line adapter inside the display unit, which has been optimized in terms of its properties for the movement of the display.

Design
Depending on the equipment variant either a fixed 5"-TFT [thin film transistor] color screen with a resolution of 277 x 124 x 3 (RGB [red-green-blue]) pixels or a movable (in 2 stages each of 3°, can be swiveled about the horizontal axis) or fixed 7"-TFT-color screen in format 16:9 with a resolution of 800 x 480 x 3 (RGB) is fitted.

Function
The display and menu display are transmitted digitally over an LVDS line by the "audio equipment" and shown on the Audio/ COMAND display.

Variants
"Entry" variant:
- Fixed 5"-TFT color screen with a resolution of 277 x 124 x 3 (RGB) pixels, with code (510) Audio 20 with CD changer, with code (523) MB Audio 20 radio, with code (511) Audio 50 APS incl. DVD changer, with code (525) MB Audio 50 APS radio

"High" variant:
- Movable (in 2 stages each of 3° can be swiveled about the horizontal axis) 7"-TFT-color screen in format 16:9 with a resolution of 800 x 480 x 3 (RGB) pixels, model 204.0/2 with code (512) COMAND APS inclusive DVD changer, with code (527) COMAND APS with single DVD drive (with navigation) or with code (528) COMAND incl. DVD changer
- Fixed 7"-TFT-color screen in format 16:9 with a resolution of 800 x 480 x 3 (RGB) pixels, model 204.9 with code (512) COMAND APS incl. DVD changer, with code (527) COMAND APS with single DVD drive (with navigation) or with code (528) COMAND incl. DVD changer
