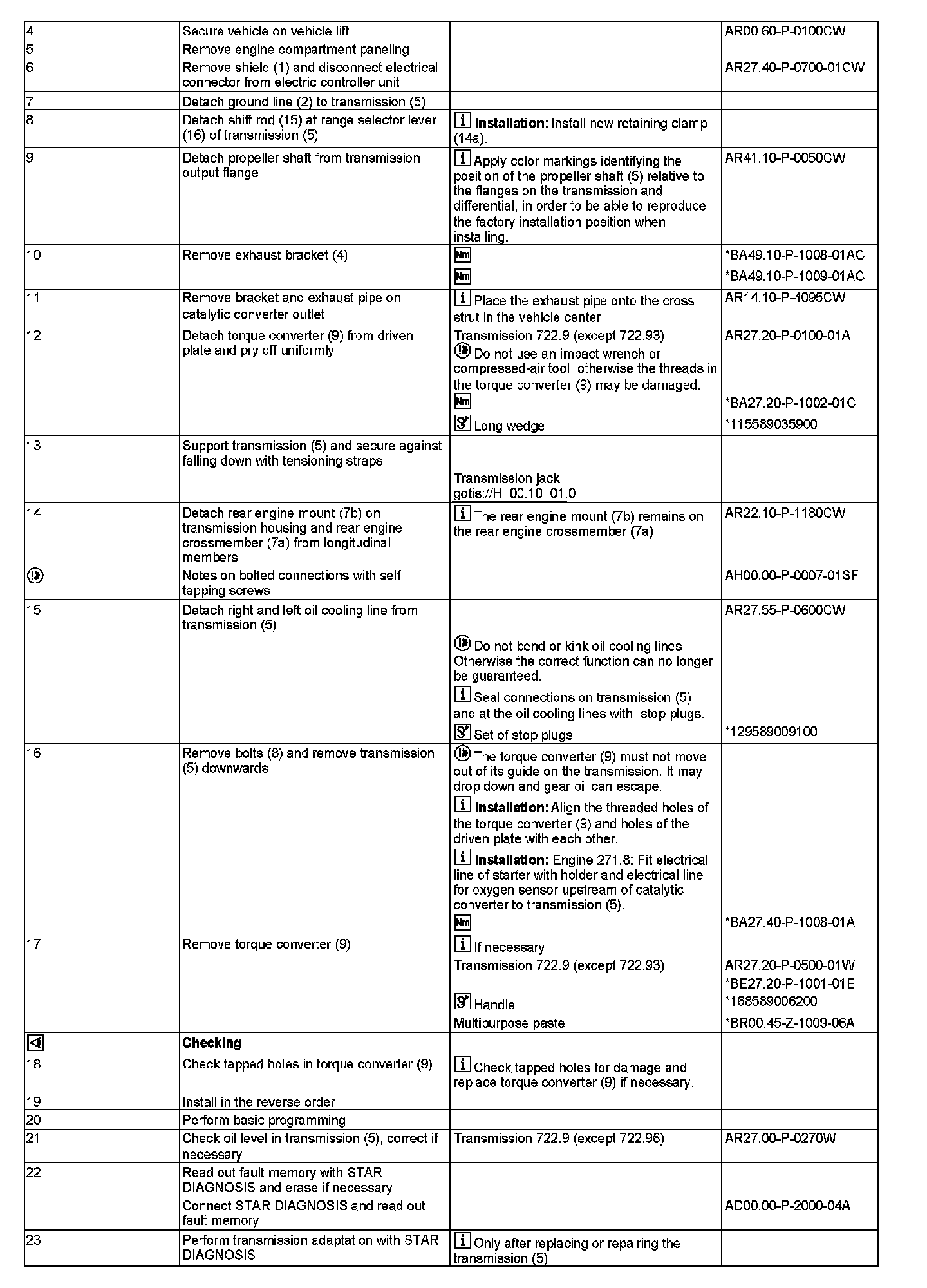

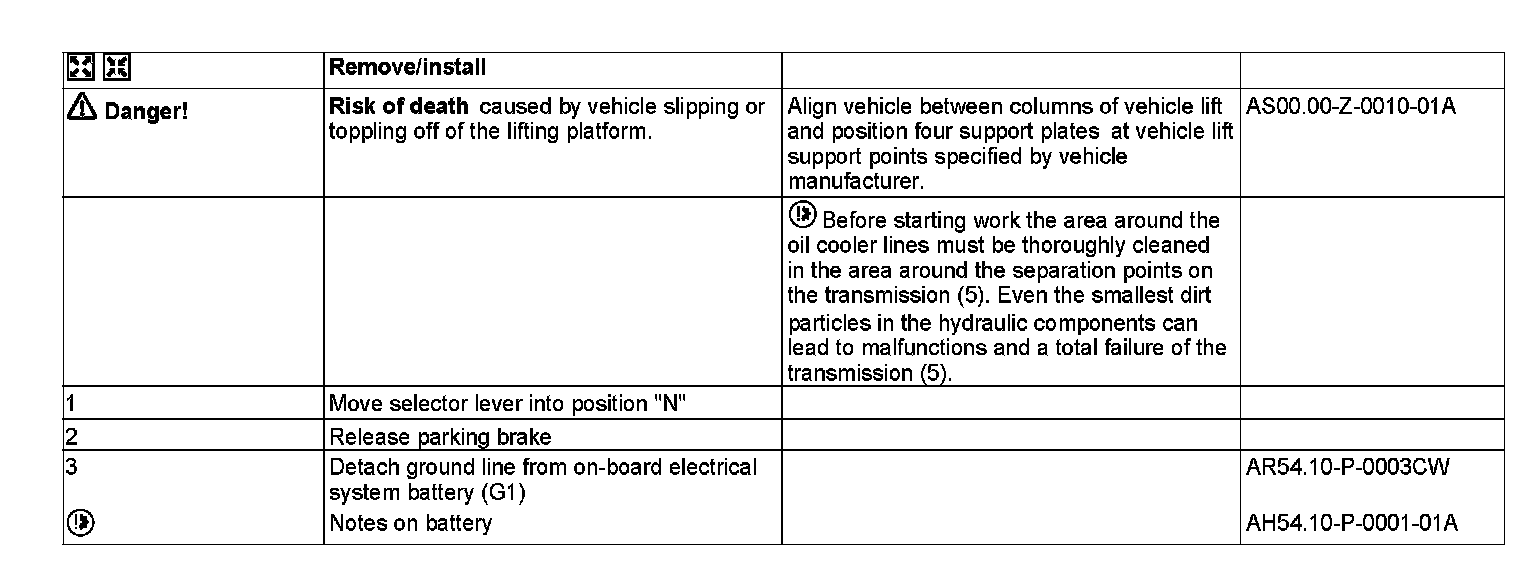

AR27.10-P-0500CWA Remove/Install Transmission With Torque Converter

AR27.10-P-0500CWA Remove/Install Transmission With Torque Converter
TRANSMISSION 722.9 in MODEL 204.04 /24 /34 with ENGINE 271





1 Shield
2 Ground cable

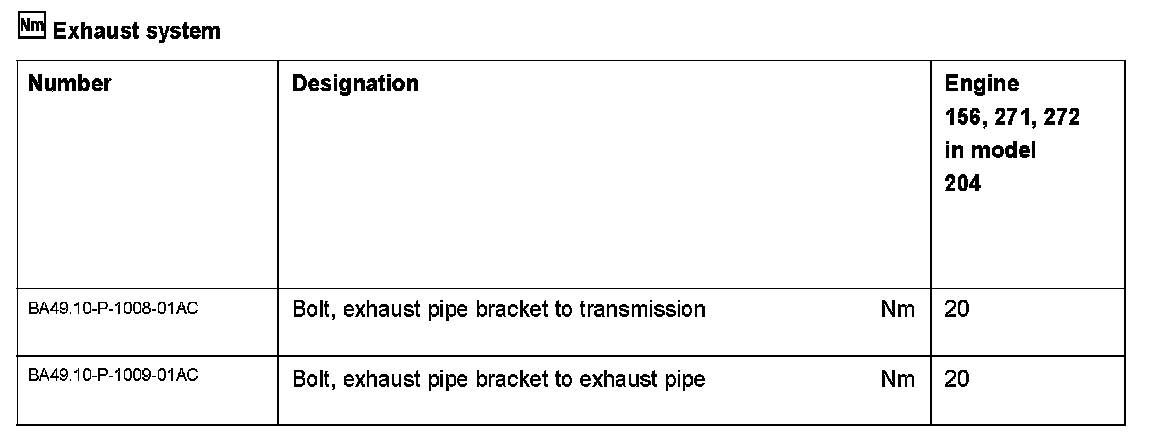

4 Exhaust bracket
5 Transmission
7a Rear engine crossmember
7b Rear engine mount
14a Retaining clamp
14b Fuse
15 Shift rod
16 Range selector lever

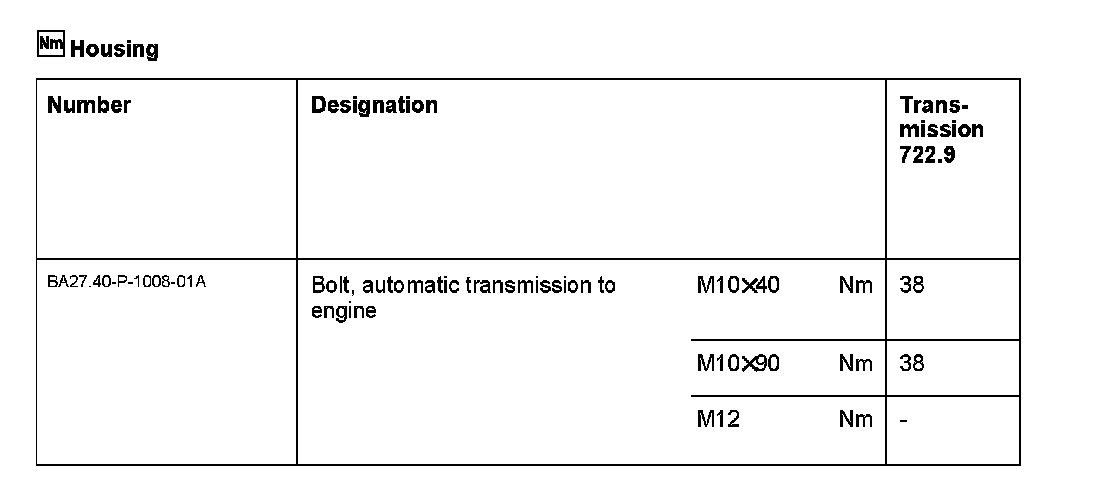

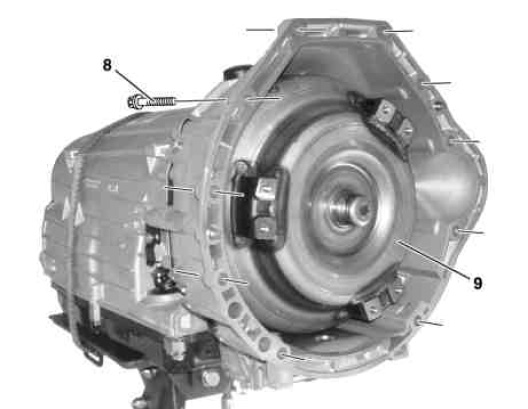

8 Screw

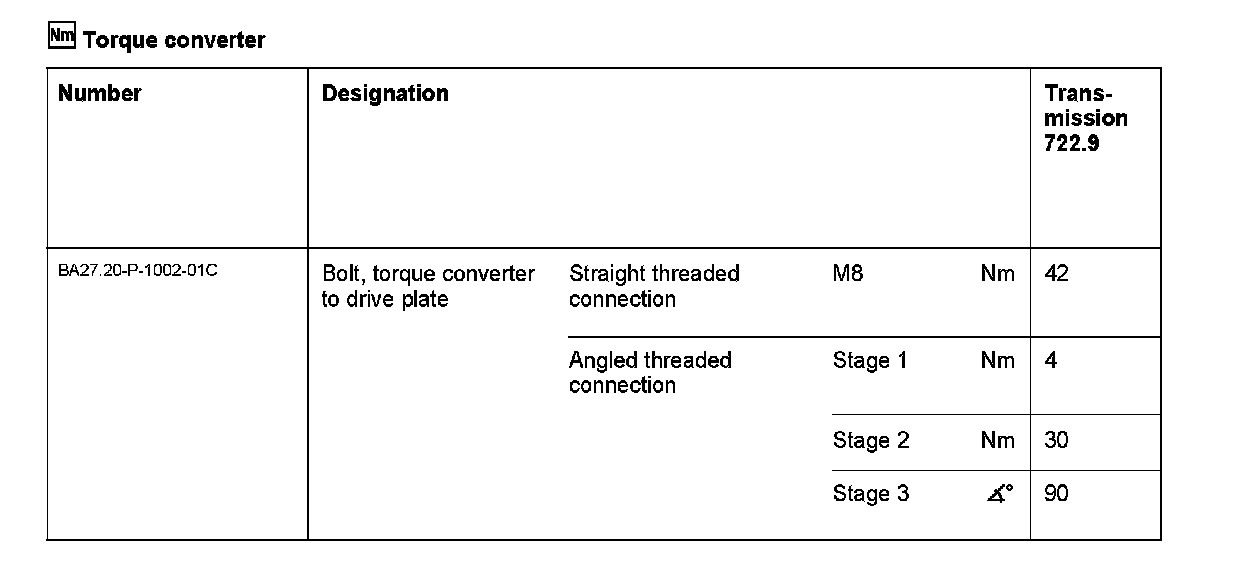

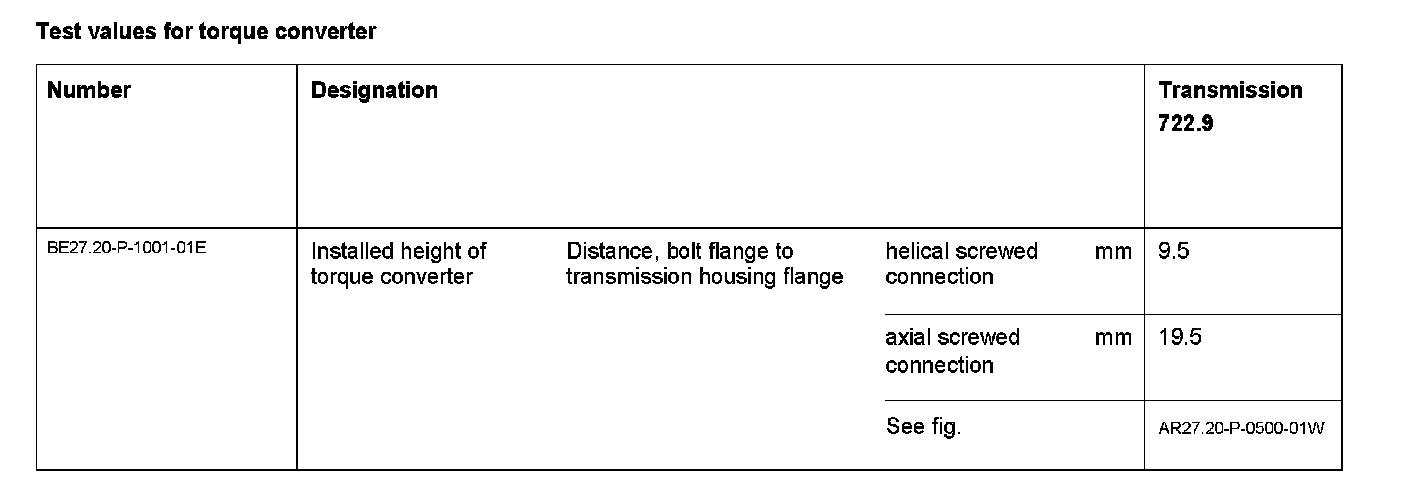

9 Torque converter


























115 589 03 59 00
Long wedge





129 589 00 91 00
Set of stop plugs





168 589 00 62 00
Grab handle
