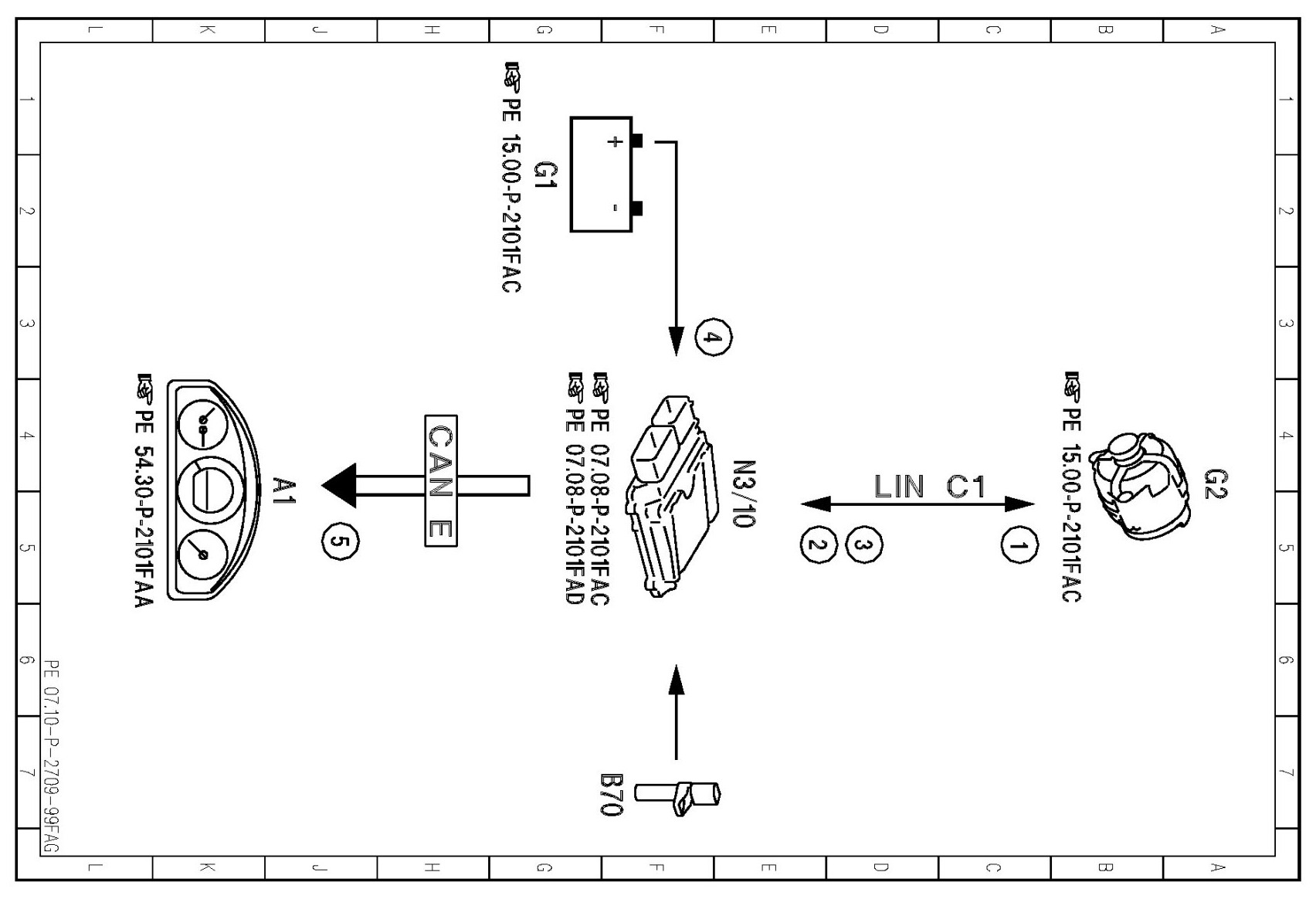

PE07.10-P-2709FAG Electrical Function Schematic, Alternator Interface

PE07.10-P-2709FAG Electrical Function Schematic, Alternator Interface

ENGINE 271.8 in MODEL 204























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
