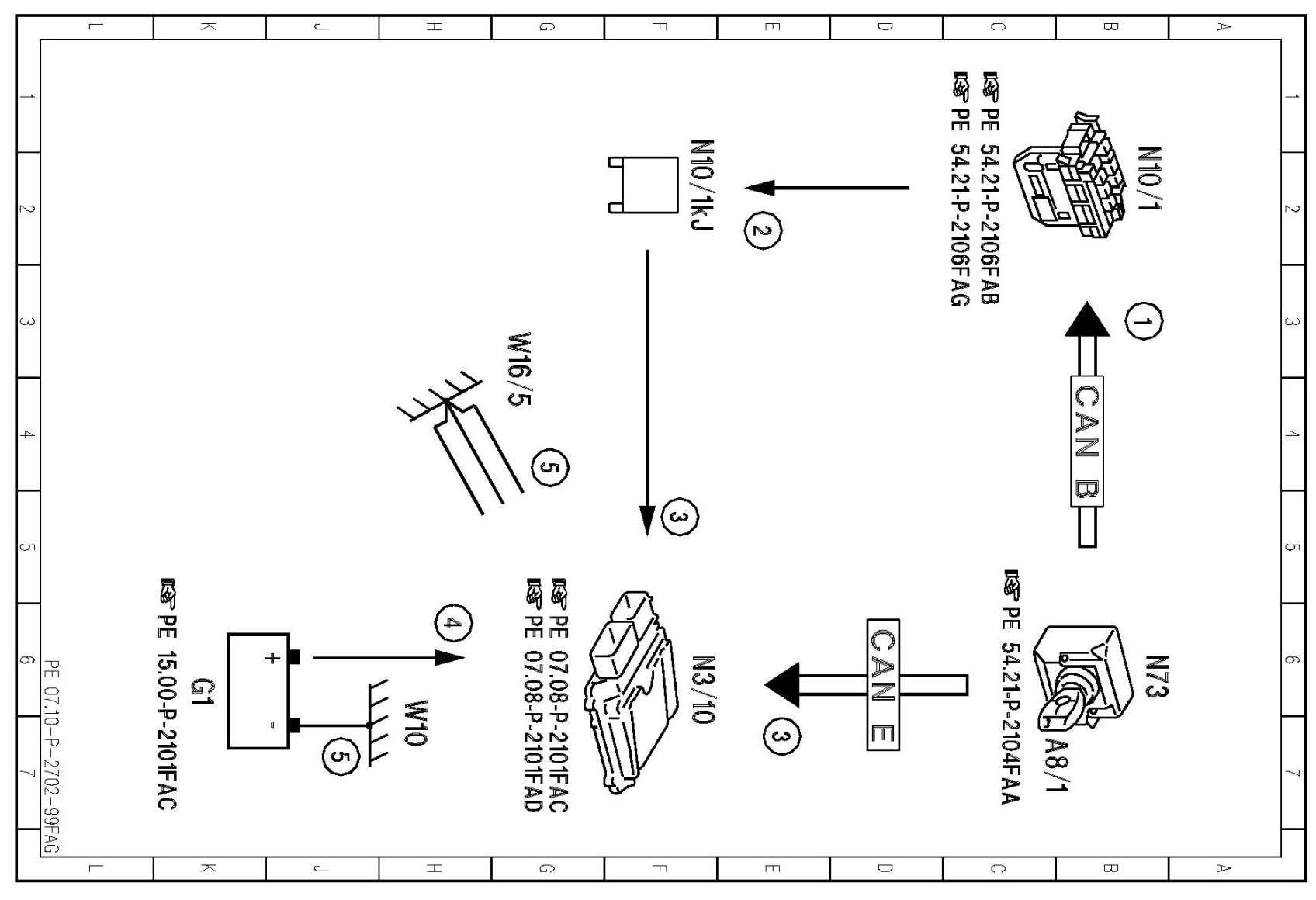

PE07.10-P-2702FAG Electrical Function Diagram For Ignition OFF

PE07.10-P-2702FAG Electrical Function Diagram For Ignition OFF

ENGINES 271.8 in MODEL 204























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
