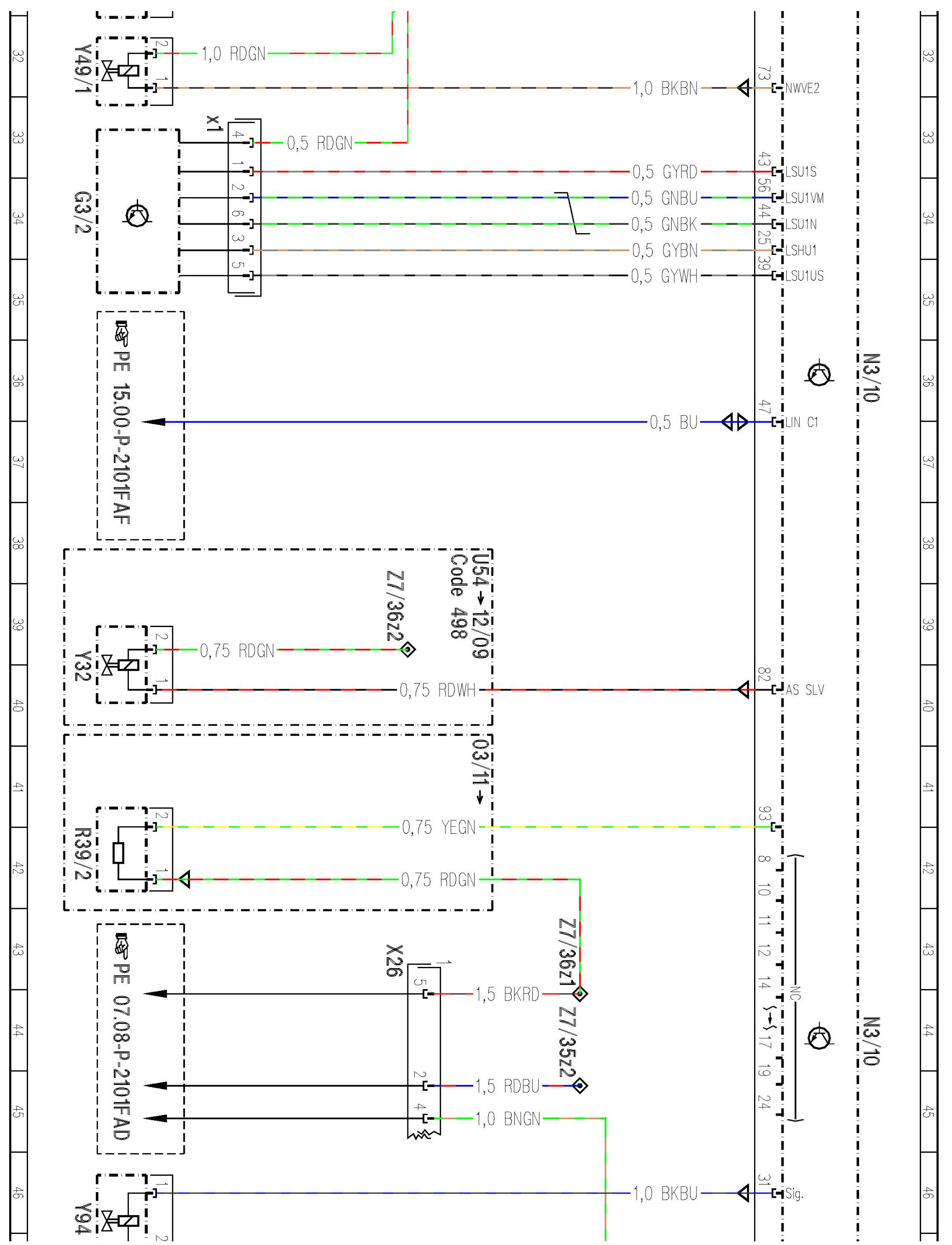

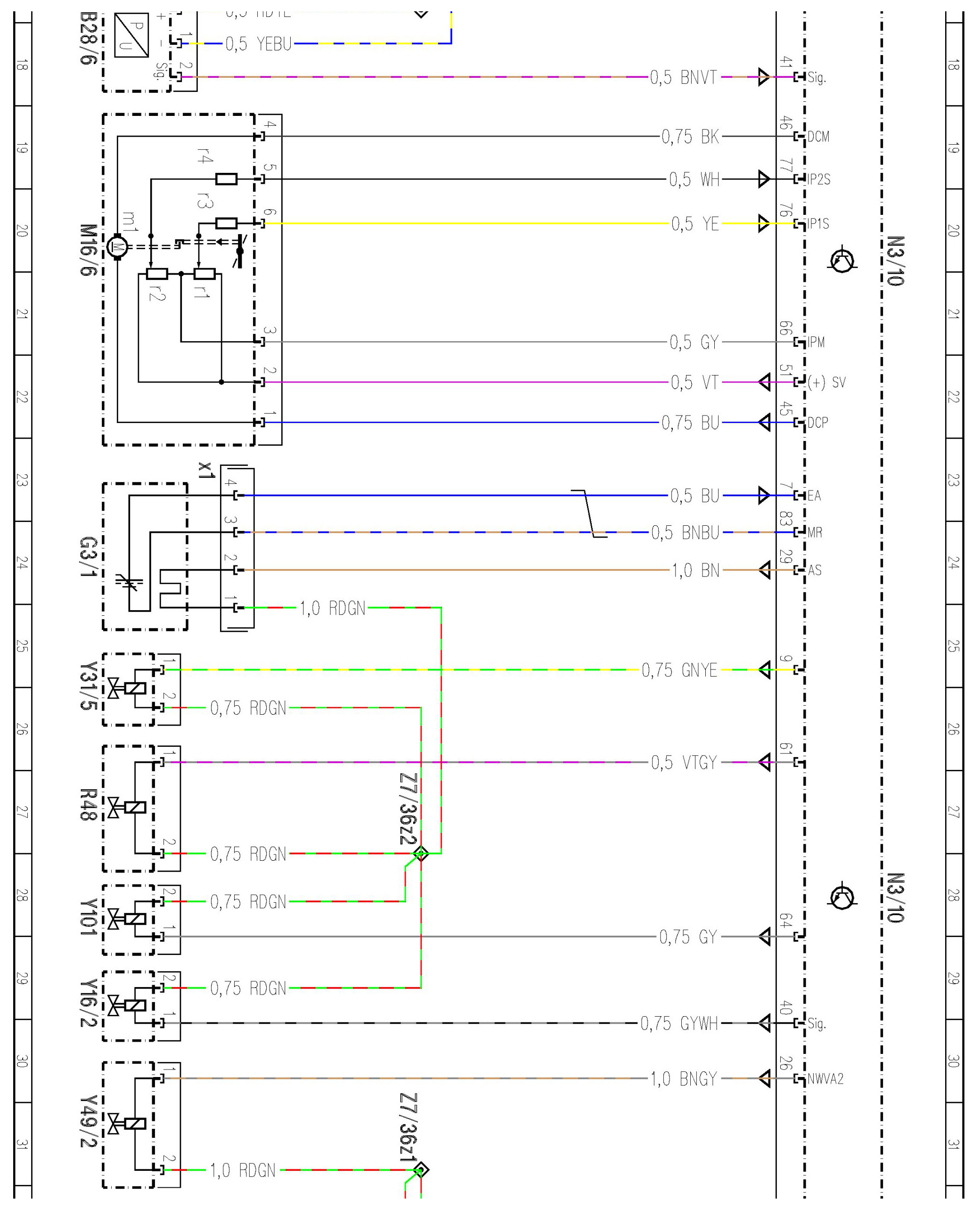

PE07.08-P-2101FAC Gasoline Direct Injection System Control Unit

PE07.08-P-2101FAC Gasoline Direct Injection System Control Unit

ENGINES 271.8 in MODEL 204.0 /2 /3

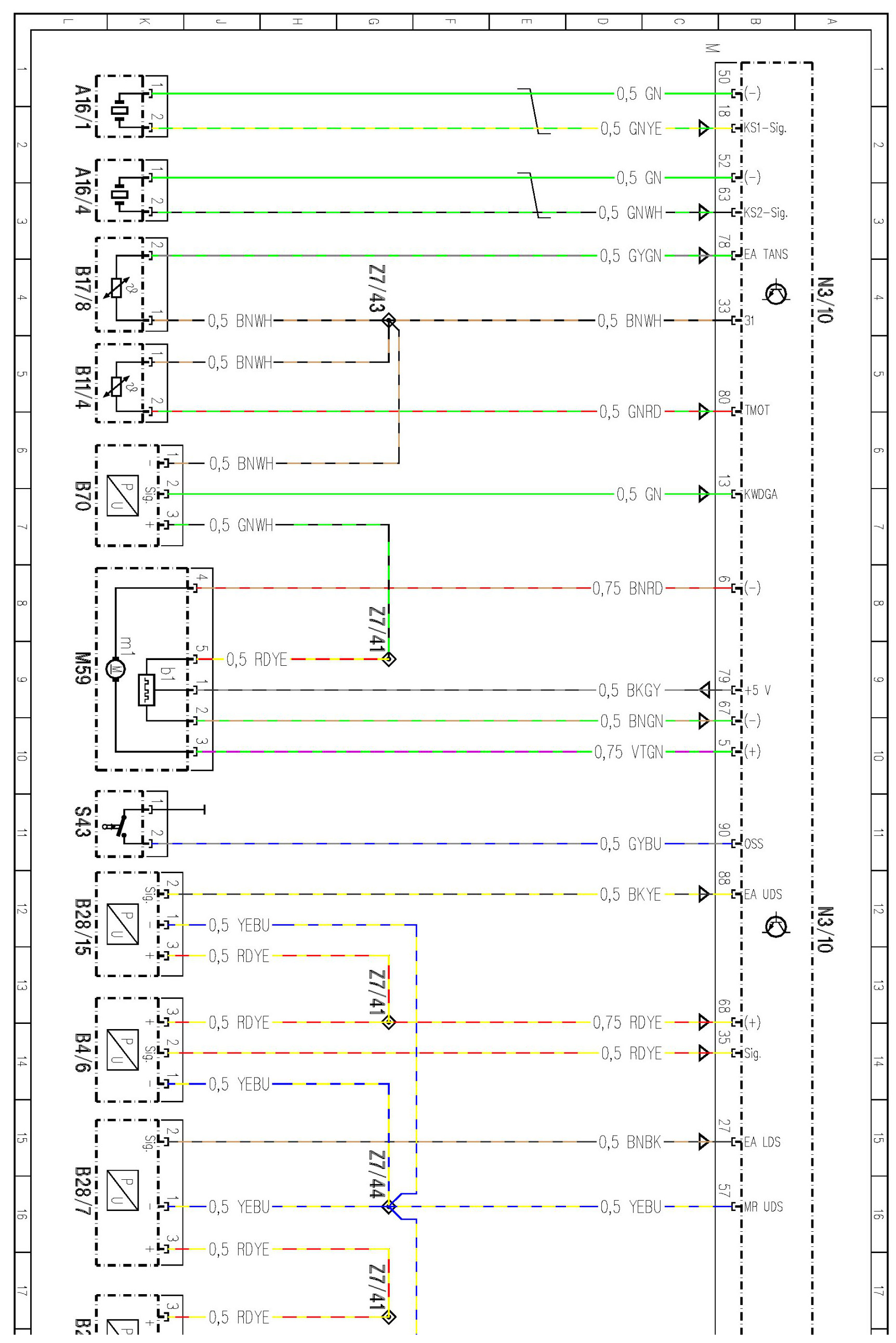

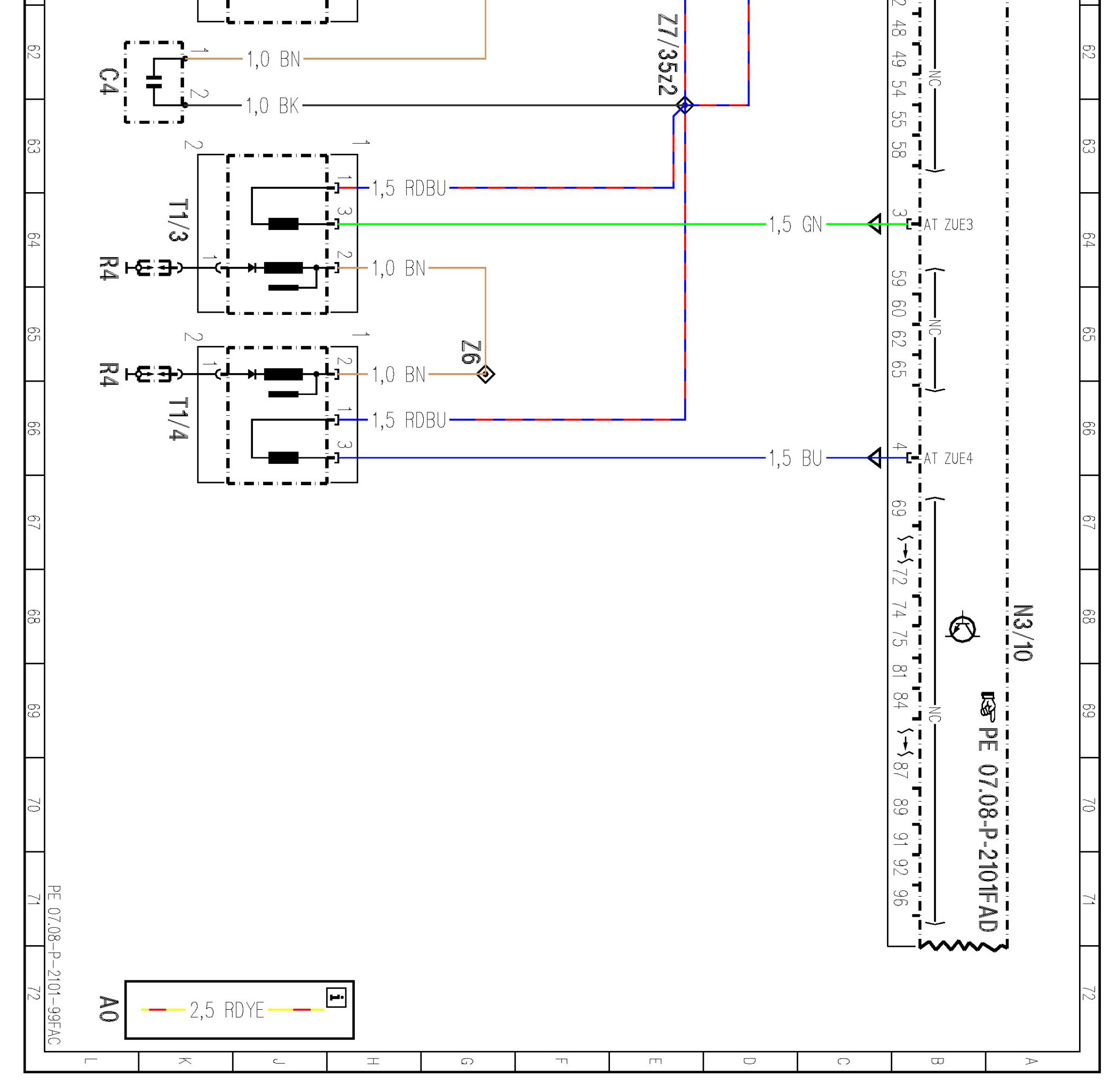

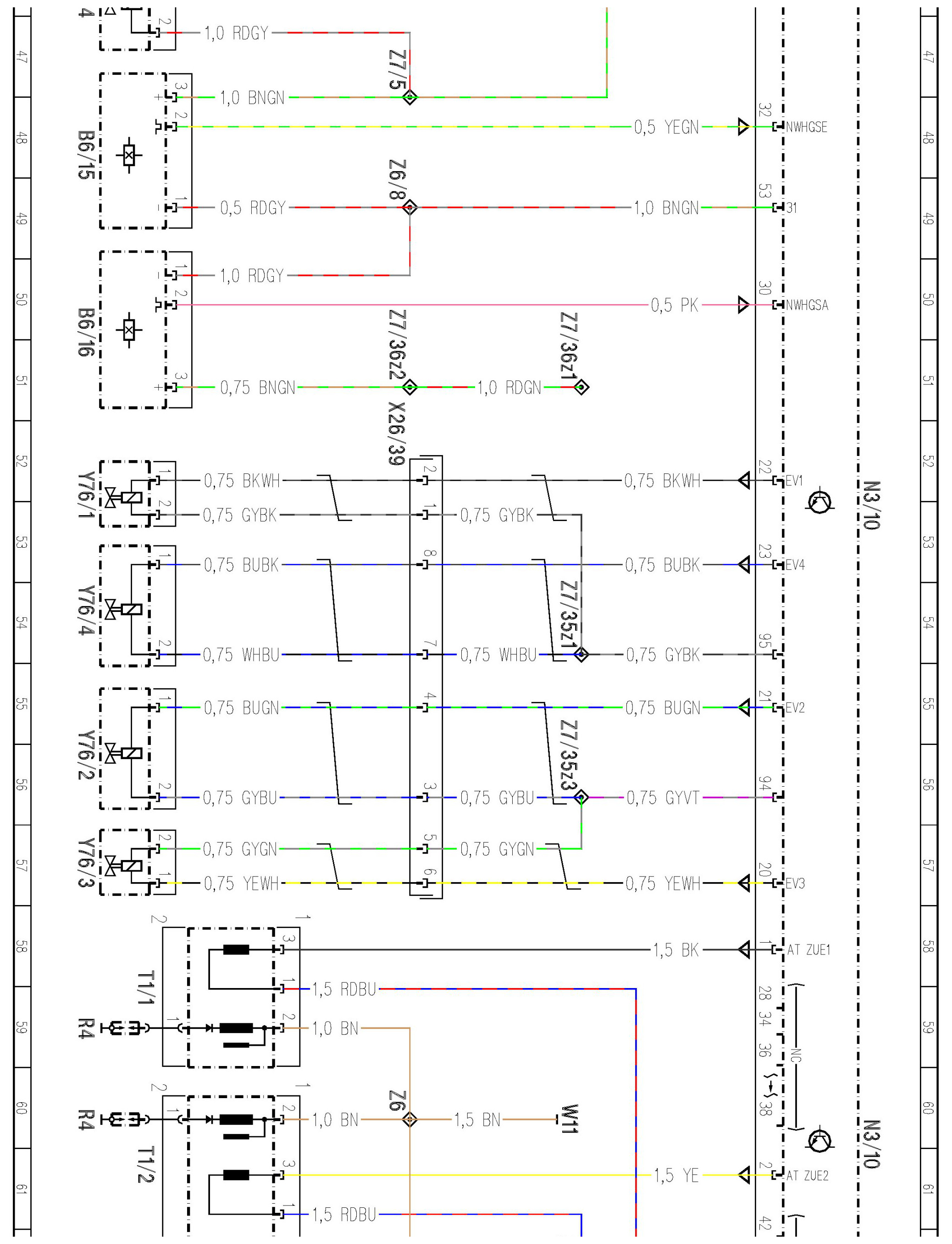

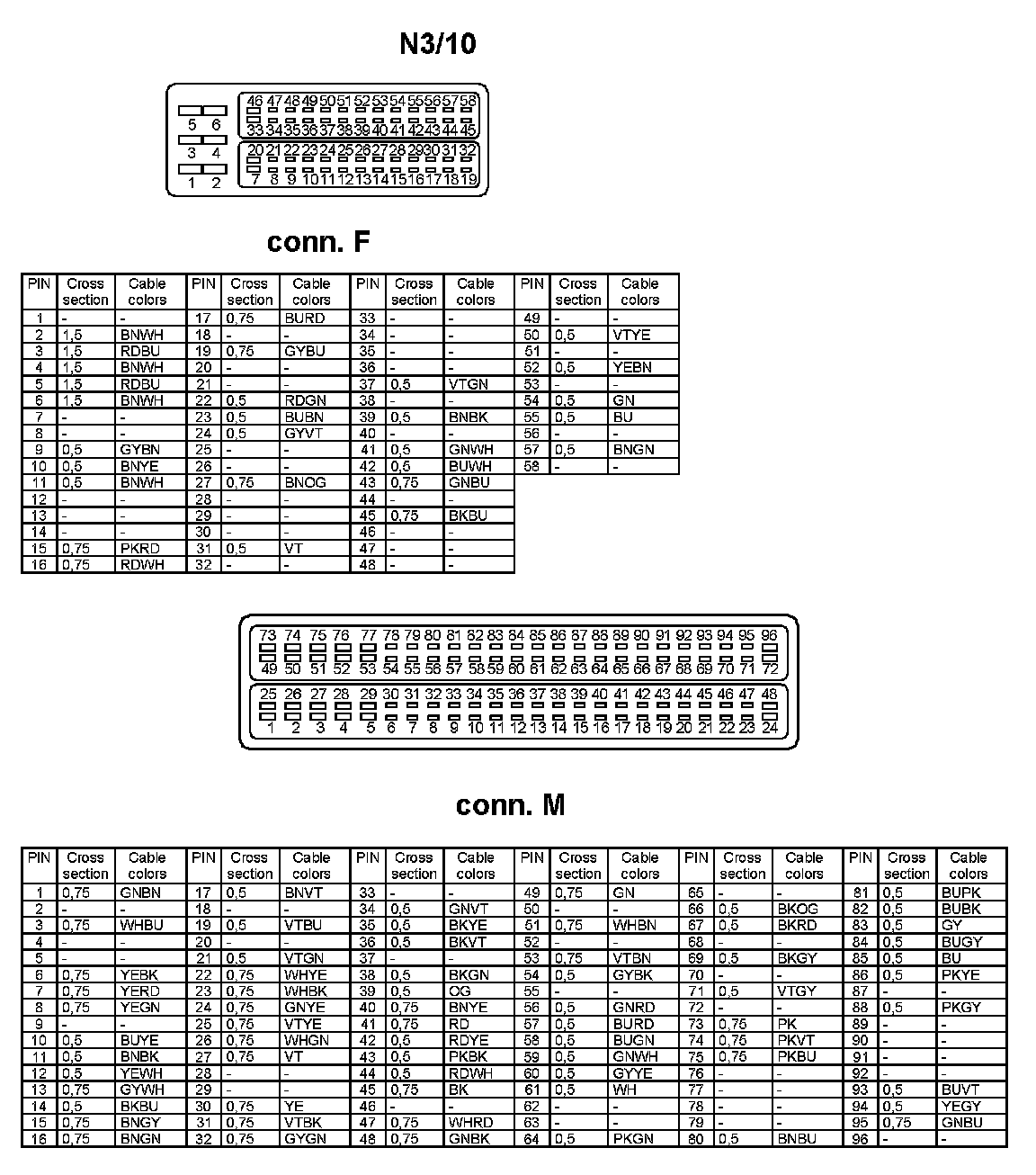

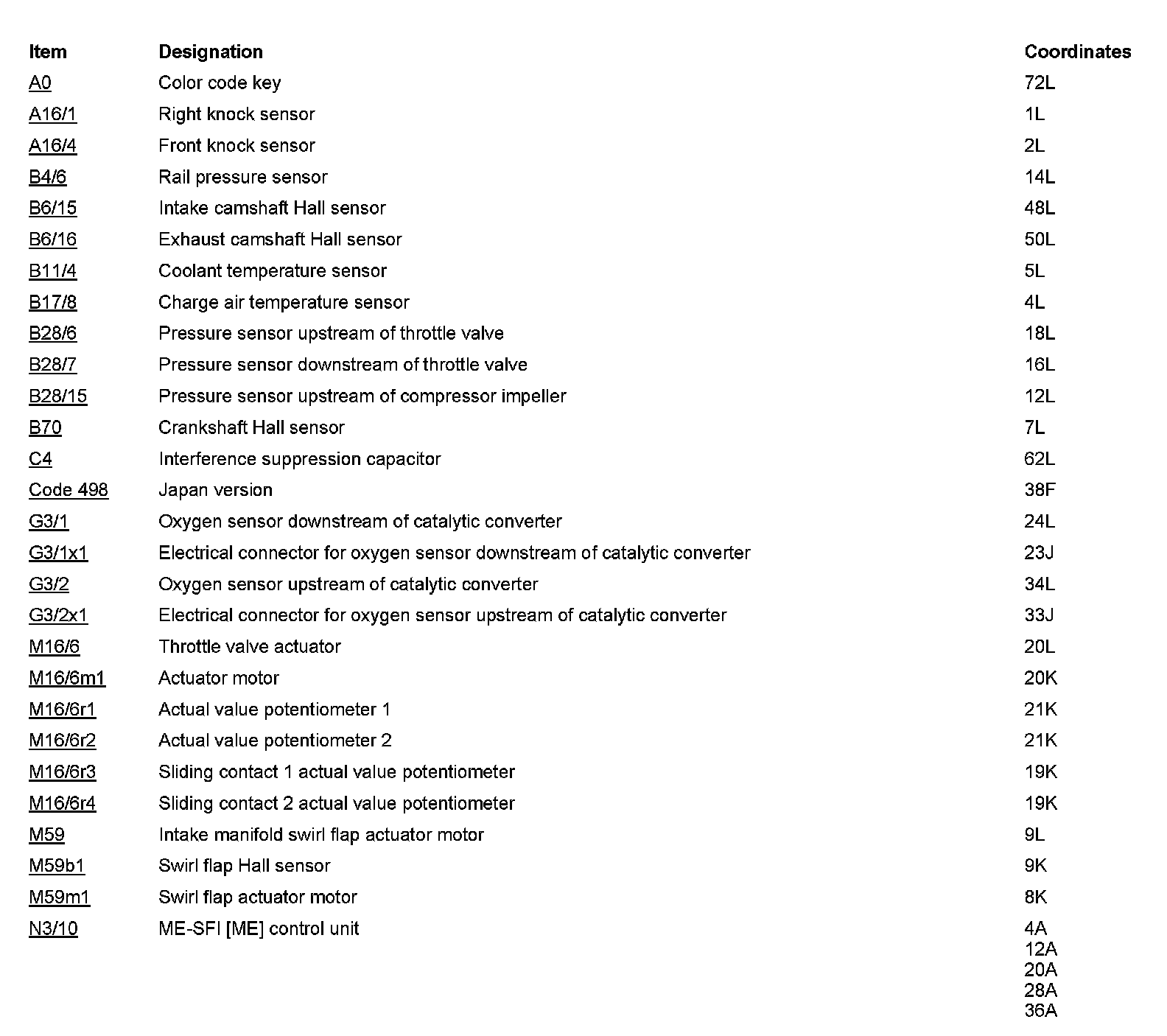

- Control unit N3/10, engine side















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
