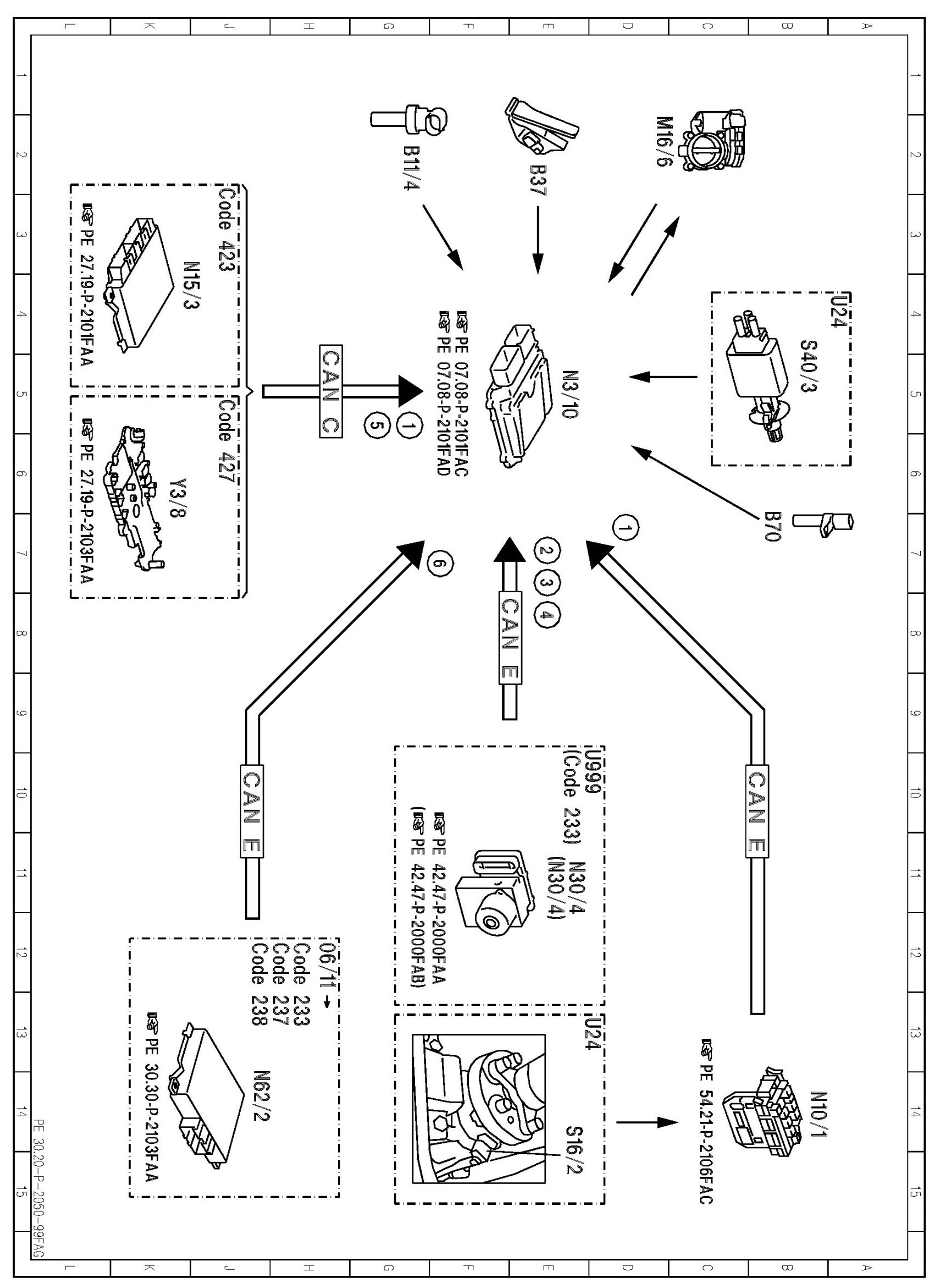

PE30.20-P-2050FAG Electrical Function Schematic For Electronic Accelerator

PE30.20-P-2050FAG Electrical Function Schematic For Electronic Accelerator

ENGINES 271.8 in MODEL 204











































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
