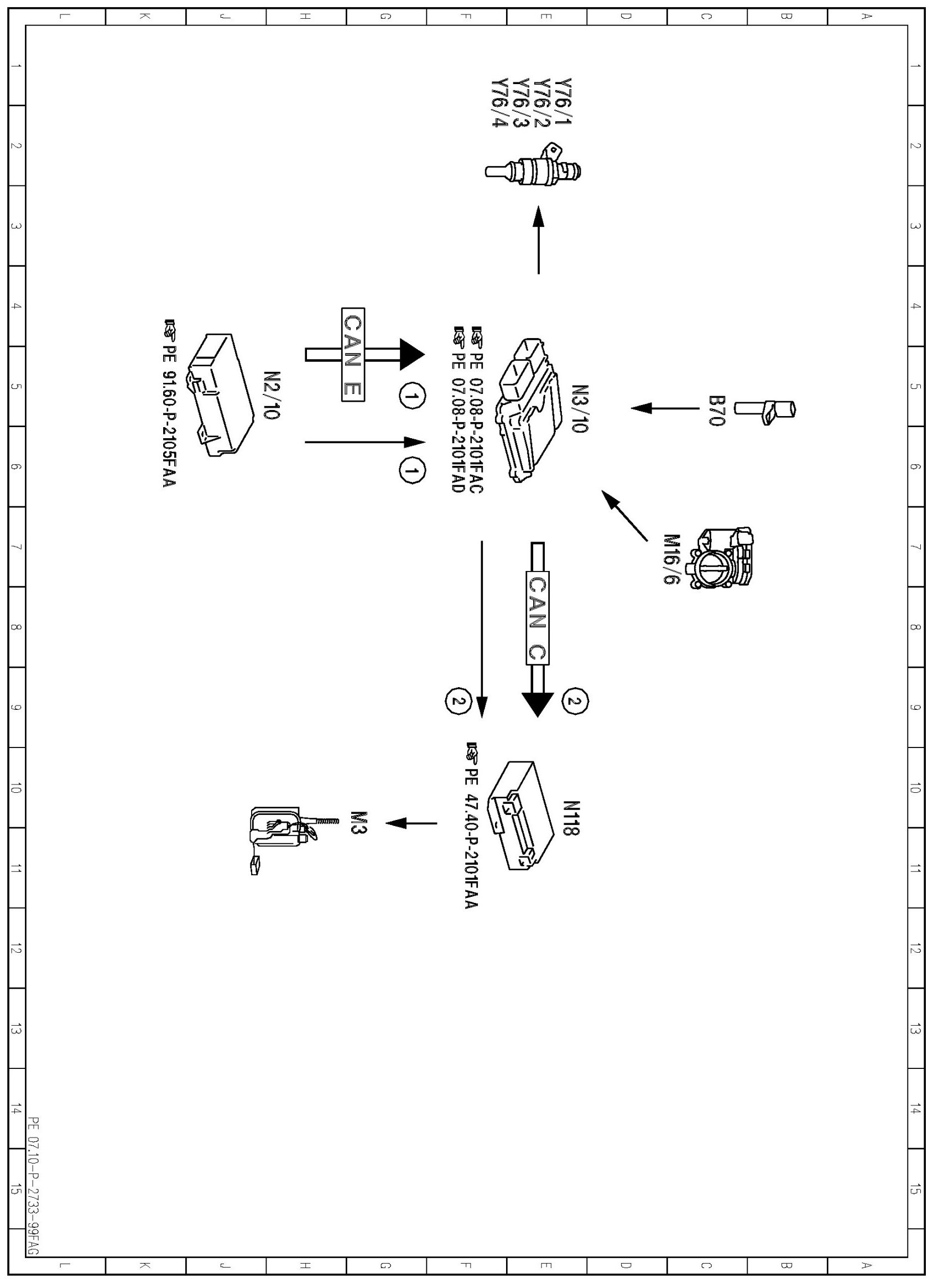

PE07.10-P-2733FAG Electrical Function Schematic For Safety Fuel Shutoff

PE07.10-P-2733FAG Electrical Function Schematic For Safety Fuel Shutoff

ENGINE 271.8 in MODEL 204























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
