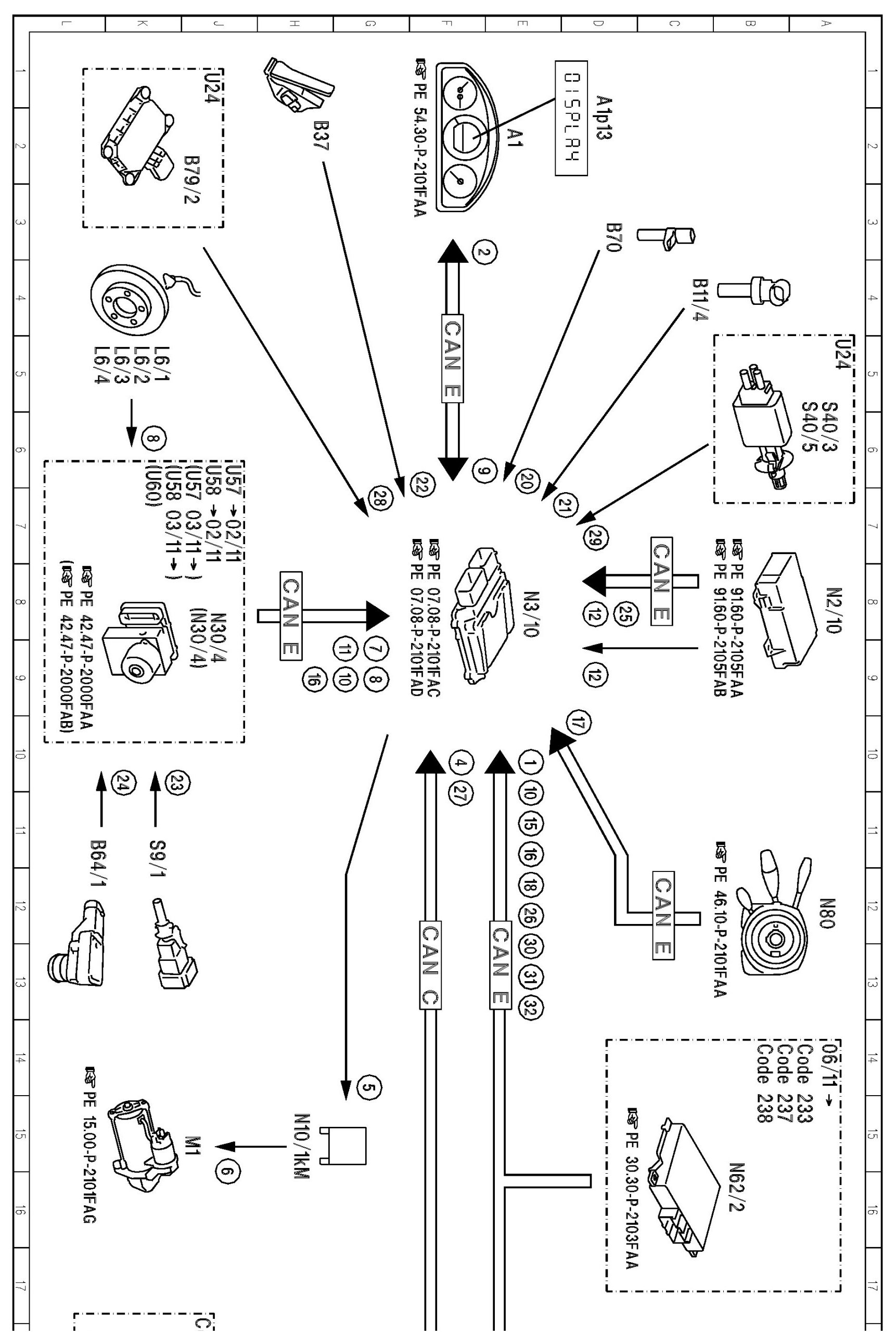

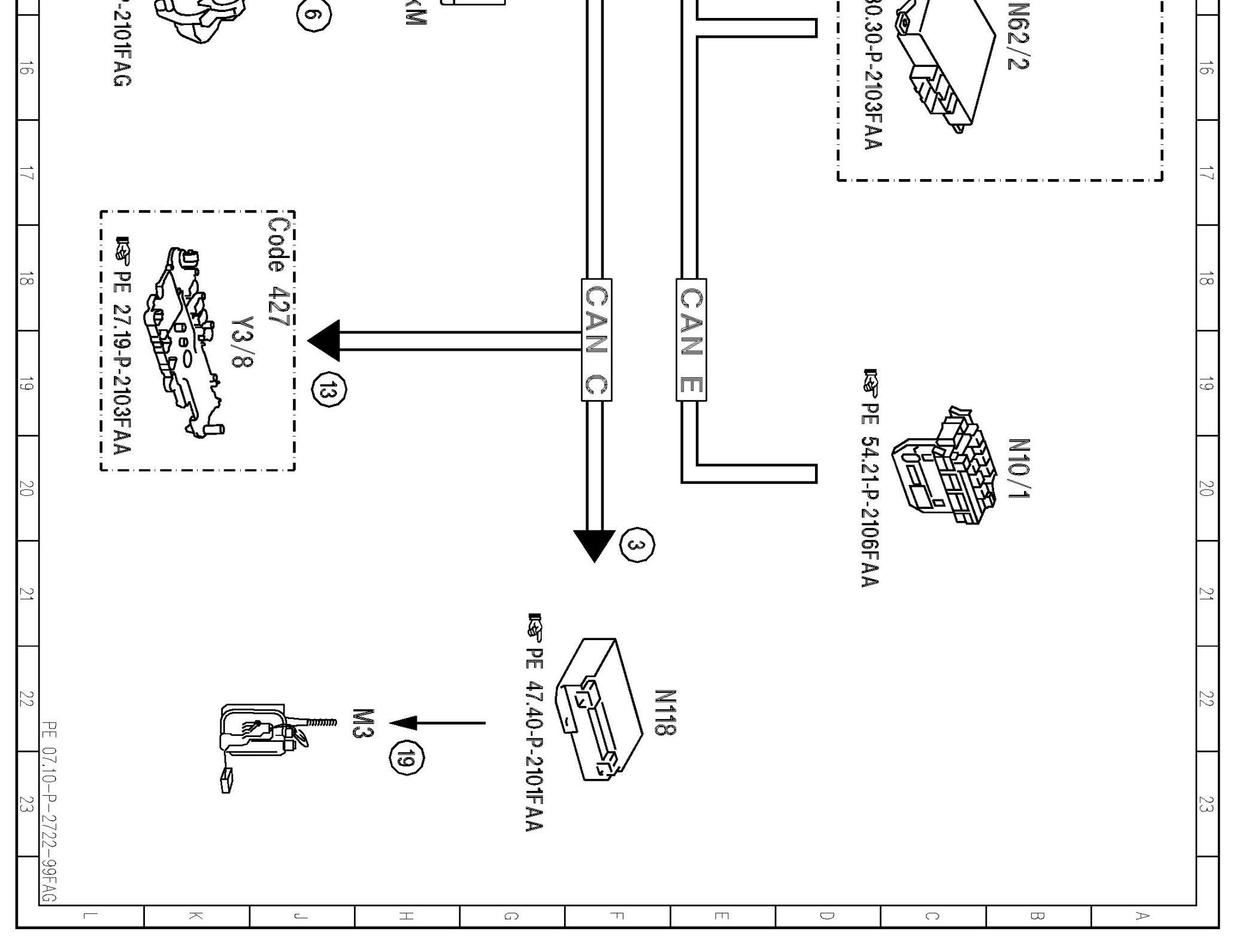

PE07.10-P-2722FAG Electrical Function Schematic For Engine Control, Start/Stop

PE07.10-P-2722FAG Electrical Function Schematic For Engine Control, Start/Stop

ENGINES 271.8 in MODEL 204



































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
