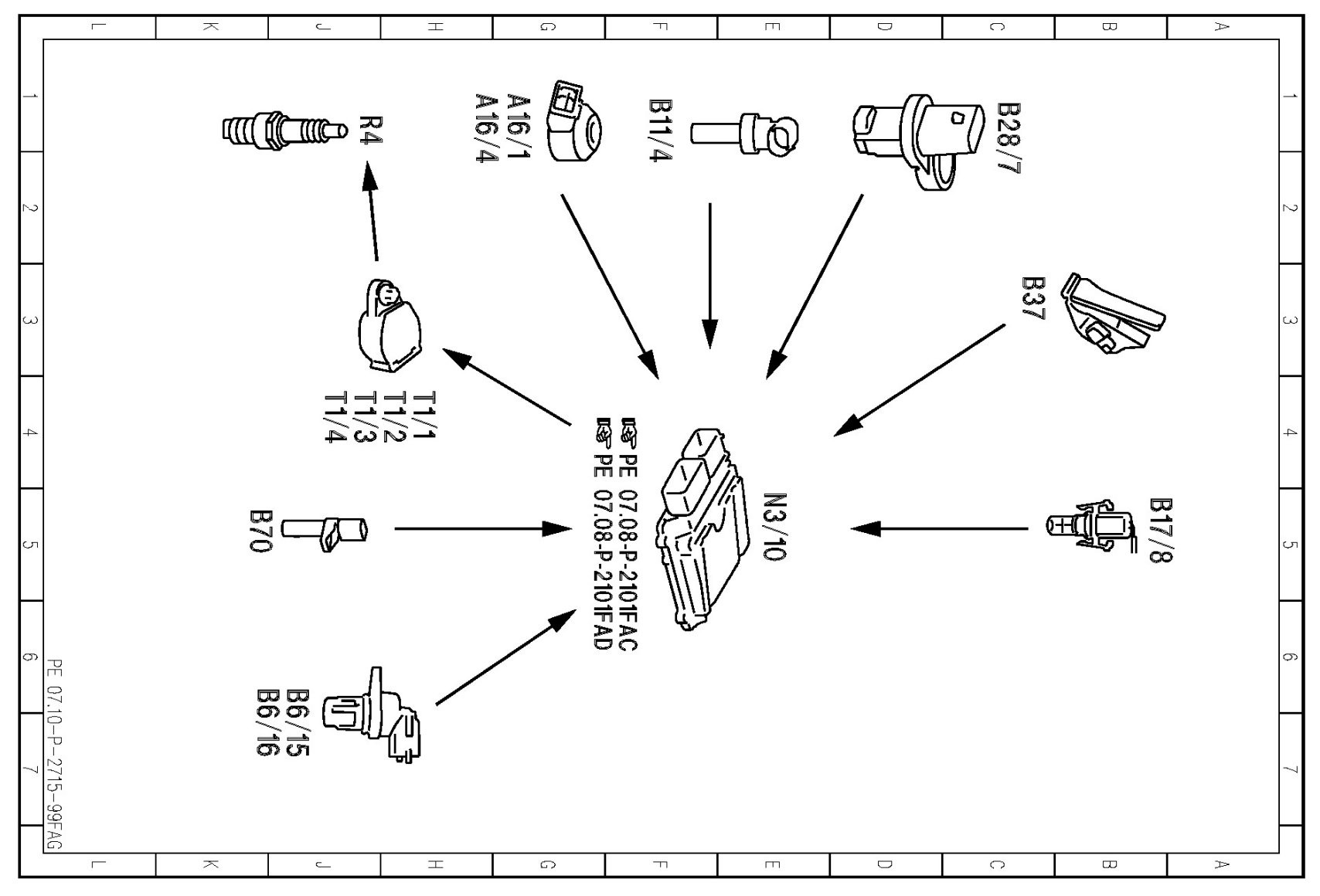

PE07.10-P-2715FAG Electrical Function Schematic For Knock Control

PE07.10-P-2715FAG Electrical Function Schematic For Knock Control

ENGINE 271.8 in MODEL 204











































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
