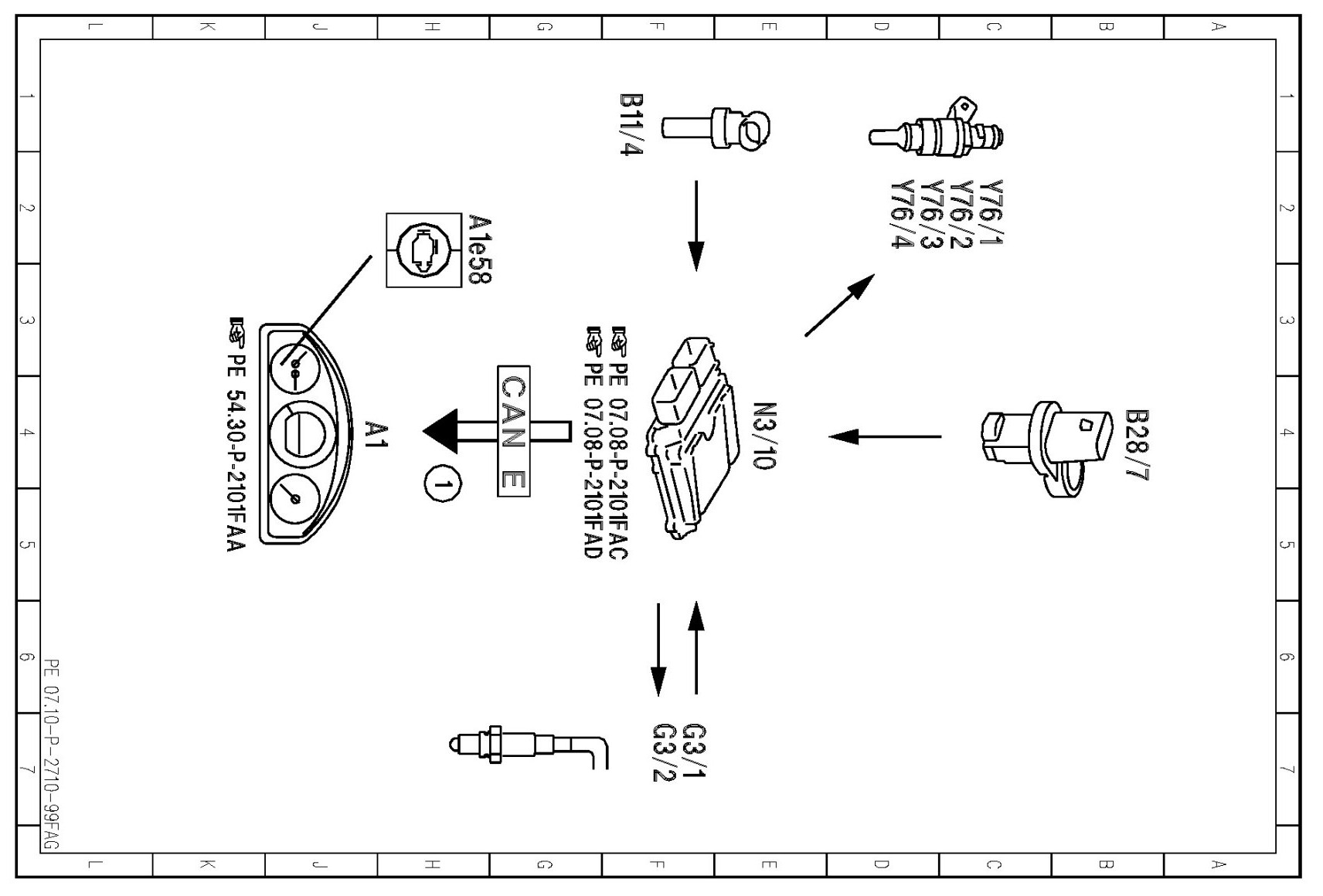

PE07.10-P-2710FAG Electrical Function Schematic For Lambda Control

PE07.10-P-2710FAG Electrical Function Schematic For Lambda Control

ENGINE 271.8 in MODEL 204























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
