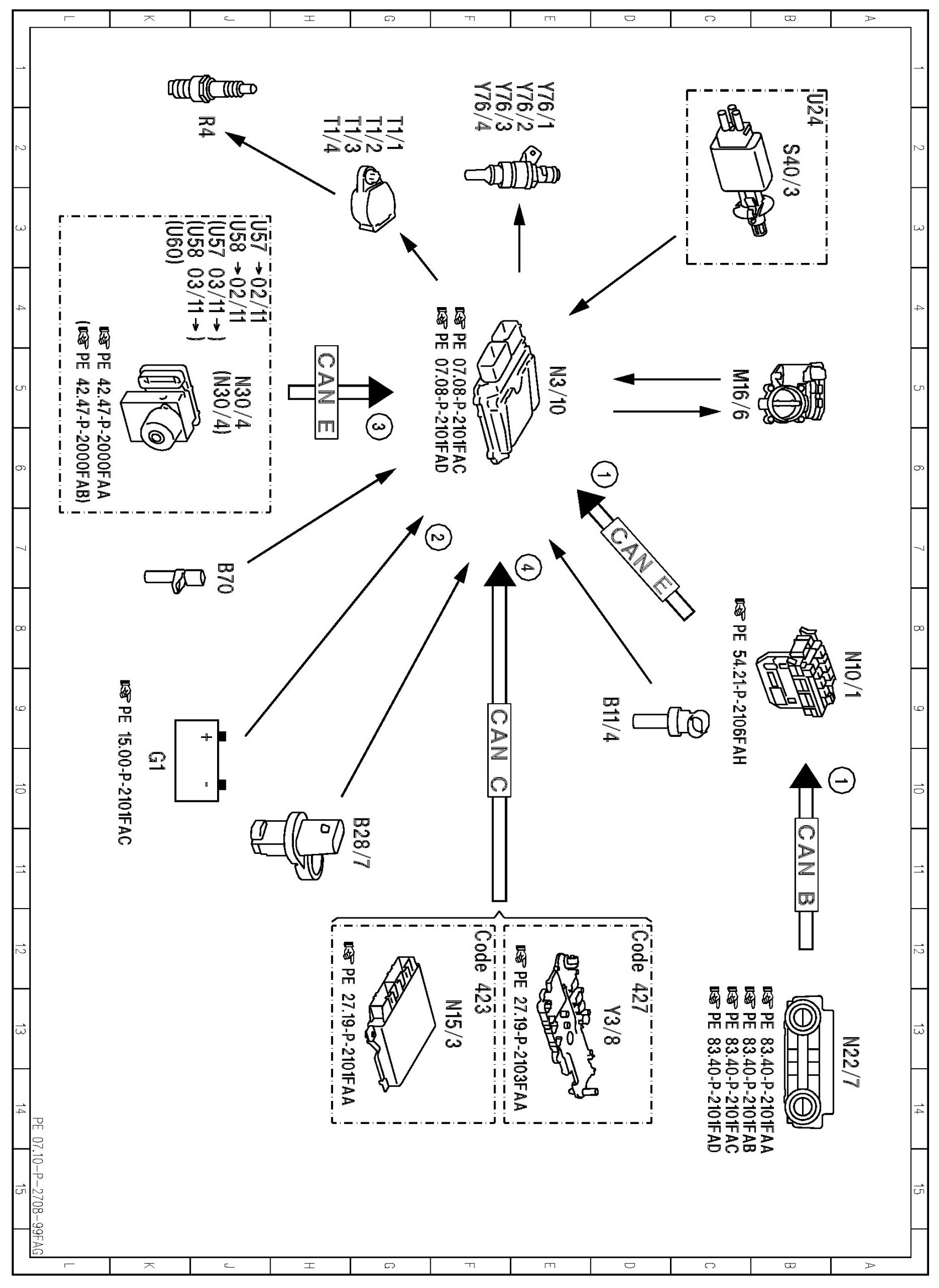

PE07.10-P-2708FAG Electrical Function Schematic For RPM Control

PE07.10-P-2708FAG Electrical Function Schematic For RPM Control

ENGINES 271.8 in MODEL 204



























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
