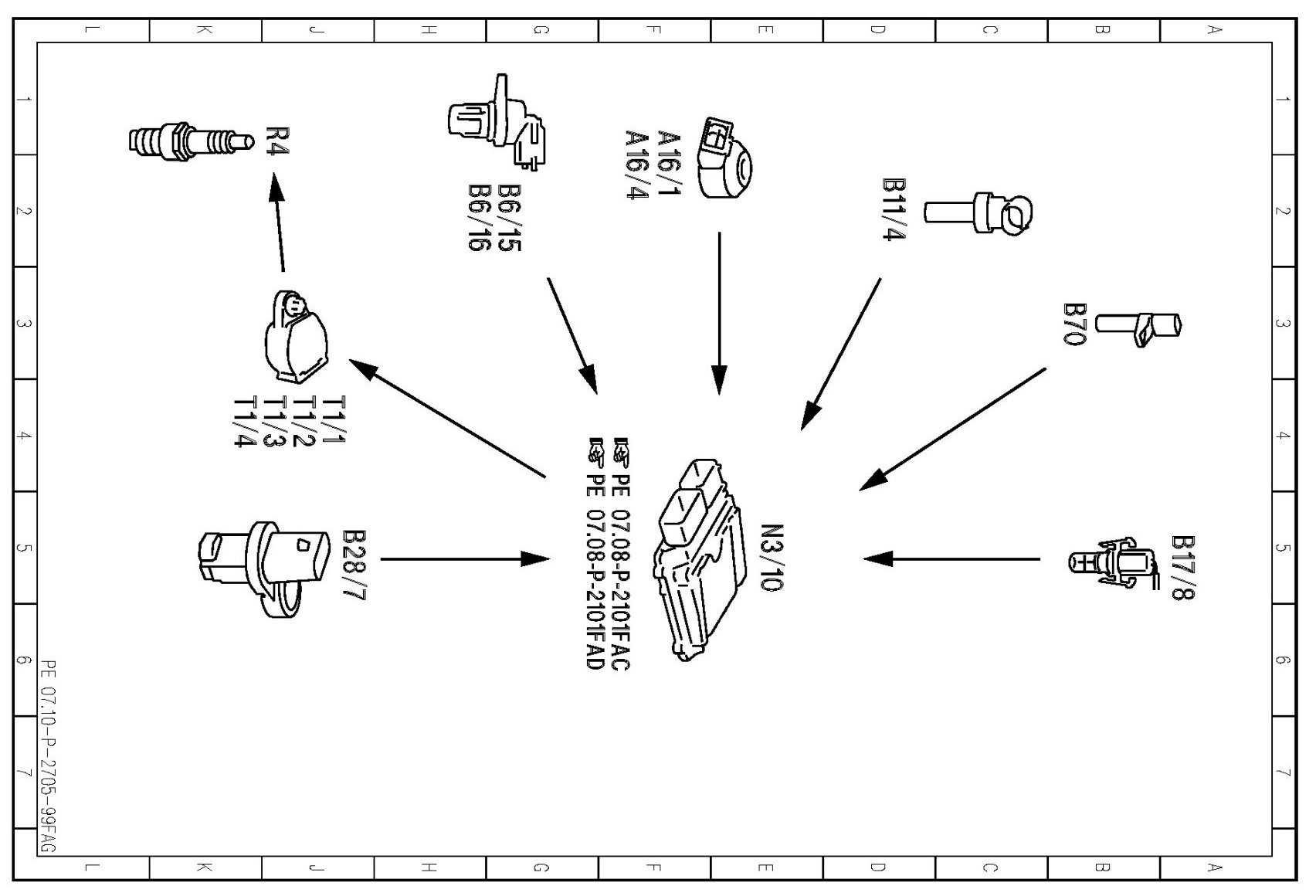

PE07.10-P-2705FAG Electrical Function Schematic For Ignition System

PE07.10-P-2705FAG Electrical Function Schematic For Ignition System

ENGINE 271.8 in MODEL 204

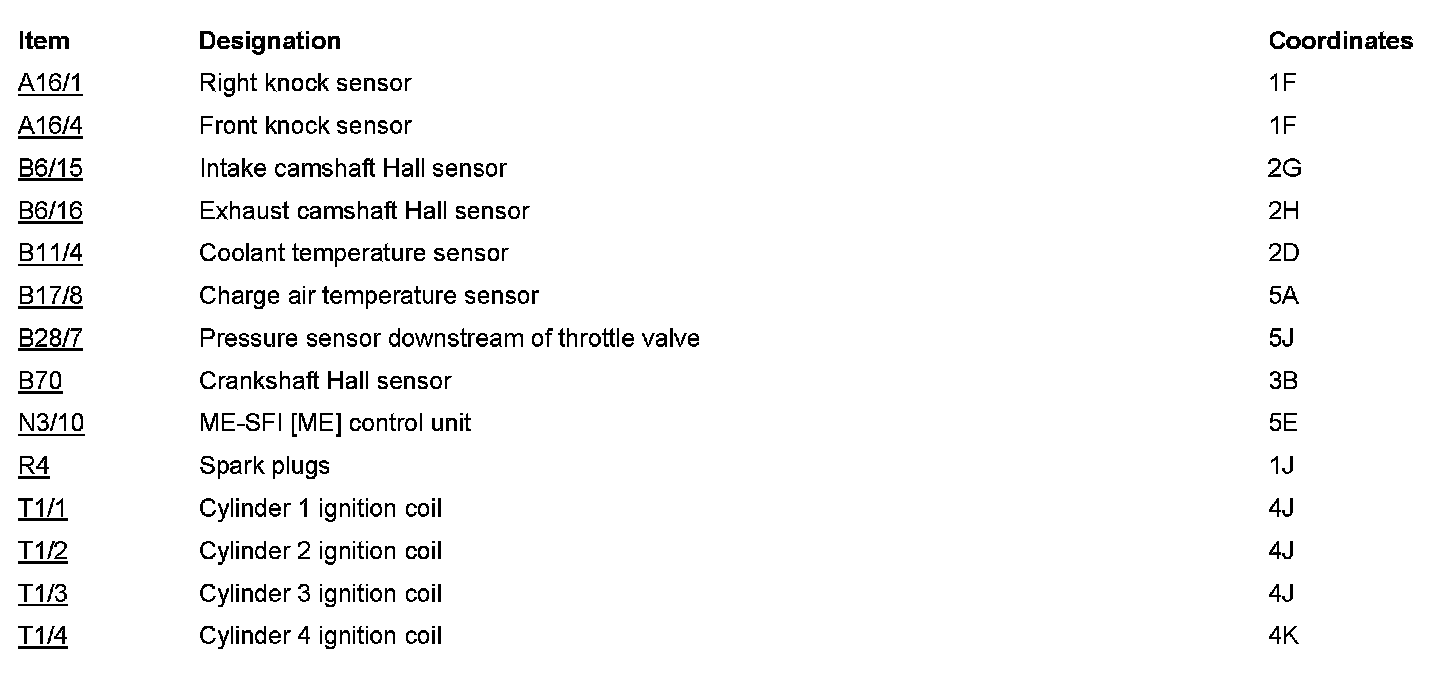

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
