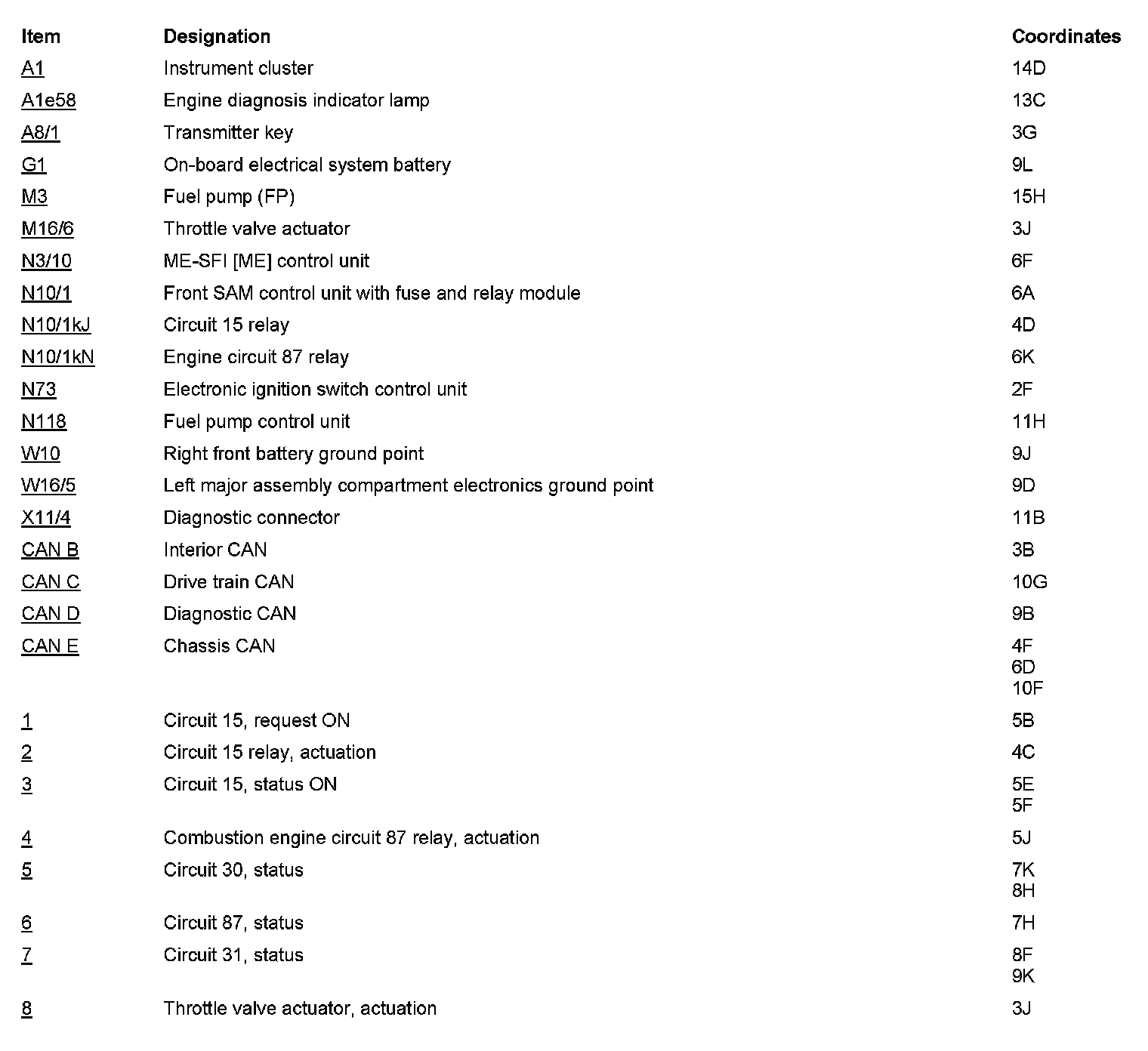

PE07.10-P-2700FAG Electrical Function Schematic, Ignition ON

PE07.10-P-2700FAG Electrical Function Schematic, Ignition ON

ENGINES 271.8 in MODEL 204







































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
