GF27.10-P-0001-08ACK Automatic Transmission (AT), Location of Electric/Electronic Components

GF27.10-P-0001-08ACK Automatic transmission (AT), location of electric/electronic components
- Transmission 722.695

Component Identification:

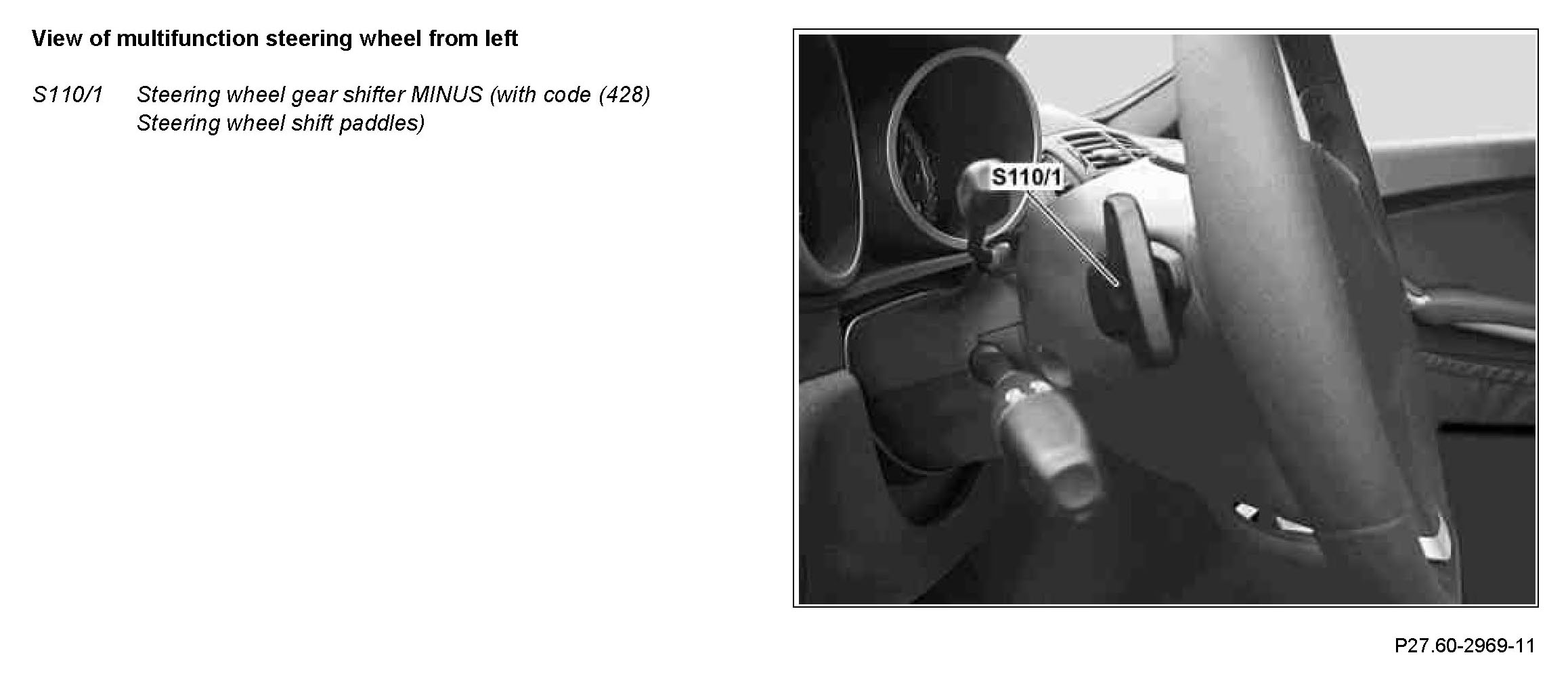

Located on the rear of the multifunction steering wheel (MFL) on the left are the MINUS steering wheel gear shifter and on the right the PLUS steering wheel gear shifter (S111/1) (with code (428) Steering wheel shift paddles).
