GF54.15-P-1256-07RCA Fuse Assignment of Front Prefuse Box




GF54.15-P-1256-07RCA Fuse Assignment of Front Prefuse Box

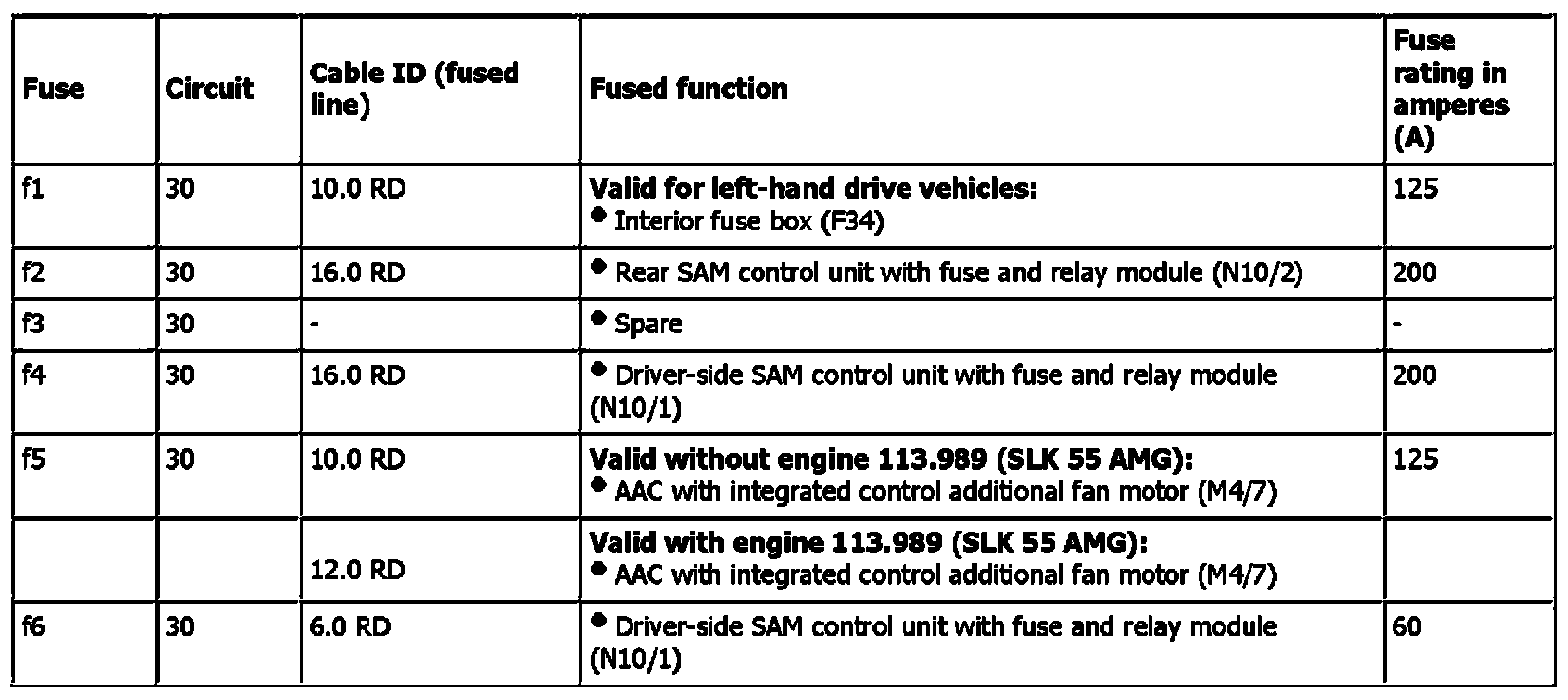

Fuse Assignment For Front Prefuse Box F32:

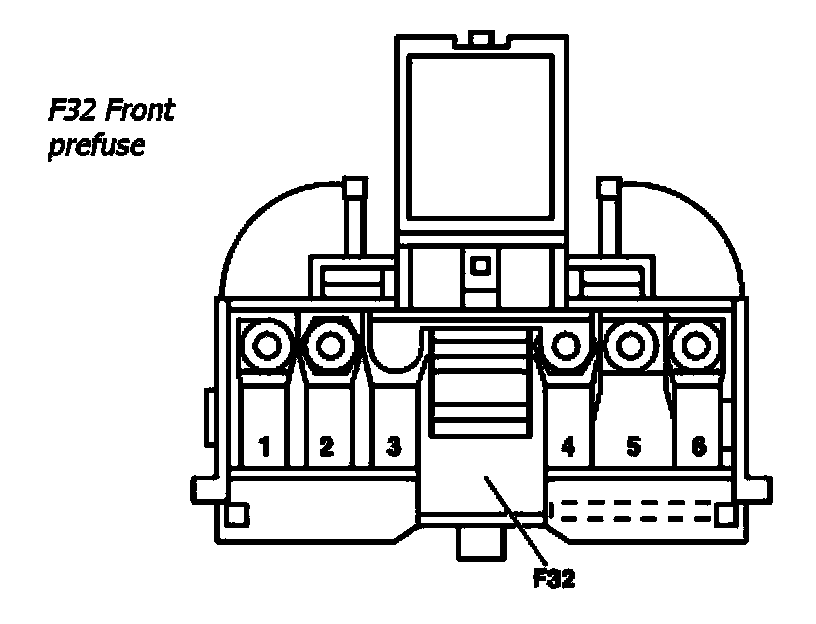

1 To 6 Position For Fuses F32 Front Prefuse:
