GF54.15-P-1256-03RCA Fuse Assignment of Fuse and Relay Box In Left Engine Compartment




GF54.15-P-1256-03RCA Fuse Assignment of Fuse and Relay Box In Left Engine Compartment

Component Location:

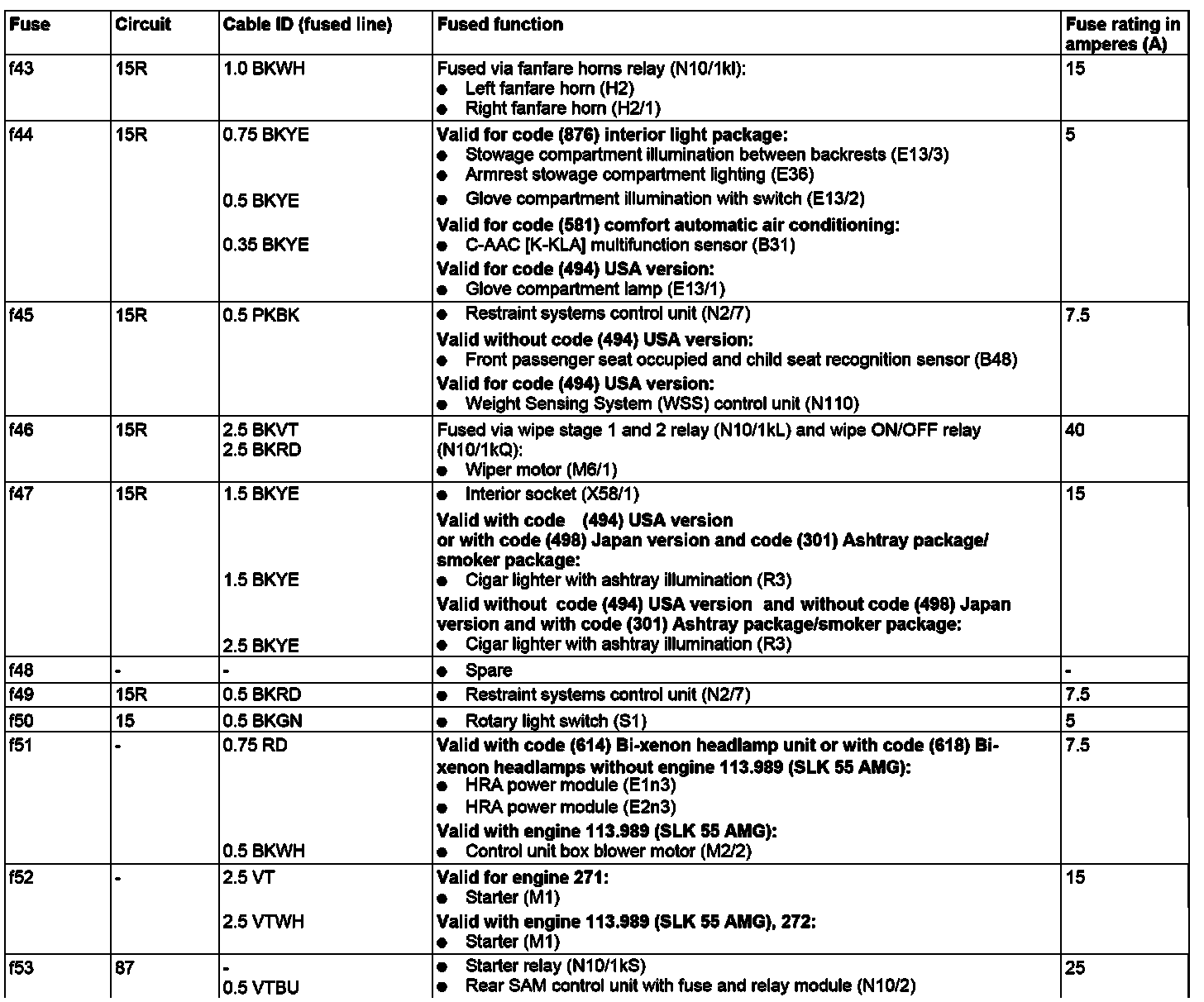

Fuse F43 To F53:

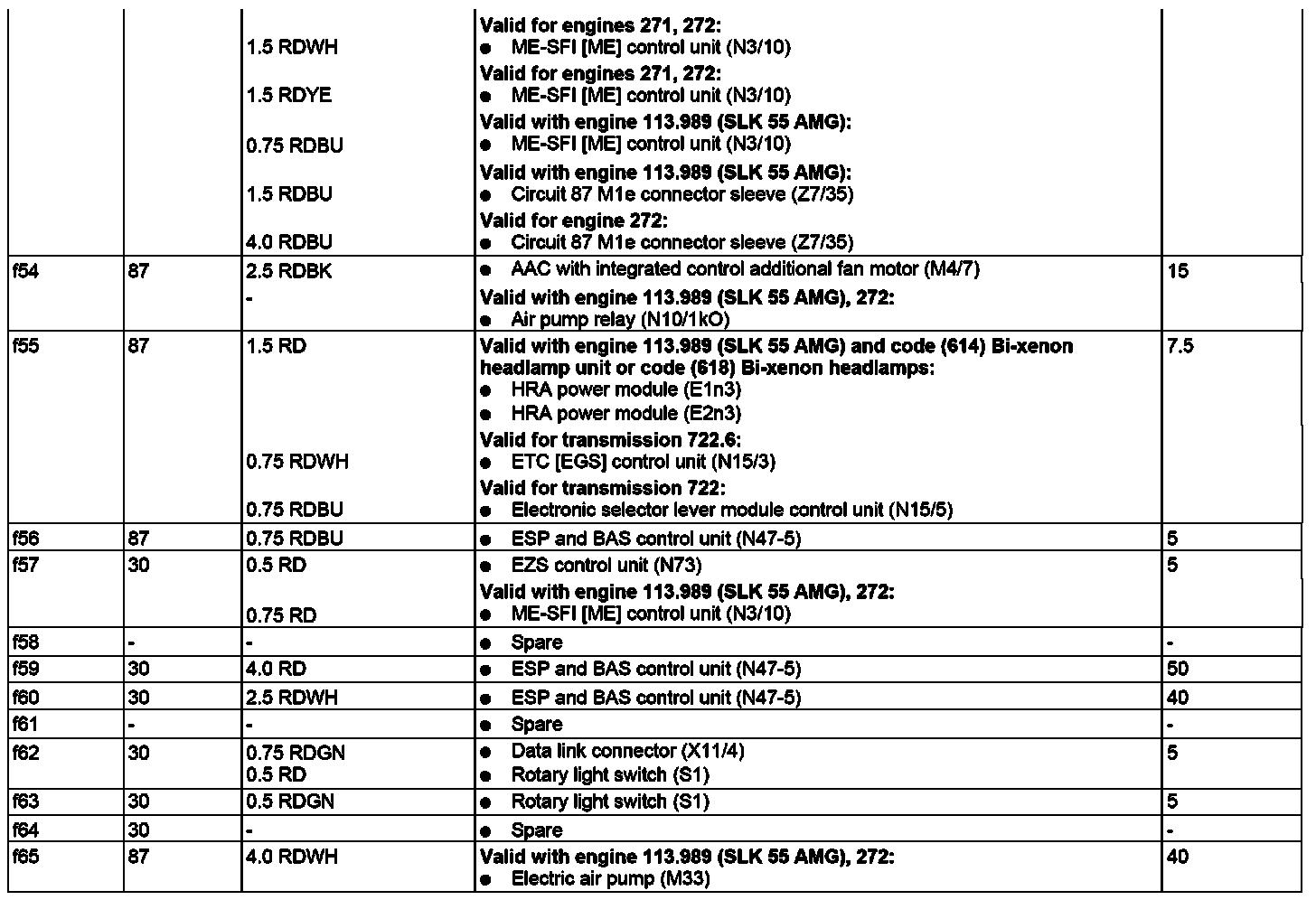

Fuse F53 Continued To F65:
