GF72.29-P-6043RC Driver Power Window Switch Group, Component Description

GF72.29-P-6043RC Driver Power Window Switch Group, Component Description
- refinement package
- as of model year 09

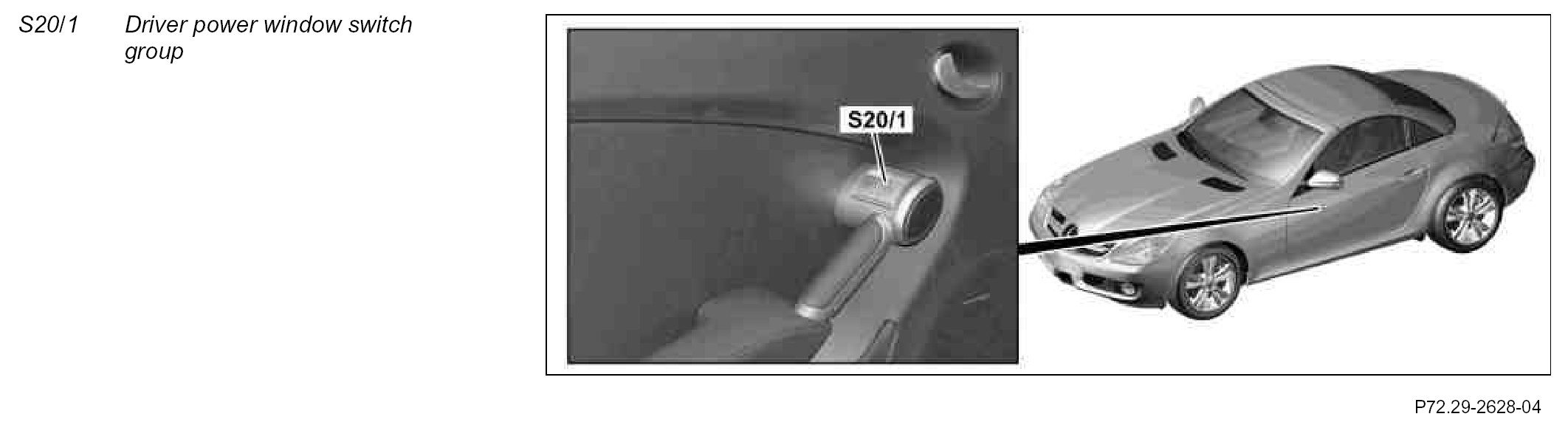

Component Identification:

Location
The driver-side power window switch group is located on the door handle on the inner panel of the driver door.

Task
The side windows in the driver and passenger door can be opened and closed with the driver-side power window switch group.

Design
The driver-side power window switch group comprises the following:
- Left power window switch (S20/1s1)
- Right power window switch (S20/1s2)
