Ambient Temperature Sensor / Switch HVAC: Description and Operation

GF83.57-P-4002RC Component Description For The Outside Temperature Display Temperature Sensor

Component Identification:

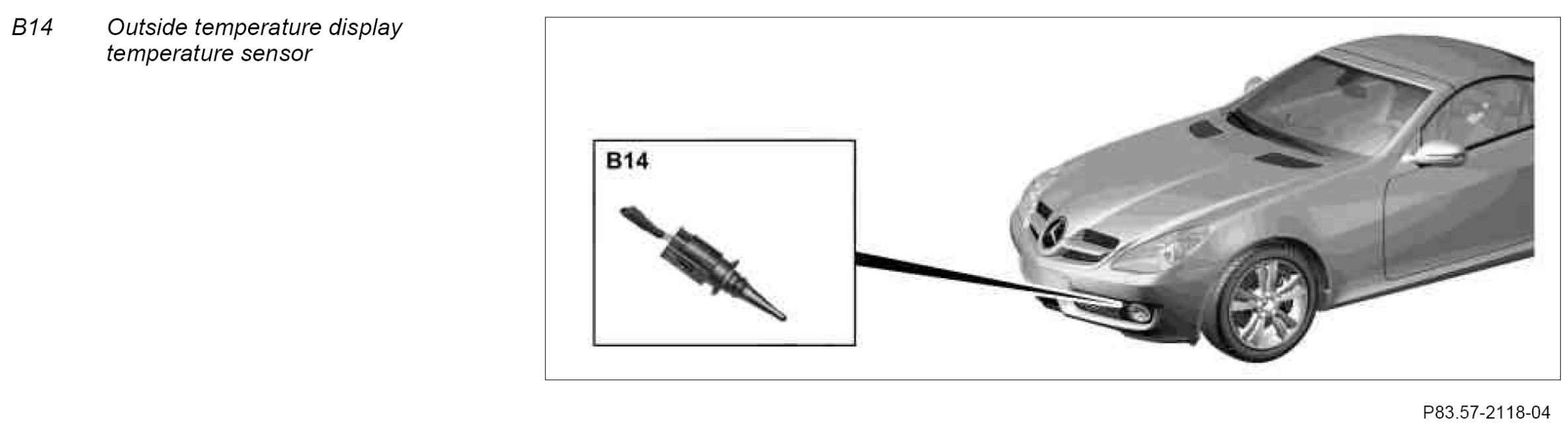

Location
The outside temperature indicator temperature sensor is located in the left front bumper.

Task
The outside temperature indicator temperature sensor measures the outside temperature. The driver SAM control unit with fuse and relay module (N10/1) reads in the temperature value.
