Brake Fluid Pressure Sensor/Switch: Service and Repair



AR42.45-P-0816V Remove/install ESP brake pressure sensor

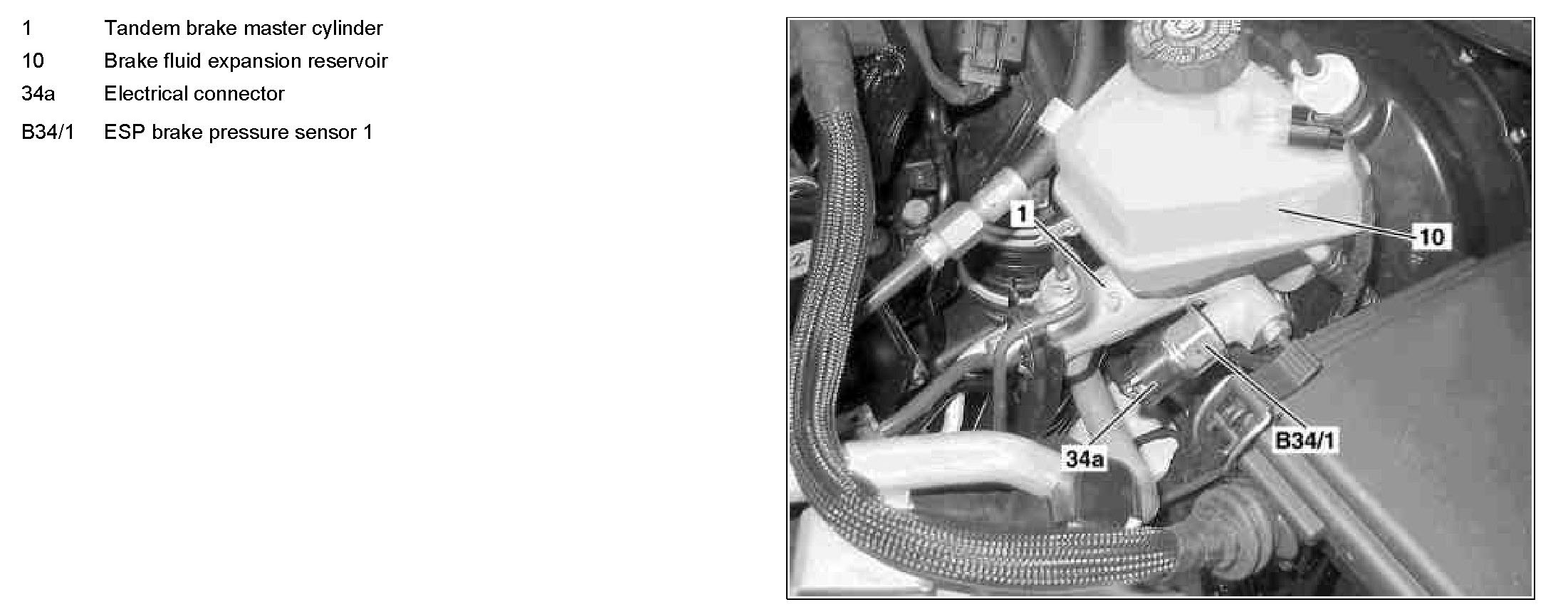

Component Identification:

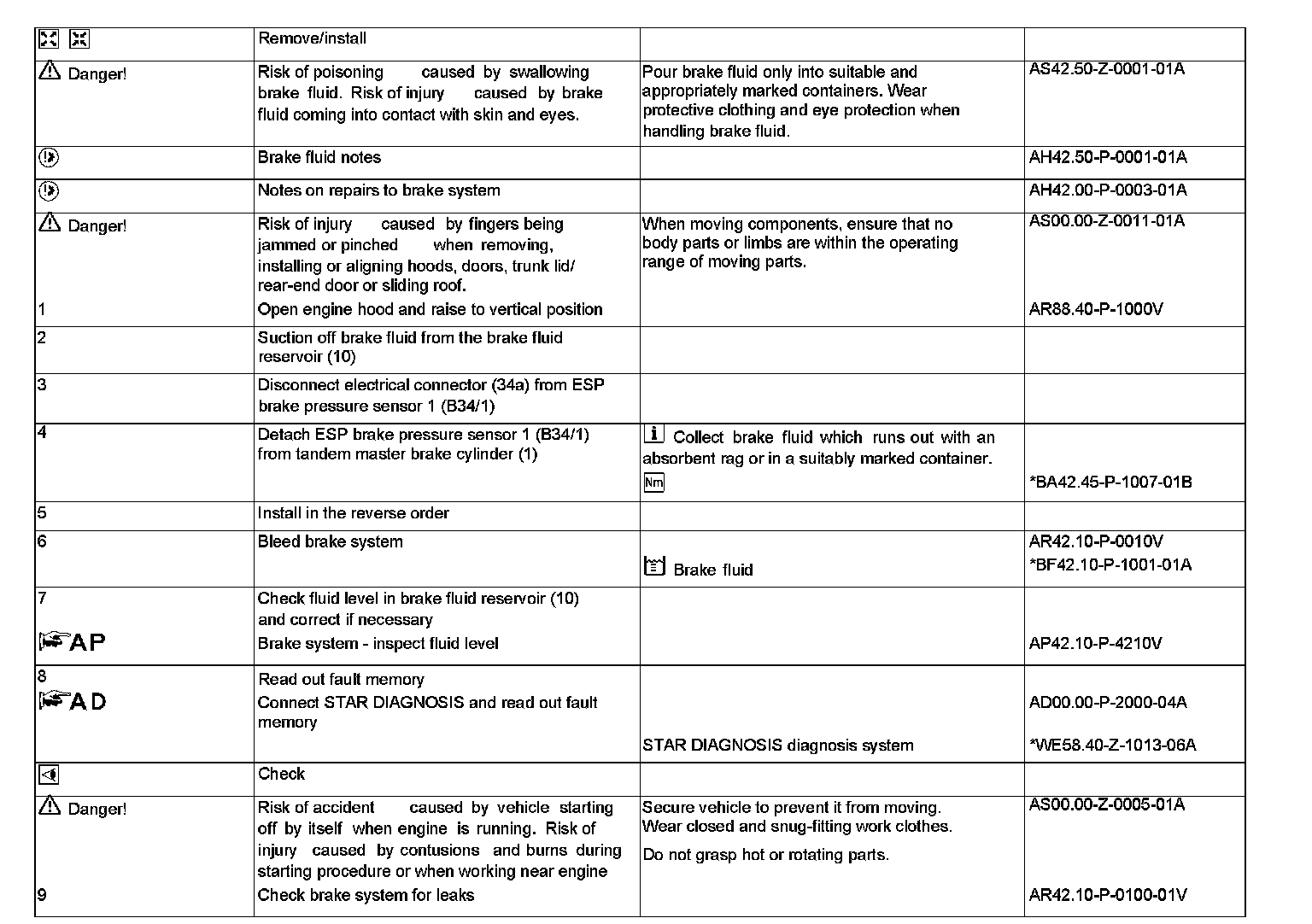

Steps 1-9:

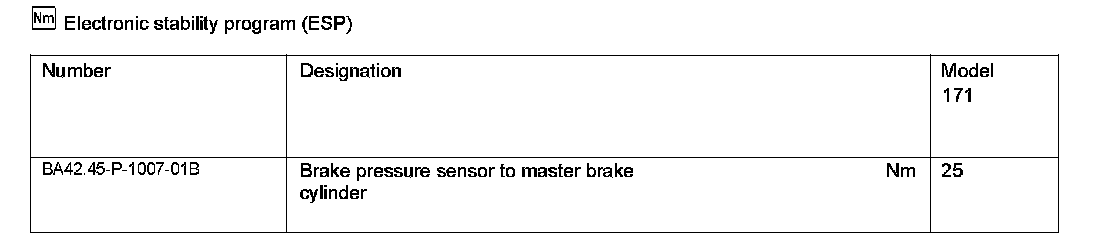

Electronic Stability Program (ESP):

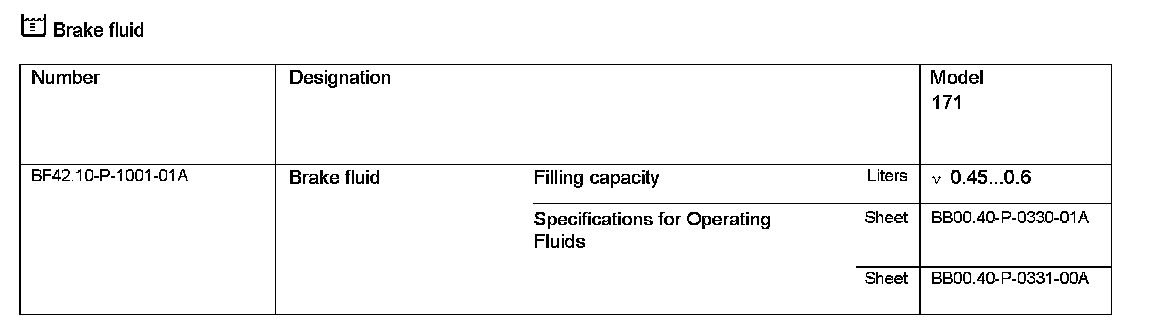

Brake Fluid:




Workshop Equipment/MB Testers:
