GF77.39-P-3207RC Trunk Partition "Closed" Limit Switch, Component Description

GF77.39-P-3207RC Trunk Partition "Closed" Limit Switch, Component Description
- refinement package
- as of model year 09

Component Identification:

Location

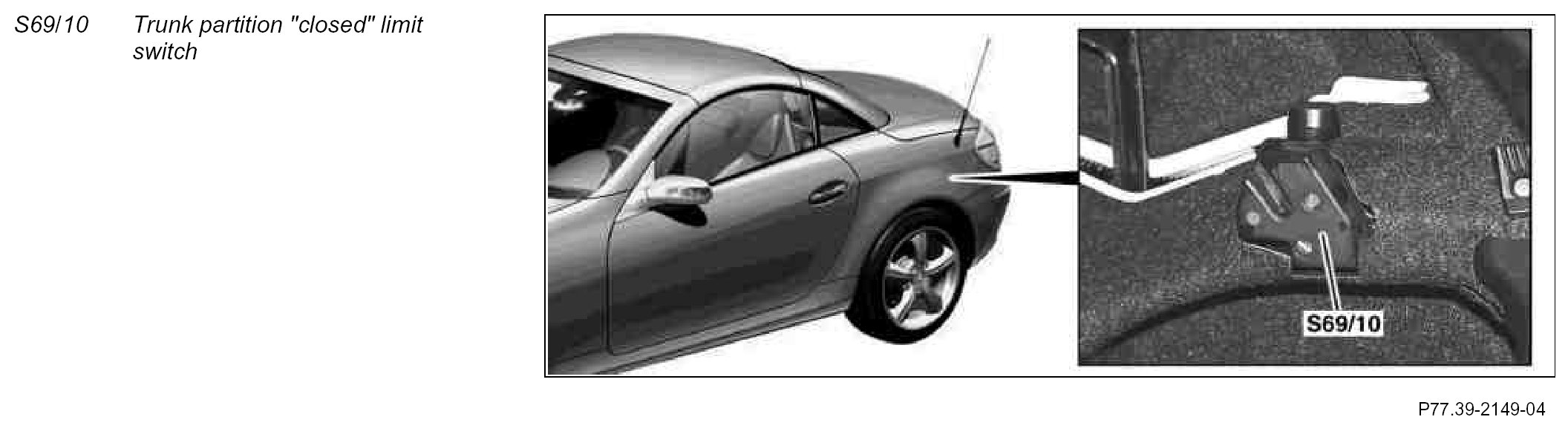

The trunk partition "closed" limit switch (S69/10) is located on the left side wall in the trunk.

Task
When the trunk partition is closed, the trunk partition "closed" limit switch relays a ground signal to the convertible top mechanism top control unit (N52) to actuate the open or close Vario roof function.
