Parking Assist Control Module: Service and Repair



AR54.65-P-0006VA Remove/install Parktronic System (PTS) Control Unit
- with CODE (220) Parktronic system (PTS)

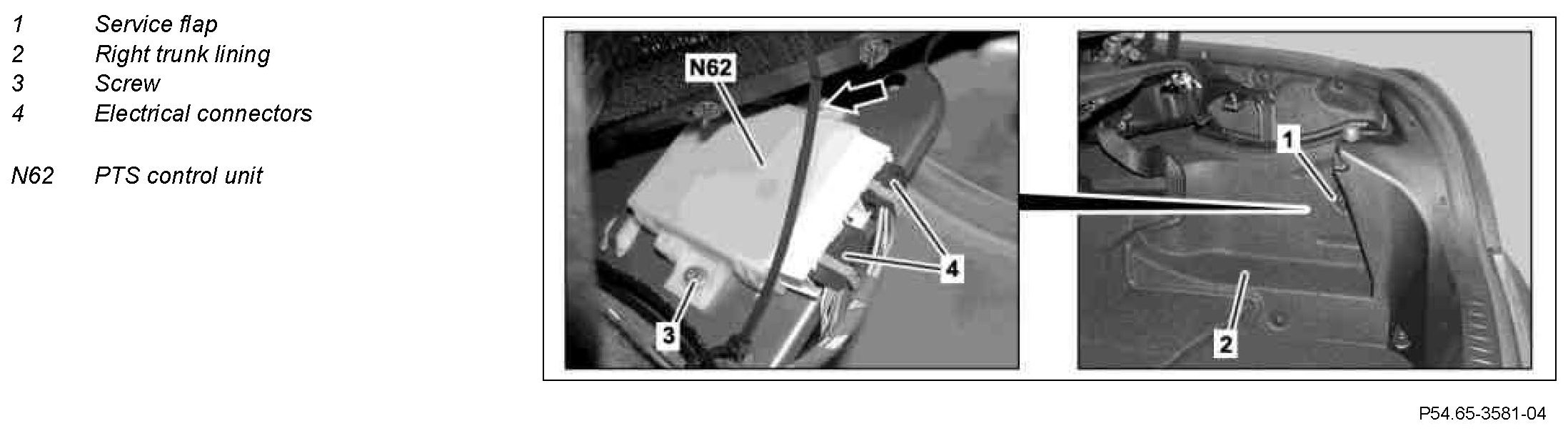

Component Identification:

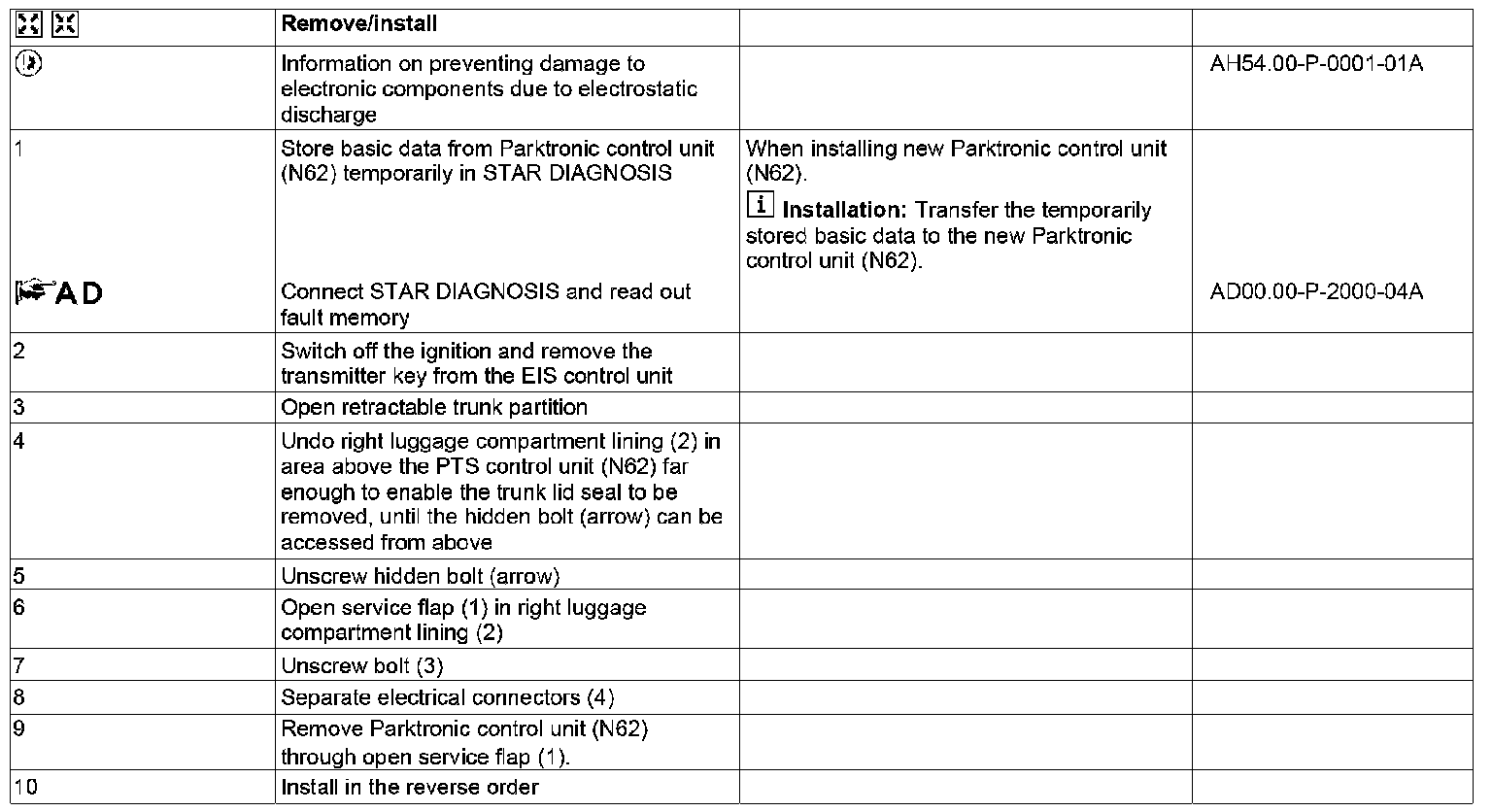

Steps 1-10:
