Ignition Coil: Service and Repair



AR15.12-P-2003VA Remove/Install Ignition Coils

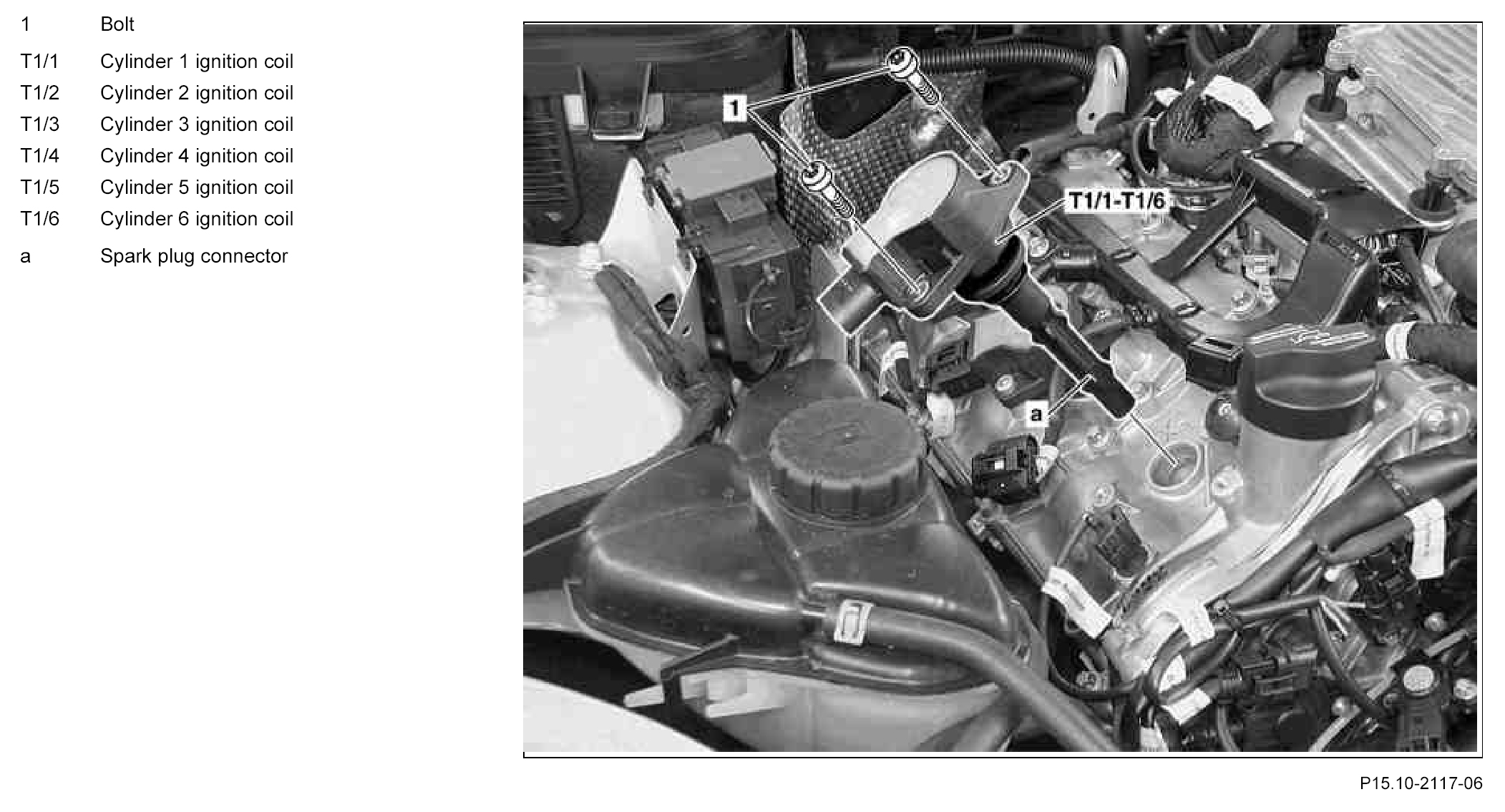

Component Identification:

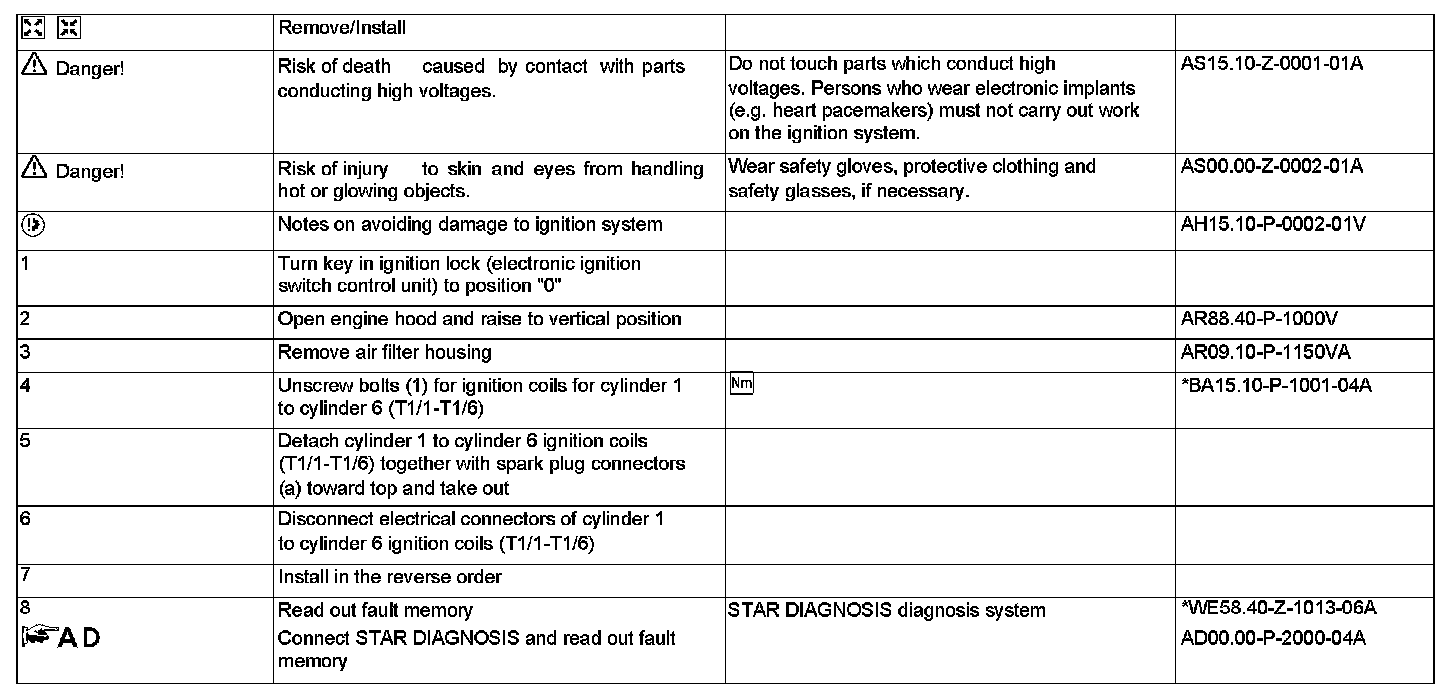

Steps 1 - 8:

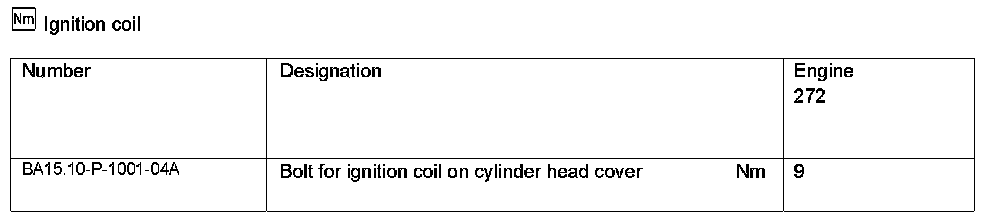

Ignition Coil:
