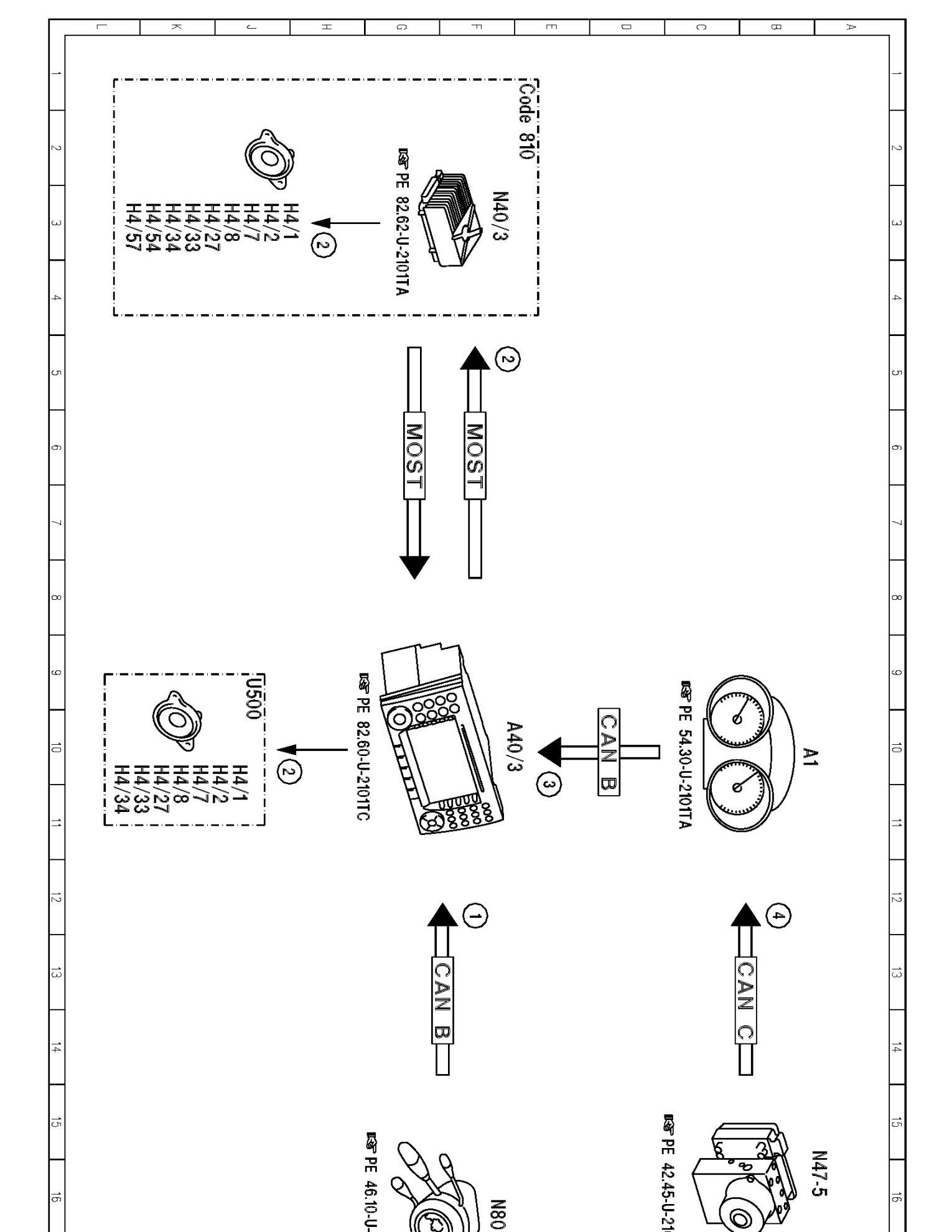

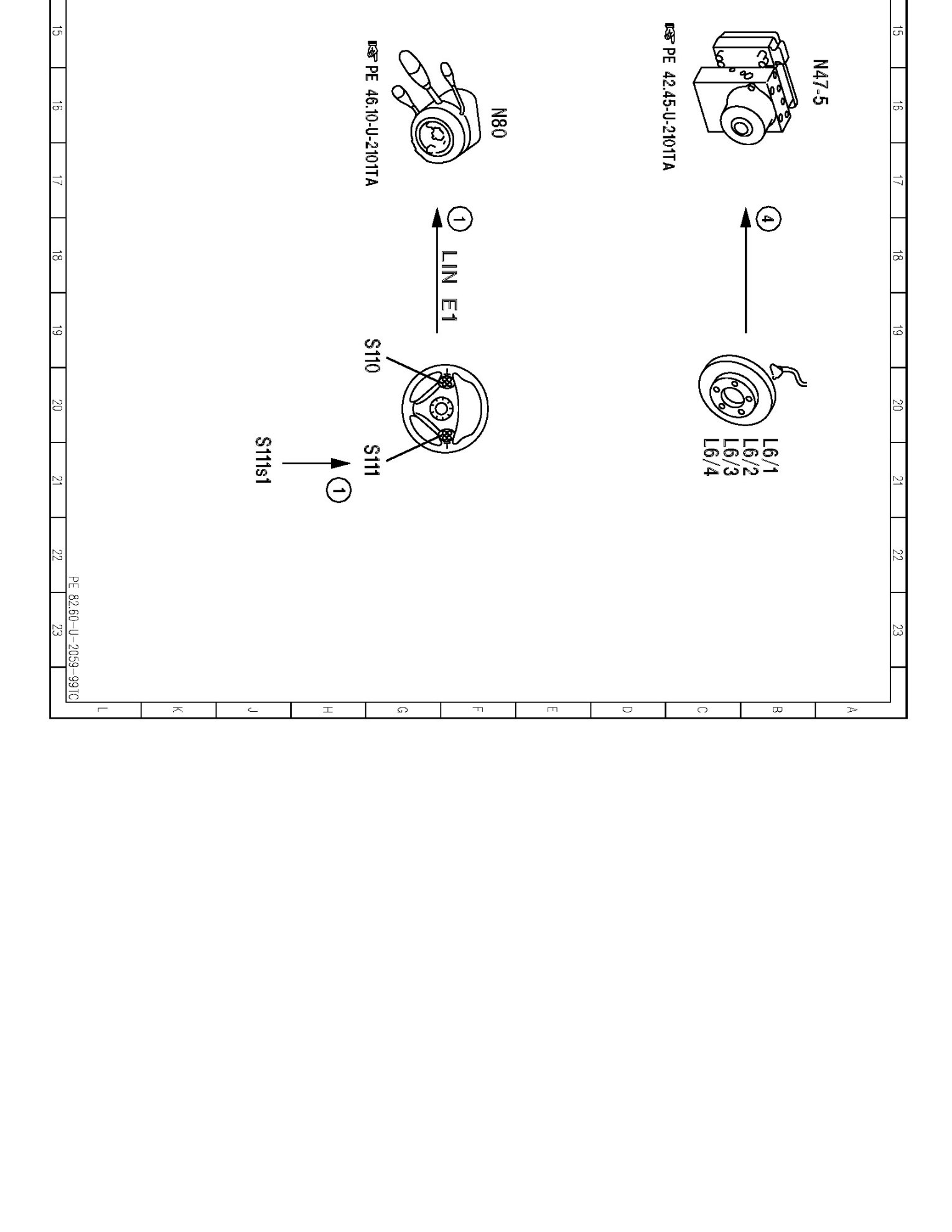

PE82.60-U-2059TC Electrical Function Schematic For Volume/Sound Settings, Function



PE82.60-U-2059TC Electrical Function Schematic For Volume/Sound Settings, Function
- with CODE (512) COMAND APS with DVD changer



















Component Locations: Component Locations photographs can be found via their component names at the vehicle level. Component Locations
