Home >> Mercedes Benz >> 2011 >> SLK 300 (171.454) V6-3.0L (272.942) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Function Diagrams >> PE82.60-U-2058TA Electrical Function Schematic For Audio Mode, Function

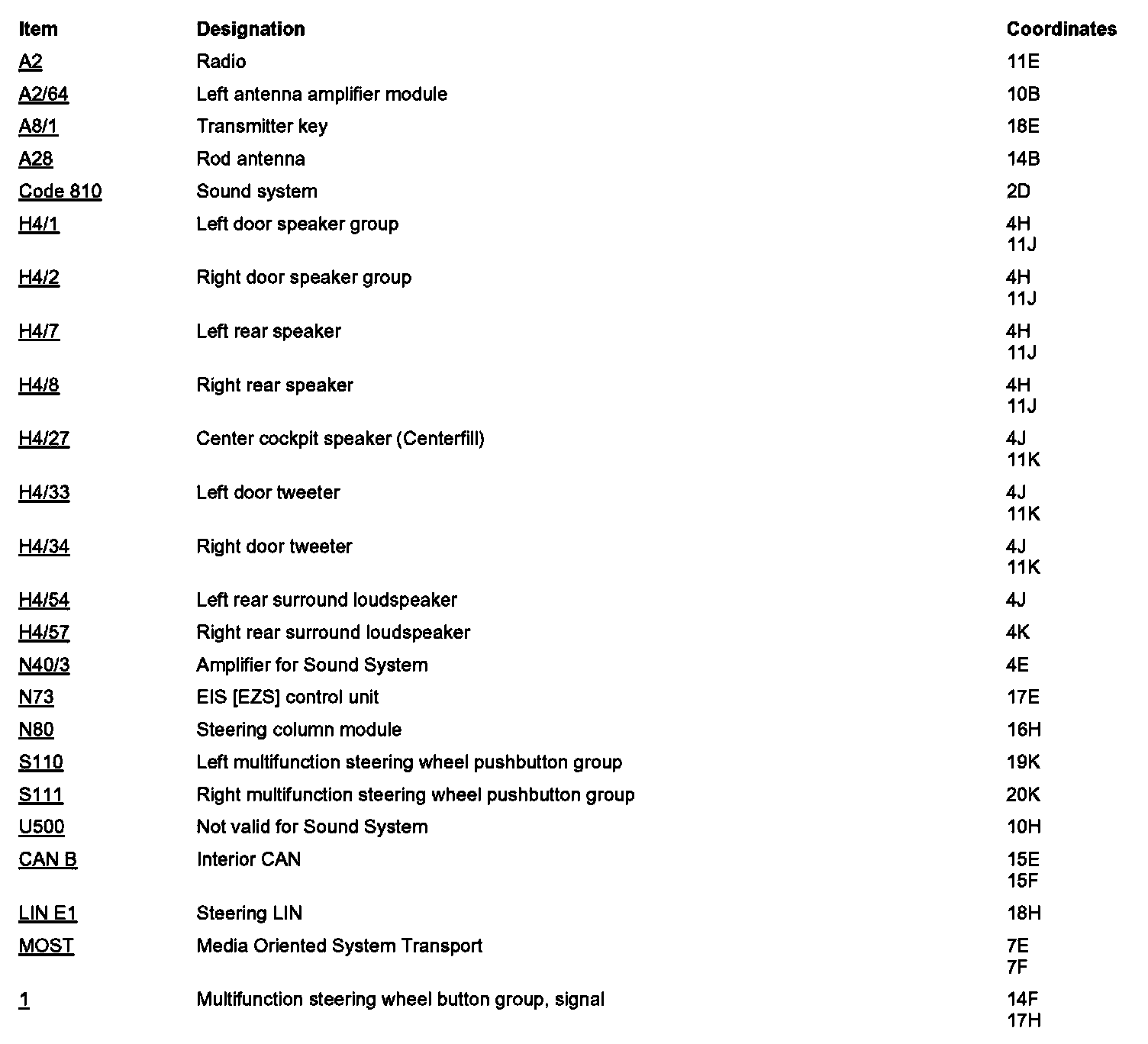

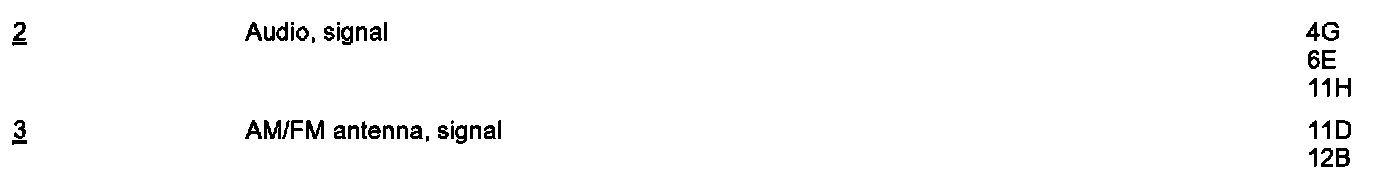

PE82.60-U-2058TA Electrical Function Schematic For Audio Mode, Function



PE82.60-U-2058TA Electrical Function Schematic For Audio Mode, Function
- with CODE (510) Audio 20 with CD changer



















Component Locations: Component Locations photographs can be found via their component names at the vehicle level. Component Locations
