Media Interface Control Unit
Media Interface Control Unit
Media Interface Control Unit

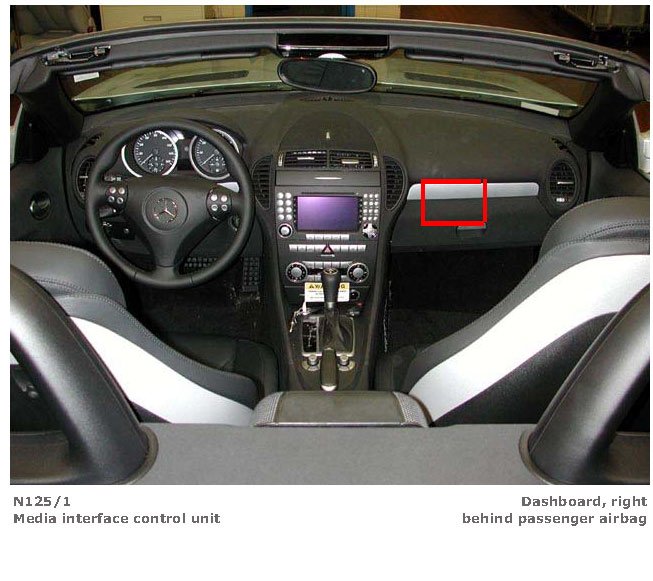

Media Interface Control Unit (View 1):

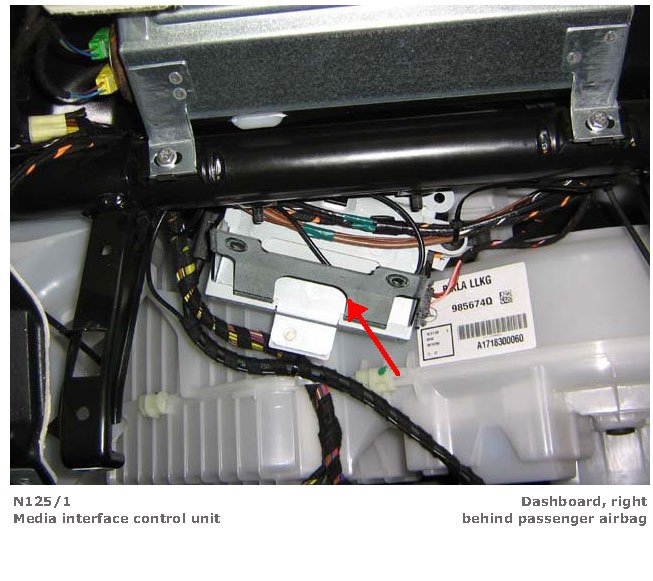

Media Interface Control Unit (View 2):
