Function Diagrams

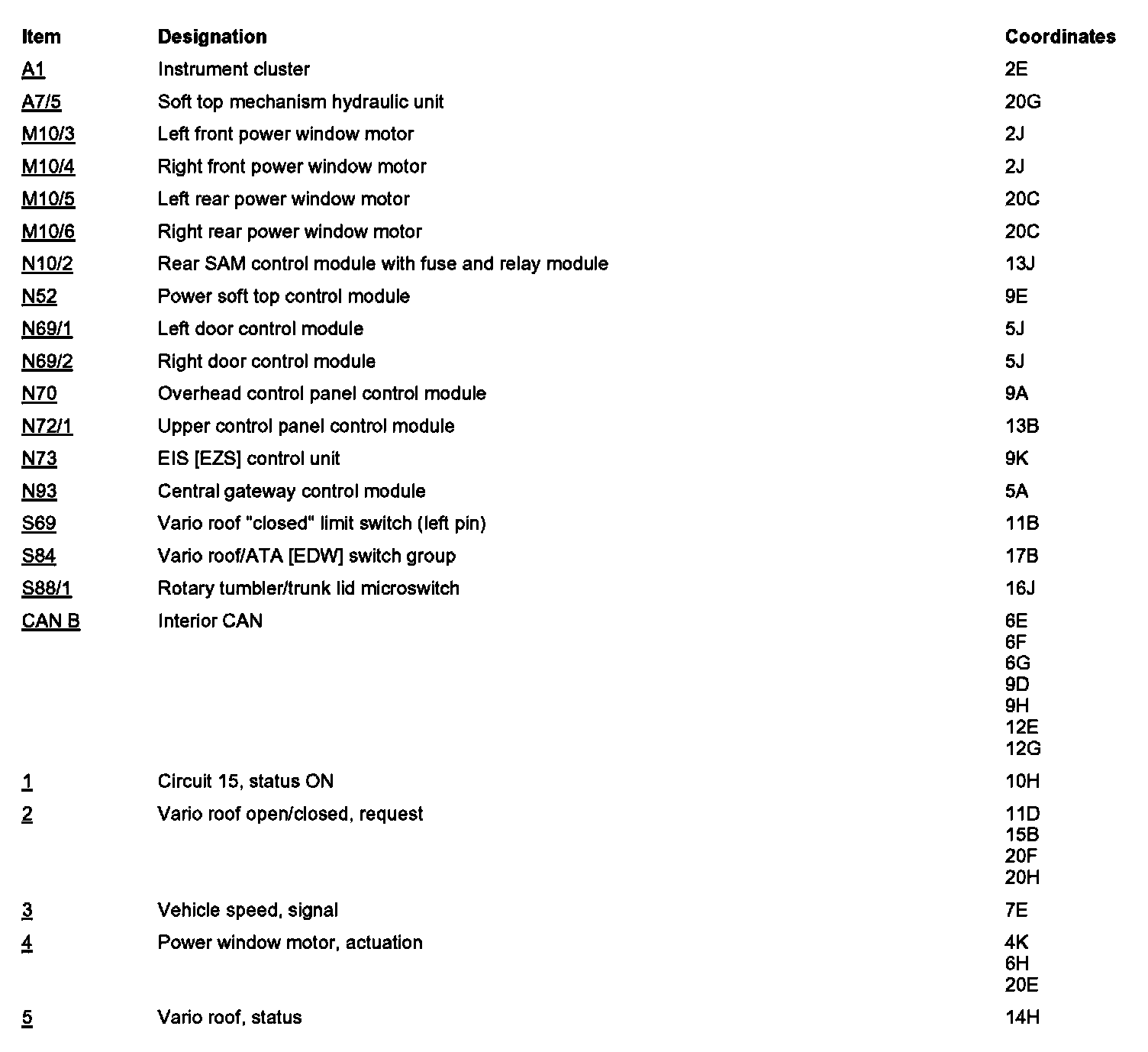

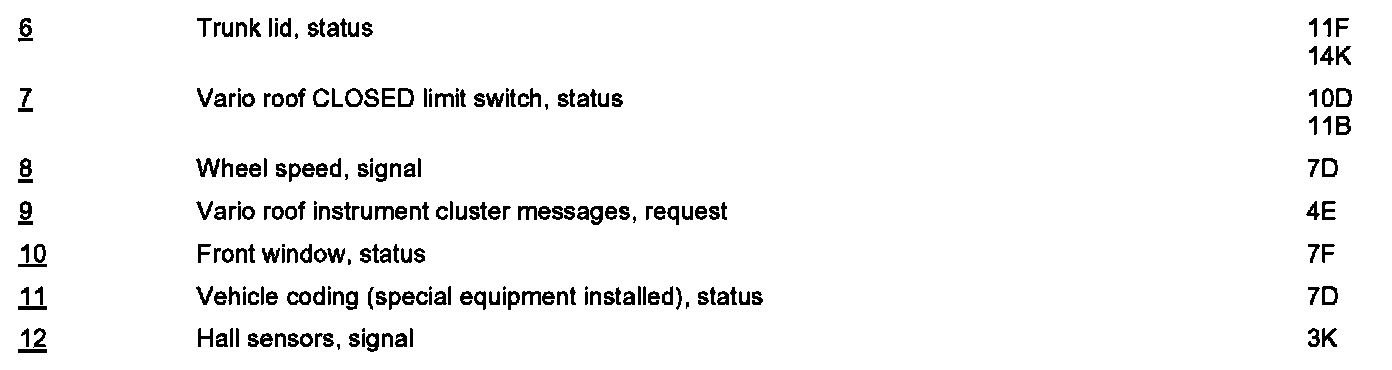

PE77.39-U-2053TA Electrical Function Schematic For Opening/Closing Vario Roof Via Switch



















Component Locations: Component Locations photographs can be found via their component names at the vehicle level. Component Locations
